Wireless Remote Controls
Note that the Pro Logic is compatible with AQL2 wireless remote controls only. A single AQL2-BASE-RF Base
Station must be installed on the Pro Logic in order to use any of the Goldline wireless remote controls. With the
Base Station installed, there is no limit on the number of wireless remotes that can used. The maximum distance
between the wireless remotes and the base station on the Pro Logic main control unit is 400 feet (120m) line of
sight or 200 feet (60m) through walls, etc. If in doubt about the distance, test operation before installing the
remote. All wireless models require the user to run the “Teach Wireless” routine in the Settings Menu. This
information can be found in the Pro Logic Operation Manual and the owner’s manual of each remote.
AQL2-Tx-RF-P-4
The AQL2-Tx-RF-P-4 is a portable battery operated remote control designed to be used in a weather protected
area (rain should never hit the unit). This remote comes with a wall mounted power supply for recharging the built-
in batteries.
AQL2-SS-RF, AQL2-POD
The AQL2-SS-RF and AQL2-POD are waterproof portable remote controls that are designed to be used in and
around the pool/spa area. These units float and can be left in the water for easy access.
Optional Base Station
The AQL2-BASE-RF optional base station must be installed if any wireless remote control is used. To install the
base station, remove the knockout on the upper left side of the Pro Logic main control unit, insert the base station,
and then tighten the nut from the inside. Also refer to the Base Station manual and the diagram on page 18.

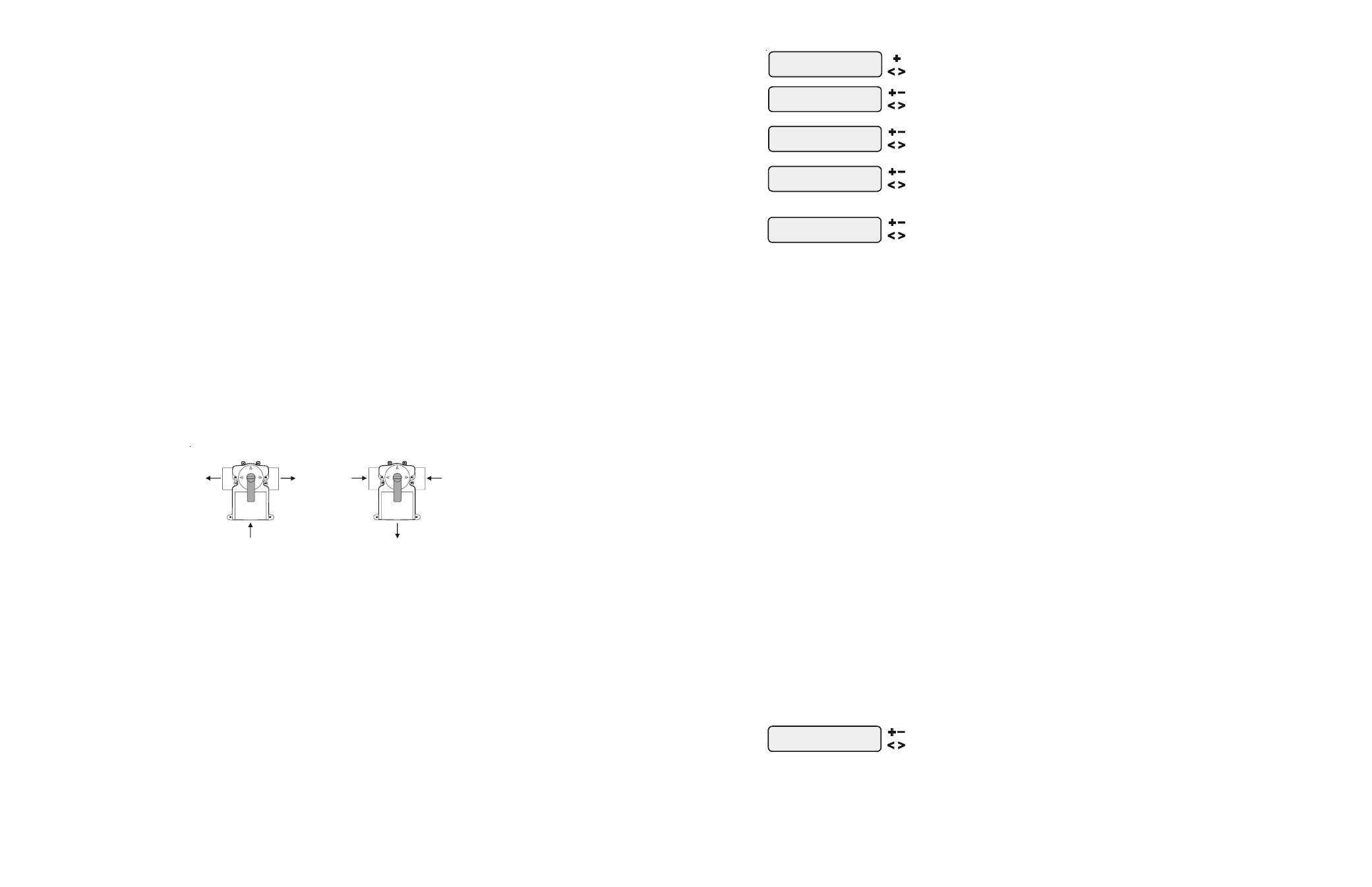

Optional Valve Actuators
For optional actuators used with the Pro Logic—note that the internal cams in the actuator may also have to be
adjusted depending on the way the actuator is mounted on the valve and the desired valve action.
7 24
Solar Config.
+ to view/change
Solar
Disabled
Solar-Extend
Disabled
Solar Priority
Disabled
Push to access solar options
Toggle between Enabled and Disabled (default) Solar
Toggle between Enabled and Disabled (default) Solar Extend
Toggle between Enabled and Disabled (default) Solar Priority
Move to previous/next configuration menu
Move to next menu item or previous/next configuration menu
Move to next menu item
Move to next menu item
if “Solar” is enabled
if “Solar” is enabled
Allow Low Speed
Disabled
Toggle between Enabled and Disabled (default)
Move to next menu item or previous/next configuration menu
if “Solar” is enabled and
“1-speed Filter” is not selected
Solar
If the solar control logic is “Enabled”, several additional steps must be taken to ensure
proper operation of the solar system. If the solar is operated by a valve, then the Valve3
output must be setup for solar logic (page 27). If the solar is operated by a pump, then one
of the AUX relays must be set up for solar logic (page 26). Also, the “solar” temperature
sensor must be installed. This sensor is typically mounted near the collector array and is
used to sense whether sufficient solar heat is available.
If solar is “Enabled”, the valve or solar pump relay will turn on when the water temperature is
less than the desired temperature setting AND the solar sensor is hotter than the water. The
desired temperature is in the “Settings Menu”. If applicable, the homeowner will be prompted
to enter separate pool and spa desired temperature settings. Depending on the position of
the pool/spa suction valve, the proper temperature setting will be used.
Solar Extend
If “Enabled”, the filter extend logic keeps the filter pump running beyond the normal turn-off
time if solar heat is still available. When solar heat is no longer available, both the solar
valve/pump and filter pump will turn off simultaneously. Solar extend will NOT cause the
filter pump to turn on, it will only delay the turn off time when solar is operating.
Solar Priority
If both “Solar Control” and “Heater Control” are enabled, the Solar Priority feature will keep
the conventional heater off whenever solar heat is available. This provides the most cost
effective way of heating the pool. When solar heat is not available, the conventional heater
will operate normally.
Allow Low Speed
This menu only appears if the pool filter is configured for 2-speed or variable speed operation.
During default operation, high speed mode is used whenever the solar heater is on. If Allow
Low Speed is enabled, low speed pump operation will be allowed during solar heating except
for the first 3 minutes after solar heat turns on.
External Input
Active Closed
Toggle between Open and Closed (default)
Move to next menu item or previous/next configuration menu
External Input
The external input device can either be normally open or normally closed. In this menu,
select the state of the external input device when active.
RETURN SUCTION
OUT
(Common)
IN
(Common)
OUT IN OUT IN
