Chapter 2
Installation
Installing PCI Adapter
This chapter covers the installation of the WP01GT Adapter for your
desktop PC. The following sections will assist you with proper installation
of the PCI Adapter, and also with installing the necessary drivers and
utilities.
Hardware Installation
You will need a Phillips head screwdriver to perform the installation as
described below:
Step 1: Power OFF your PC.
Step 2: Plug the PCI Adapter into an open PCI slot on the motherboard by
pressing the card gently until the card edge connector is completely and
firmly inserted into your motherboards PCI slot.

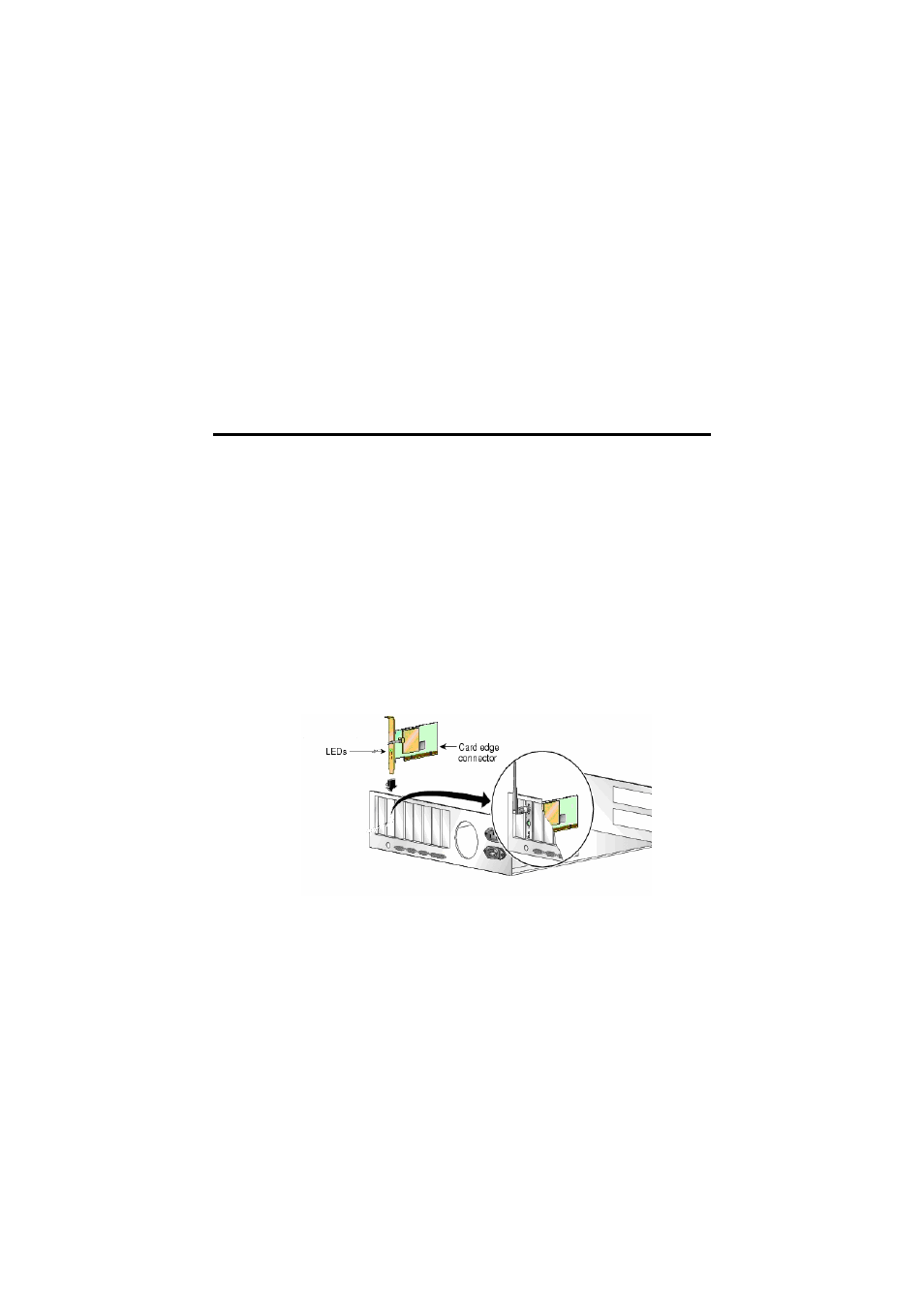

Figure 2. Insert your PCI Adapter
Step 3: Once inserted, attaché the antenna on the mount of the PCI
Adapter by screwing it on clockwise as shown in the figure below.
