GarrettCom Magnum 10Mb/s User Manual

Page 45

Magnum 10Mb Media Converters

Installation and User Guide (07/98)

GARRETT

4.5

Up-Link (Cross-over) Switch

Magnum Media Converters are equipped with an up-link slide switch on the

RJ-45 port to accommodate repeater-to-converter and switch-to-converter connections

without a special cross-over cable.

4.5.1

Up-Link (Cross-over) Switch

When set to the UP position (=), the

Magnum Media Converter is wired for normal

twisted-pair connection to a user node device. When

set to the DOWN position (X), the Media Converter

is wired with cross-over functionality for direct up-link to a network hub or concentrator.

Switch ports may be of either polarity, and this feature is most convenient with switches..

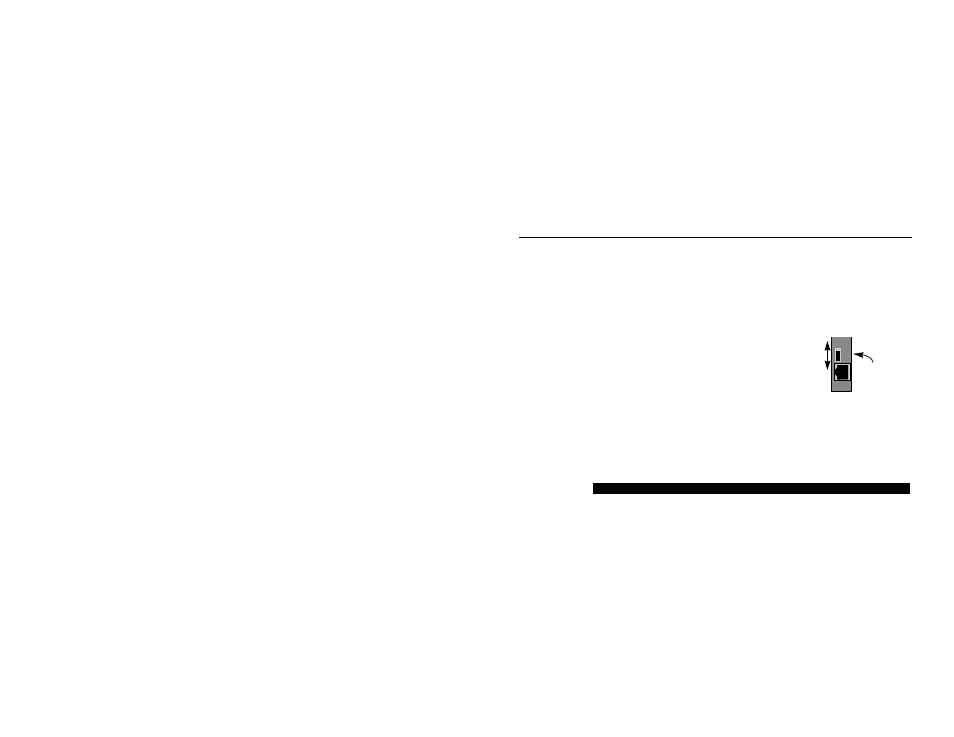

End view, TP port

Up-link

Switch

up-link (X)

user device (=)
