MAKING ELECTRICAL CONNECTIONS (cont.)
9
Installation Instructions
• Connect the switchbox AC Input Connector to the
refrigerator’s AC Input connector.
• Connect the switchbox AC Output Connector to the
refrigerator’s AC Output connector.
• Locate the refrigerator’s DC Input and Output
connectors to the left of the compressor.
• Disconnect the refrigerator’s DC Input and Output
from each other.
• Connect the switchbox DC Input Connector to the
refrigerator’s DC Input connector.
• Connect the switchbox DC Output Connector to the
refrigerator’s DC Output connector.

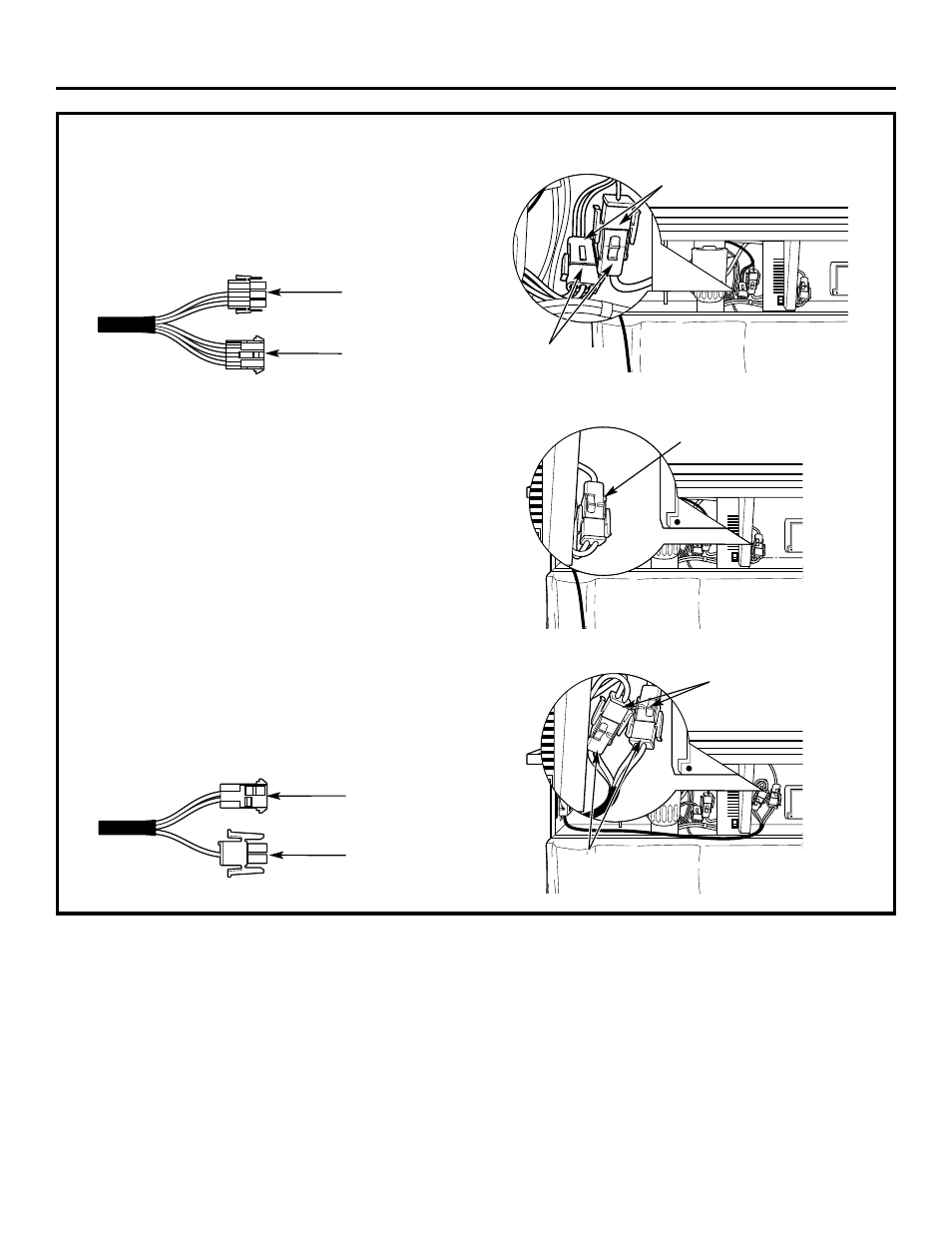

Refrigerator DC
Connectors
Refrigerator DC
Connectors
Kit DC
Connectors
Kit AC
Connectors
Refrigerator AC
Connectors
Kit AC Output
Connector
(3 prongs)
Kit AC Input
Connector
(3 holes)
Kit DC Output
Connector
(2 prongs)
Kit DC Input
Connector
(2 holes)
