MOUNT SWITCHBOX
• FOR PERSONAL SAFETY: Unplug the refrigerator,
remove house fuse or open circuit breaker before
beginning installation.
• Open the grille panel.
• Place a sheet or towel over the top of the fresh food
and freezer doors to prevent accidentally scratching
the door panels.
• Place the switchbox against the evaporator housing to
the left of the main control board cover (on 36” and 42”
models) or to the right of the main control board cover
(on 48” models). Make sure the green LED light on the
side of the switchbox is pointing DOWN.
• Mount the switchbox to the evaporator housing
using the two self-tapping screws included with
the kit.
IMPORTANT: DO NOT DRILL HOLES IN THE
EVAPORATOR HOUSING. USE THE SELF-TAPPING
SCREWS SUPPLIED WITH THE KIT.
If desired, the top of the switchbox can be mounted
using a screw from one of the plastic wire straps at
the top of the evaporator housing.
5
Installation Instructions
36” & 42” Models
48” Model Shown
48” Models

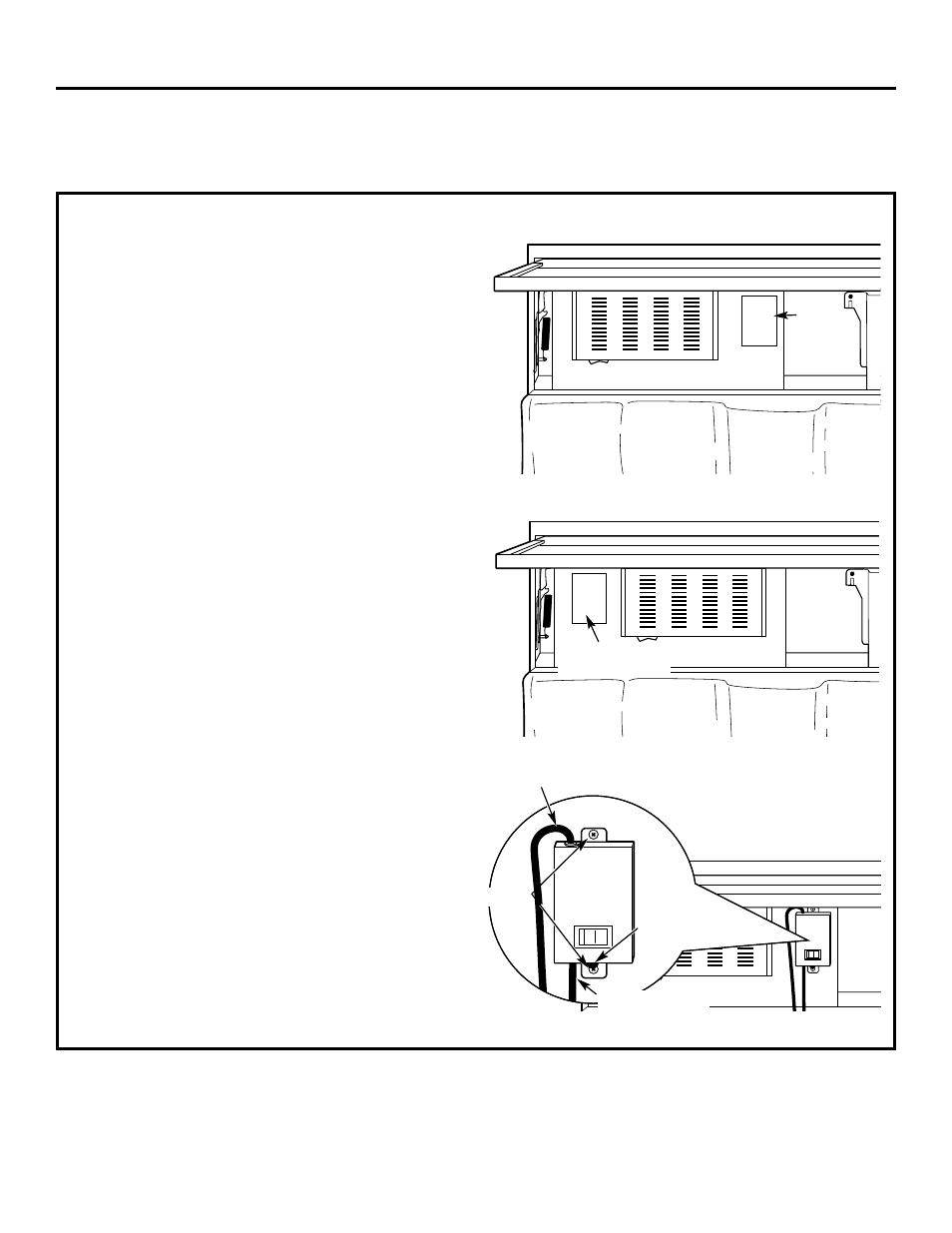

INSTALLING SABBATH MODE SWITCHBOX
Side-by-Side Refrigerators
Sabbath Switchbox
Mounting Location
Sabbath
Switchbox
Mounting
Location
Screws
AC Connector Wire
DC Connector Wire
Green LED Light
