OPERATION CHECKLIST
With the Sabbath Switch set to OFF:
With the Sabbath Switch set to ON:

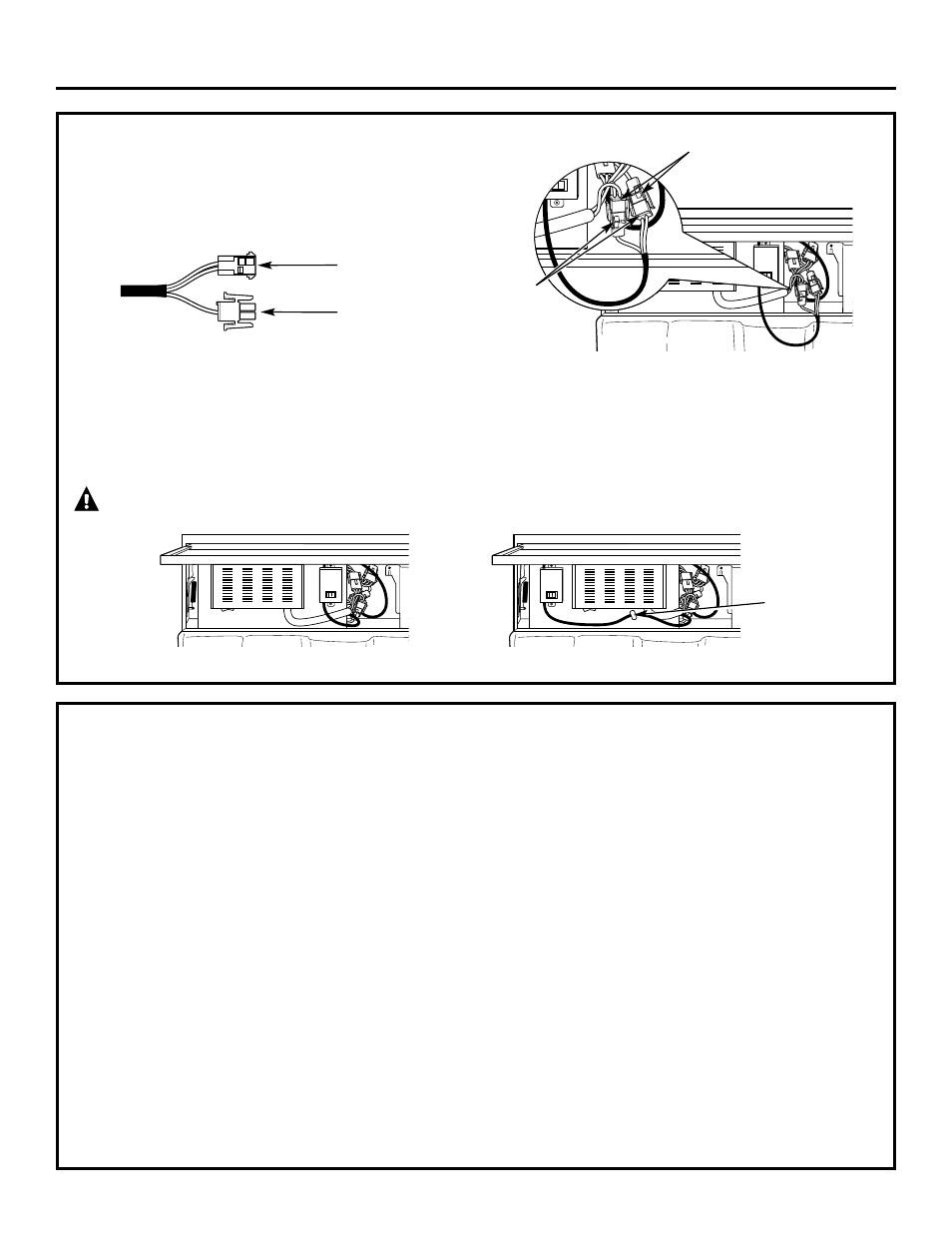

MAKING ELECTRICAL CONNECTIONS
• Connect the switchbox DC Input Connector to the
refrigerator’s DC Input connector.
• Connect the switchbox DC Output Connector to
the refrigerator’s DC Output connector.
• Route the switchbox wires through the wire straps
already attached to the evaporator housing. Arrange
the connectors as far back in the refrigerator as
possible. If necessary, use the wire ties included
with the kit to dress the wires.
• Cover any exposed wiring on the refrigerator
connectors with UL approved electrical tape.
WARNING:
No wires are to be exposed.
• Write the installation date on the ZSAB1 switchbox.
• Place the Sabbath Mode Product Kit Technical Data
Sheet with the refrigerator’s Technical Data Sheet
for future use.
• Close grille panel.
• Replace house fuses or reset circuit breaker.
7
Installation Instructions
48” Models 36” & 42” Models
48” Model Shown
Wire
Strap
Make sure the green LED light is on.
Open the fresh food and freezer doors to make sure
the lights do not come on and the temperature and
Climate Control Drawer displays do not come on.
Press the temperature and Climate Control Drawer
controls to make sure they do not light up or beep.
Try to dispense water or ice from the dispenser.
Ice or water should not dispense.
Press the dispenser controls to make sure they
do not light up.
Listen to make sure the compressor is running.
Confirm that the kit wires are properly routed and that
no AC wires are exposed at the unit connector side. Use
UL approved electrical tape to cover wires completely.
Confirm that the Sabbath Mode Product Kit Technical
Data Sheet has been placed with the refrigerator’s
Technical Data Sheet for future use.
Confirm that the installation date has been written
on the ZSAB1 switchbox.
Leave the Installation Instructions with the consumer
for future use.
Make sure the green LED light is off.
Make sure the dispenser is operating normally.
Listen to make sure the compressor is running. Open the fresh food and freezer doors and confirm
that the interior lights, the temperature display and
the Climate Control Drawer all operate normally.
If the interior lights do not come on, the Master Light
Switch may have been accidentally set to the OFF
position. Make sure the Master Light Switch is in
the ON position.
Refrigerator DC Connectors
Kit DC
Connectors
Kit DC Output
Connector
(2 prongs)
Kit DC Input
Connector
(2 holes)
