-6-

G0492 12" X 36" Combo Lathe/Mill

G0492 12" X 36" Combo Lathe/Mill.

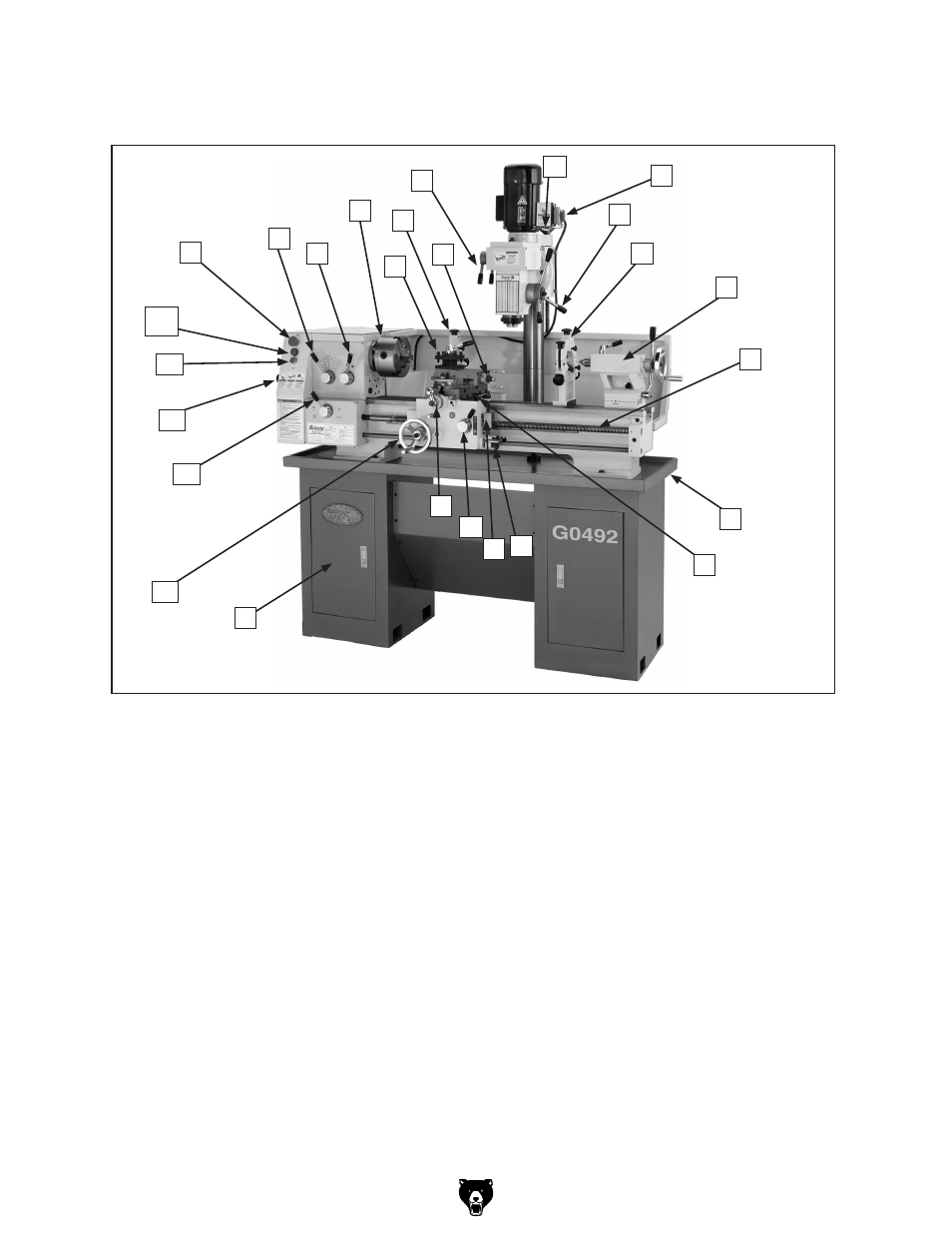

Identification

P. Chip Tray and Drip Pan

Q. Longitudinal and Cross slide Lever

R. Spindle ON/OFF Rotation Lever

S. Thread Dial

T. Half Nut Lever

U. Cross Slide Handle

V. Manual Feed Hand Wheel

W. Storage Cabinet

X. Lead Screw Direction Lever

Y. Side Cover

Z. Jog Button

AA. Power Lamp

A. Lathe Emergency Stop Button

B. Spindle Speed Lever

C. Spindle Range Lever

D. 3-Jaw Chuck

E. Four-Way Tool Post

F. Follow Rest

G. Milling Speed Levers

H. Compound Rest

I. Elevation Handwheel

J. Mill Power/Emergency Stop Button

K. Milling Rack Handles

L. Steady Rest

M. Tailstock

N. Lead Screw

AA

F

G

L

D

J

E

K

B

M

N

T

P

A

C

H

Y

V

X

Z

U

R

S

I

Q

W
