GA-K8U-939 Motherboard - 26 -
English

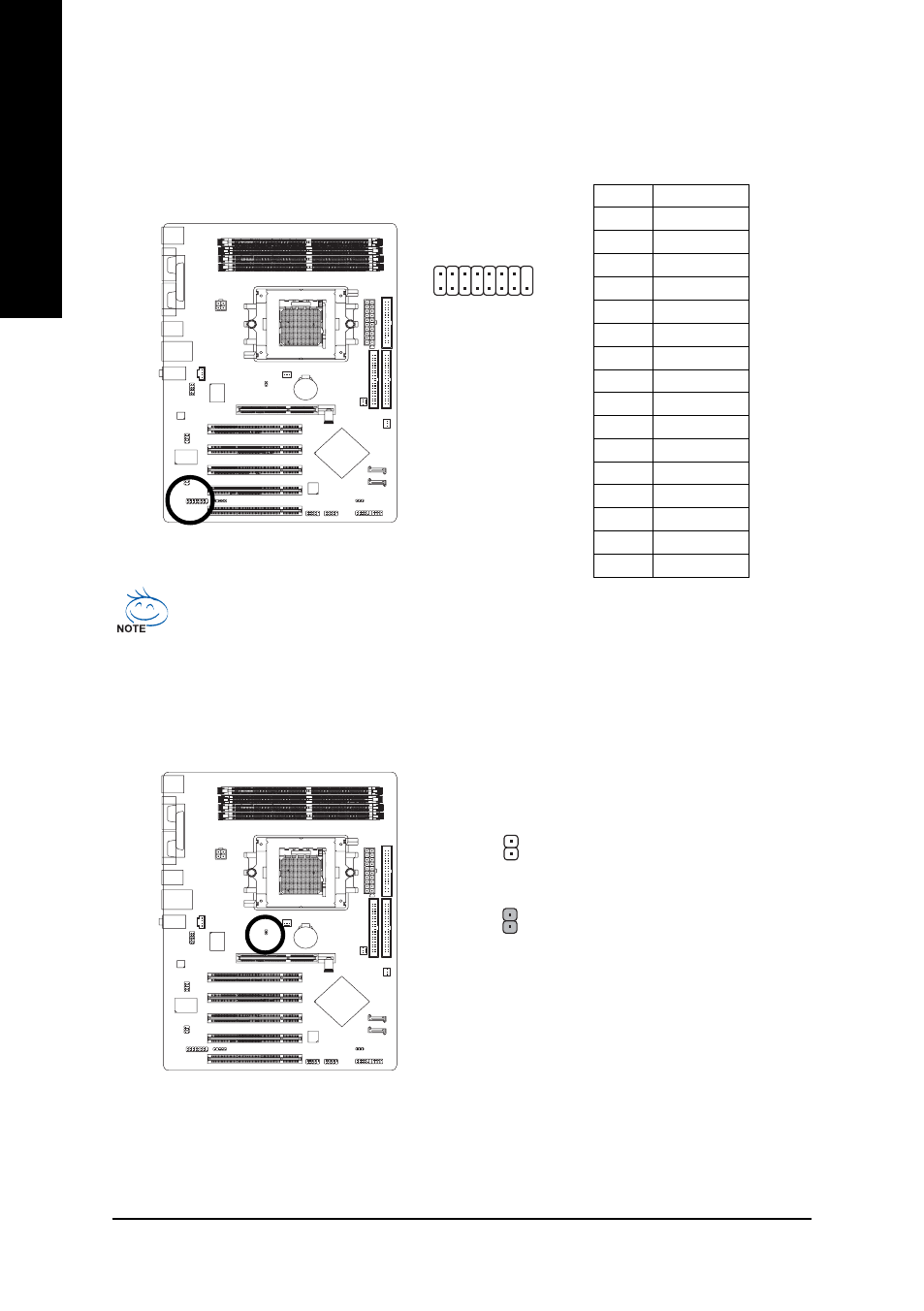

19) CLR_CMOS (Clear CMOS)
You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short
1-2 pin. Default doesn't include the "Shunter" to prevent from improper use this jumper.
Open: Normal
Short: Clear CMOS 1
1
18) GAME (Game Connector)
This connector supports joystick, MIDI keyboard and other relate audio devices. Check the pin
assignment while you connect the game cables. Please contact your nearest dealer for optional game
cables.
Pin No. Definition
1 Power
2 GRX1_R
3 GND
4 GPSA2
5 Power
6 GPX2_R
7 GPY2_R
8 MSI_R
9 GPSA1
10 GND
11 GPY1_R
12 Power
13 GPSB1
14 MSO_R
15 GPSB2
16 No Pin
2 16
1
15
If you want to use a force feedback joystick, go to Midi Port Address under the Integrated
Peripherals menu in BIOS Setup to specify the base I/O address.
