-4-
t10024 Wet grinder accessory Kit #2
To assemble the jig for hollow chisels:
1. Completely disassemble the chisel sharpen-
ing jig as shown in Figure 5.
2. re-assemble the jig as shown in Figure 9.

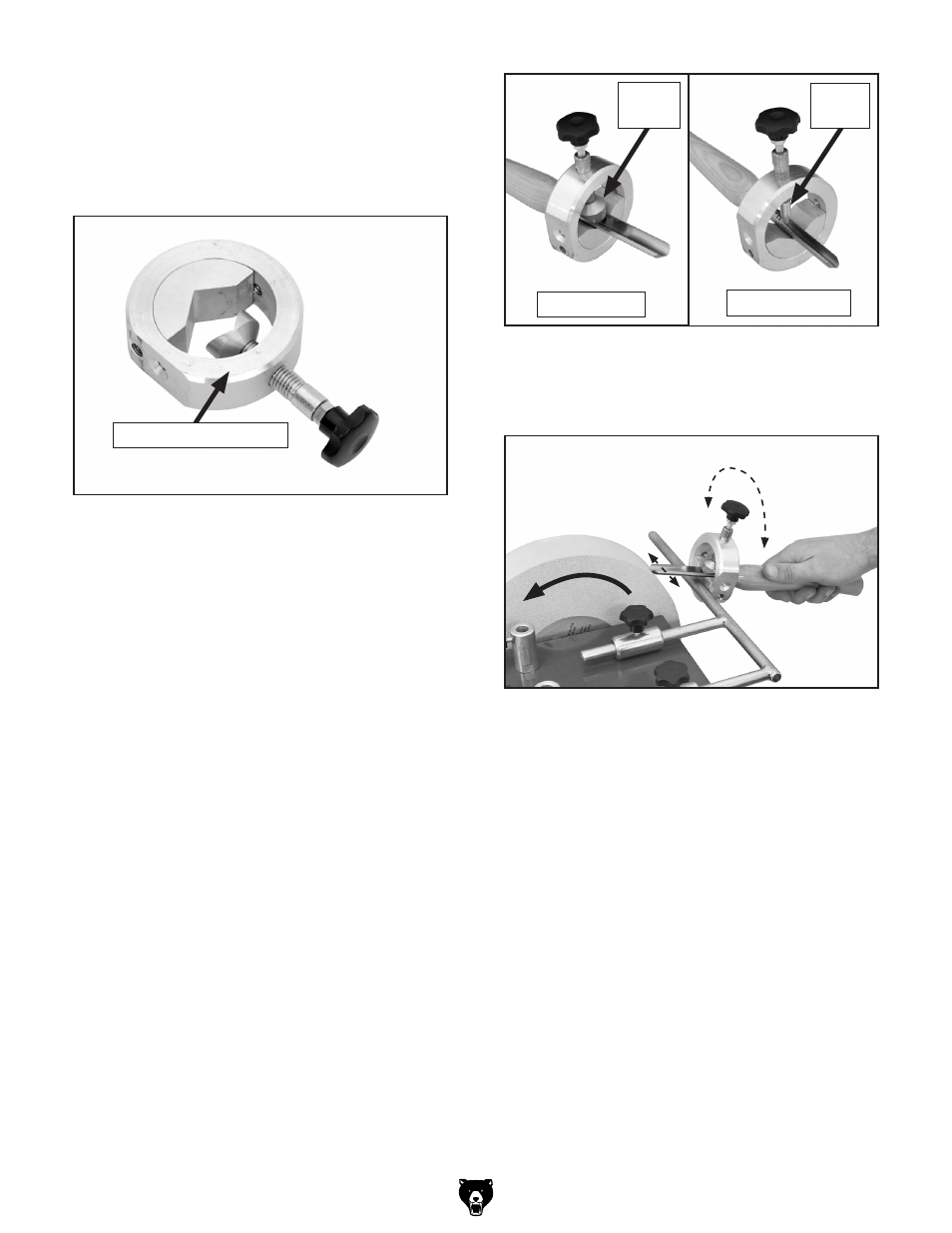

Figure 9. hollow chisel jig assembly.
Chisel sharpening Jig
To sharpen hollow chisels:
1. disCoNNeCt griNder From poWer!
2. place the universal support in either the verti-
cal or horizontal mounts, depending on the
desired grinding action as described in the
model t10010/t10097 owner's manual.
Figure 10. Clamping hollow chisels.
Figure 11. grinding hollow chisels.
3. Clamp the chisel (bevel-side down) into the
jig, as shown in Figure 10. No single clamp-
ing method works best for all chisels and only
trial-and-error with each specific tool will give
the best clamping orientation.
Tip: For narrow chisels, use the chisel pin to
secure the chisel, as shown in
Figure 10.
4. place the assembled jig onto the universal
support, as shown in Figure 11.
5. adjust the grinding angle by sliding the uni-
versal support and repositioning the chisel in
the jig. once the desired angle is achieved, lift
the chisel away from the grinding wheel, then
connect the grinder to power and turn it ON.
6. return the chisel onto the surface of the
wheel. use a firm grip on the chisel, but do not
use heavy pressure against the wheel. rotate
the chisel to grind the entire edge.
Wide Chisels Narrow Chisels
Chisel
Clamp
Chisel
pin
