Model G0654 (Mfg. Since 9/07)
-17-
Note: Thread the M6-1 x 12 flange bolts from
the inside of the dust chute (see Figure 12).

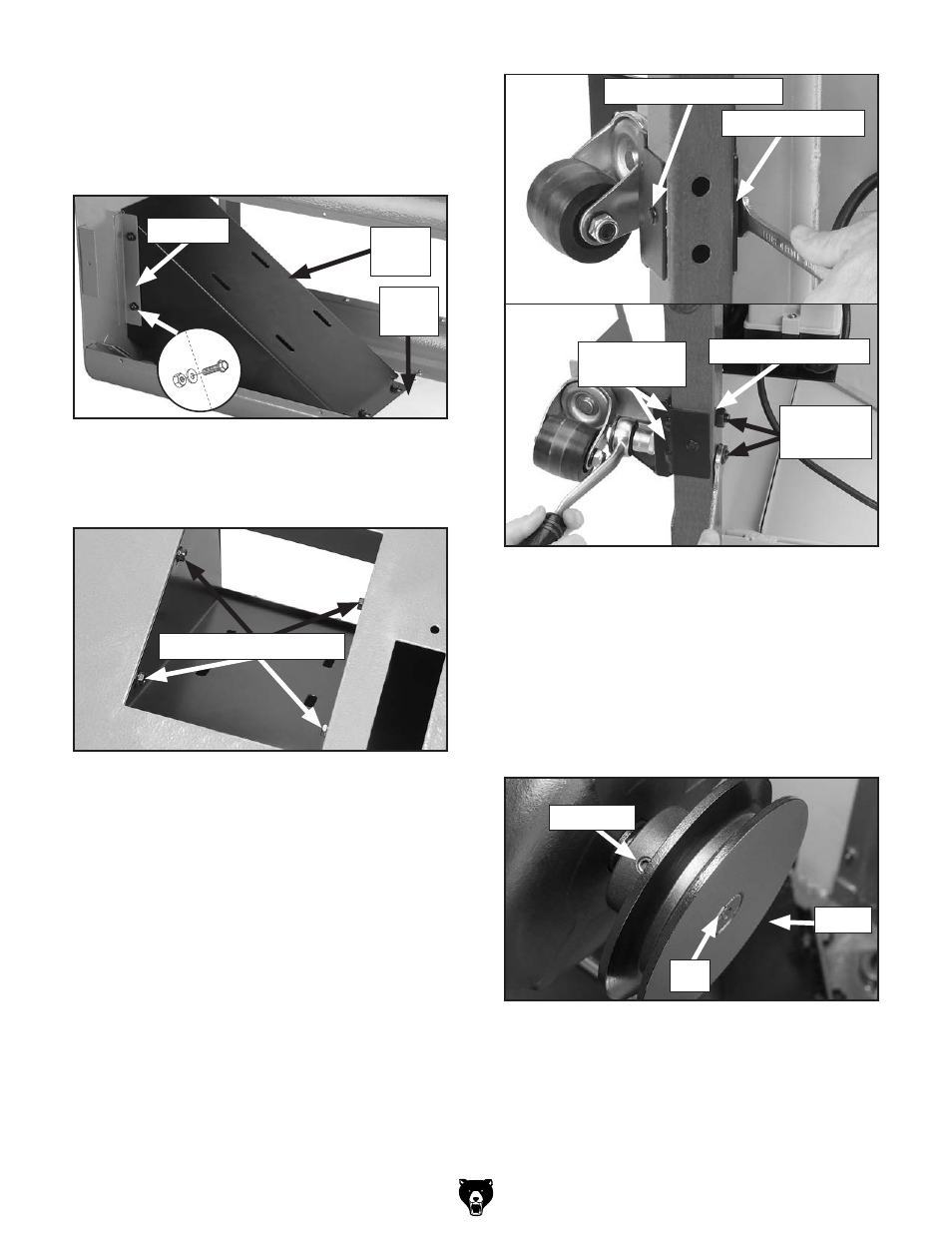

figure 12. dust chute installed (interior view).
m6-1 x 12 Flange Bolts
figure 13. example of bolting the wheel
assembly to the stand.
hex Bolt m8-1.25 x 50
Flat Washer 8mm
hex nuts
m10-1.5
Flat Washers 10mm
7. Back off the set screws on the motor pulley
and align the shaft key with the pulley key-
way.
8. slide the pulley onto the motor shaft so the
pulley is flush with the shaft end, then tighten
the set screws, as shown in
figure 14.
figure 14. motor pulley installed.
set screw
pulley
Key
5. Carefully place the cabinet on its left side,
and secure the dust chute to the top plate
flanges and left panel with (6) m6-1 x 12
flange bolts, 6mm flat washers, and m6-1 hex
nuts (
figures 11 & 12).
figure 11. dust chute installed.
left
panel
dust
Chute
x 6
top plate
6. With the cabinet still placed on its left side,
bolt the wheel assembly to the stand with the
provided hardware, as shown in
figure 13.
Note: Refer to the Inventory List on Page 12
for a list of components needed for assembly.
x 6 hex Bolts
m10-1.5 x 55
