224 PMCS Interface Toolkit

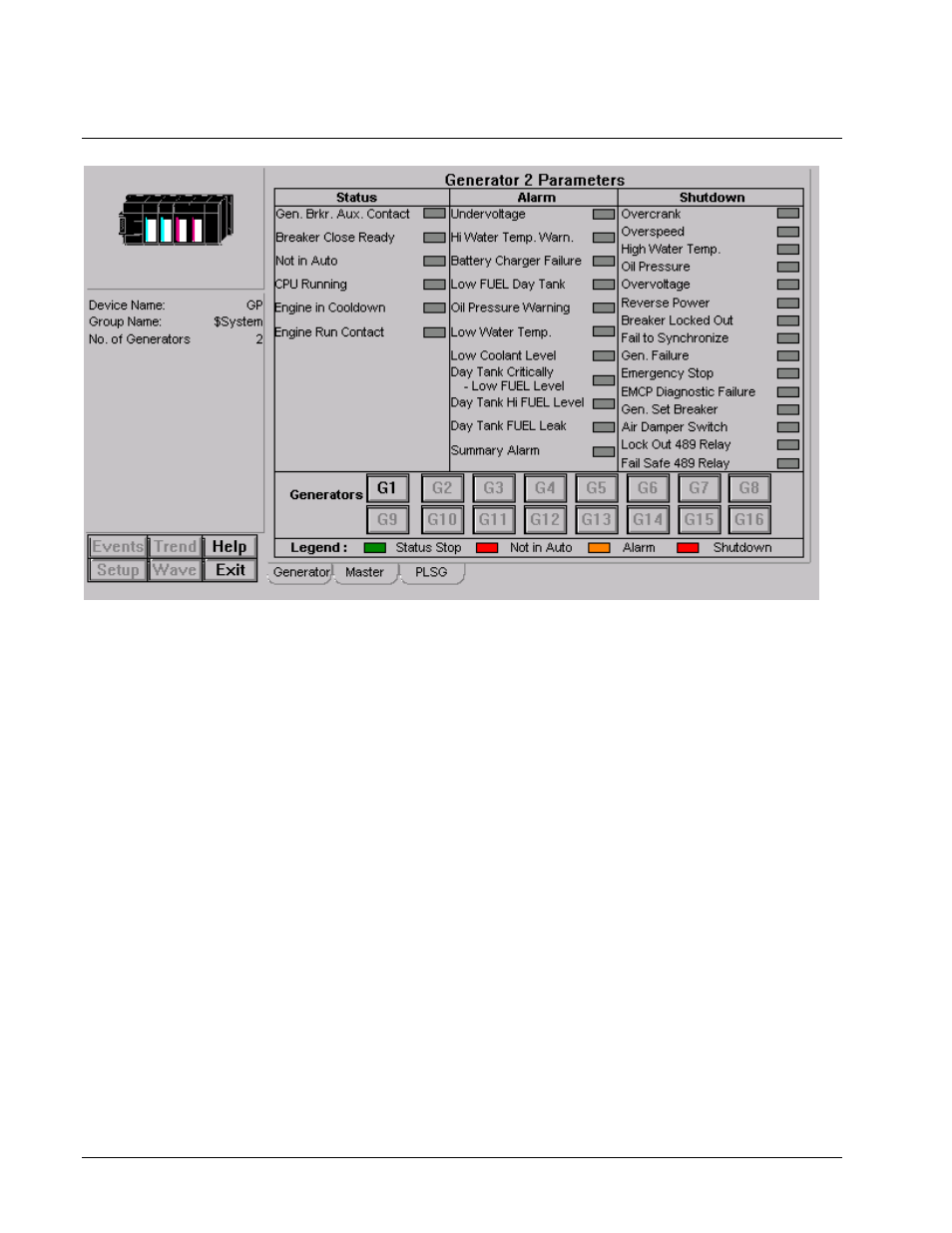

Generator Tab
This tab displays generator parameters for 16 generators represented as G1 to G16 (buttons). When a button is clicked,
the parameters of that generator are displayed on the screen. The parameters are:
Status
• Gen Brkr Aux Contact
• Breaker Close Ready
• Not in Auto
• CPU Running
• Engine in Cooldown
• Engine Run Contact
If a generator is running, the status is displayed in gray and if it is Status Stop, it is displayed as green. The status Not In
Auto is displayed in red.
Alarm
• Undervoltage
• Hi Water Temp Warn
• Battery Charger Failure
• Low Fuel Day Tank
• Oil Pressure Warning
• Low Water Temp
• Low Water Level
• Day Tank Critically – Low Fuel Level
• Day Tank Hi Fuel Level
• Day Tank Fuel Leak
• Summary Alarm
