Exploded Views / Part Numbers
To Injection Pump
(Model 04270 & 04614)
Tank (Return)
11
To Fuel
1
19
7
18
To Fuel Pump
2
5
3
6
5
18
16
15
16
16
13
14
17
10
14
17
4
5
14
9
10
6
8

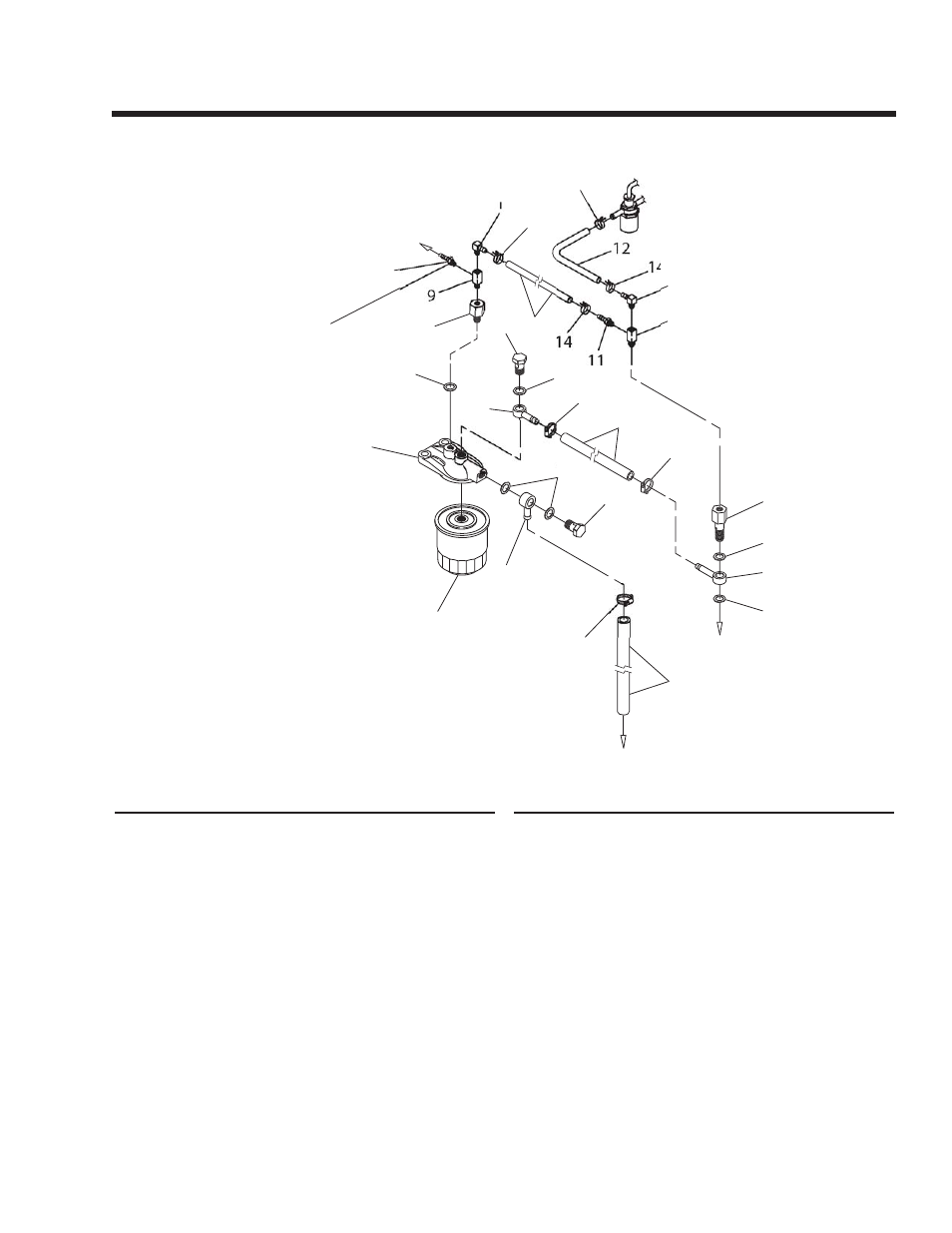

1.0 Liter Diesel Fuel Supply – Drawing No. 075693-C
ITEM QTY.
DESCRIPTION
1
1
FUEL FILTER SUPPORT
2
1
FUEL FILTER
3
AR
HOSE, 5/16" SAE 30R7
4
250MM
HOSE, 5/16" SAE 30R7
5
3
HOSE CLAMP
6
2
GASKET
7
1
BANJO FITTING
8
1
FUEL BLEED FITTING
9
2
1/8" NPT TEE (BRASS)
10
2
1/8" NPT x 3/16" 90 DEG. BARBED
FITTING
ITEM QTY.
DESCRIPTION
11
2 *
1/8" NPT x 3/16" BARBED STRAIGHT
FITTING
12
275MM
HOSE, 3/16" SAE 30R2
13
240MM
HOSE, 3/16" SAE 30R2
14
4
HOSE CLAMP
15
1
FUEL BLEED FITTING
16
5
FUEL BLEED GASKET
17
2
HOLLOW BOLT
18
2
BANJO FITTING
19
1
1/8" NPT x 1/4" BARBED STRAIGHT
FITTING (MODEL 04270 & 04614)
* -QTY 1 (MODEL 04270 & 04614)
AR - AS REQUIRED
