Controls – Grizzly H3253 User Manual
Page 8

Model H3253, H3254, H3255 Spray Gun
-8
-
1. Fluid Control: Controls the volume of
material that travels through the fluid
tip.
2. Pattern Control: Adjusts the spray
pattern from a round pattern to a wide
fan. Not available on H3254.
3. Air Flow Control: Controls the fluid
pressure inside the spray gun (H3255
only).
4. Atomizing Cap: Controls the spray
pattern from vertical to horizontal.
5. Trigger: Two stage trigger. Stage
one only releases compressed air for
blowing off the work piece. Stage two
sprays material.

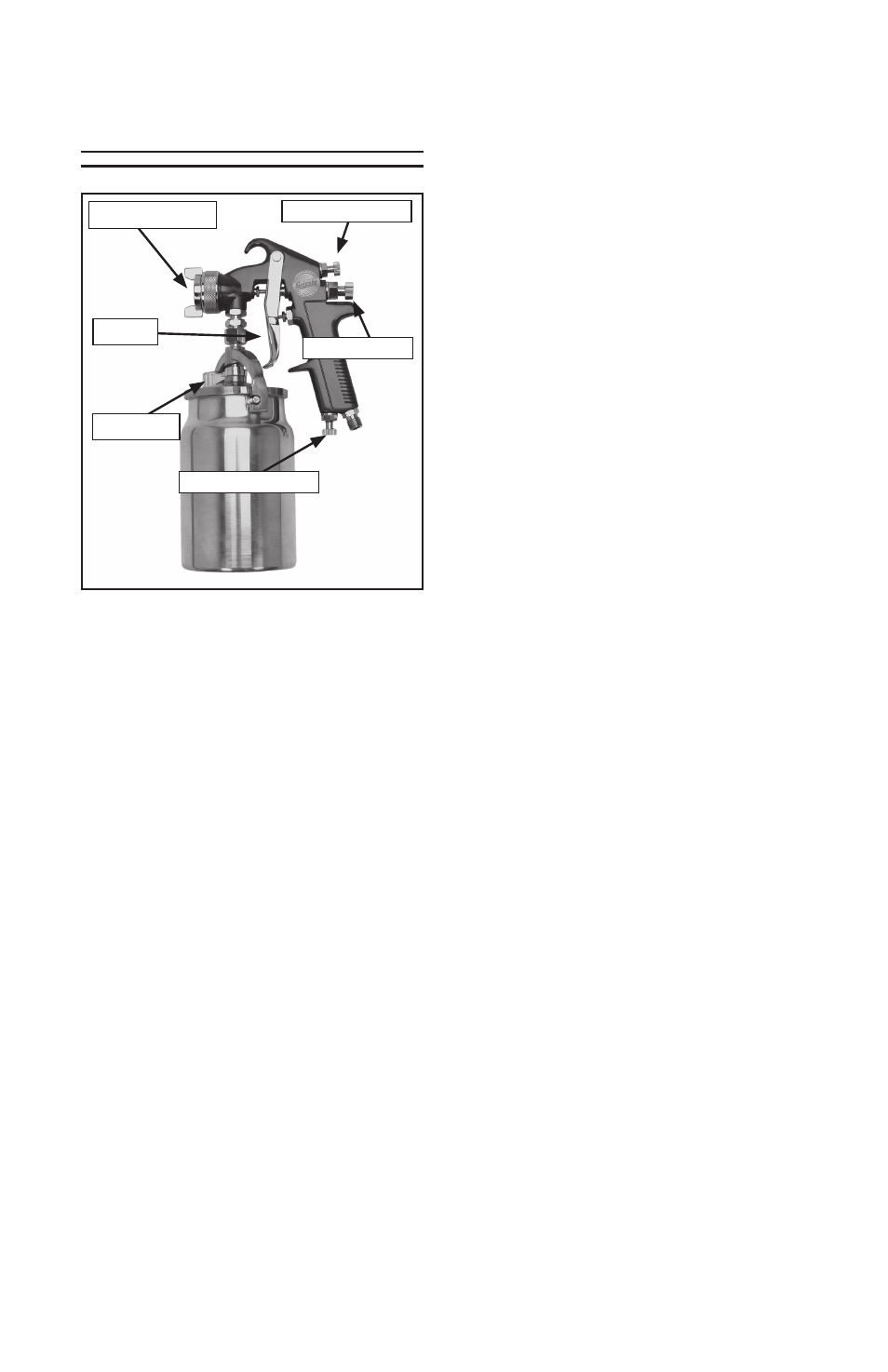

Figure 6. Controls.
Pattern Control
Atomizing Cap
Trigger
Controls
Air Flow Control
Fluid Control
Cup Lock
