Model H3253, H3254, H3255 Spray Gun

-18

-

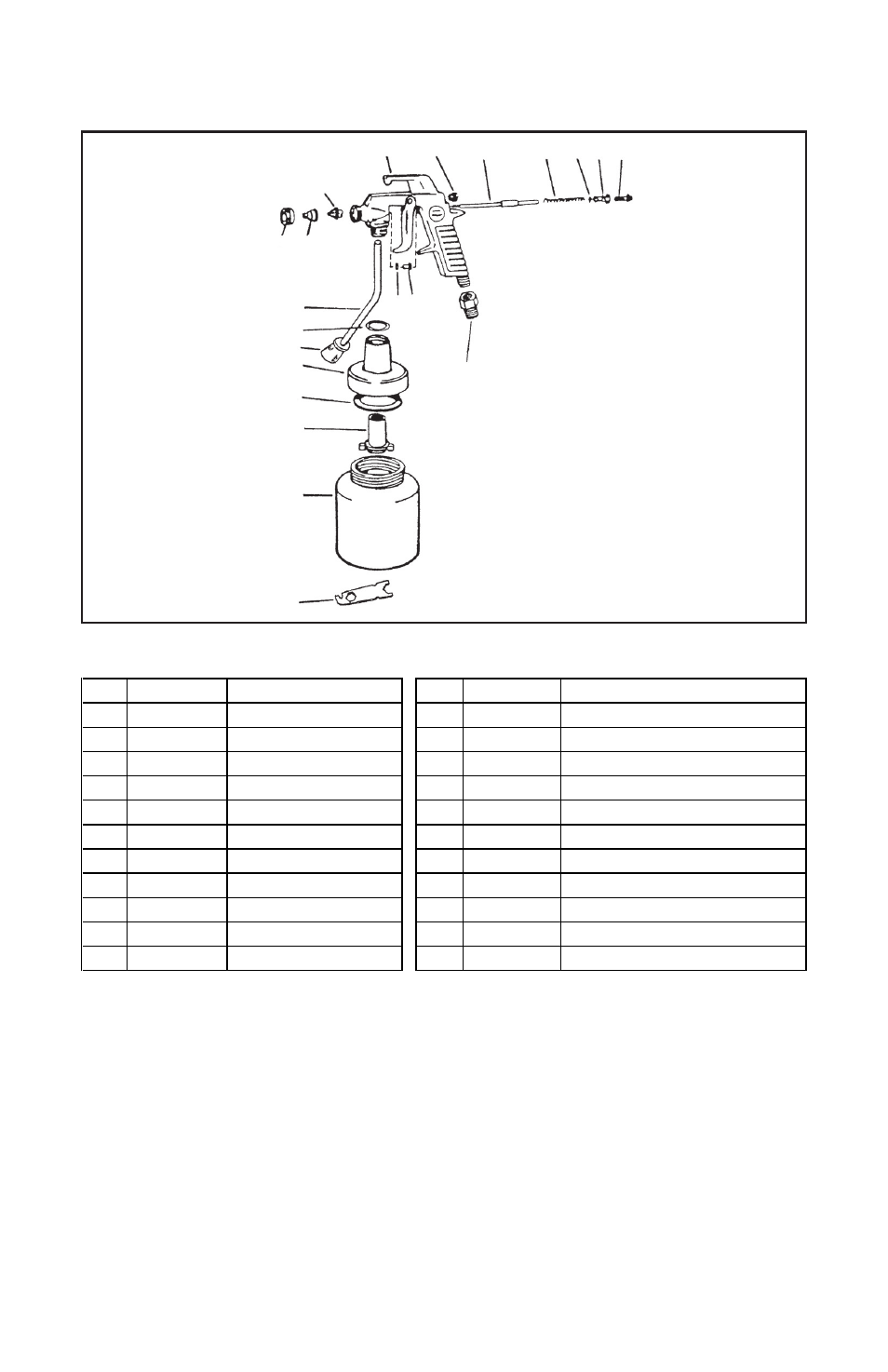

Parts Breakdown H3254

�

�

�

�

�

�

� ��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

1

PH3254001 RING NUT

13

PH3254013 LIQUID NOZZLE

2

PH3254002 FAN NOZZLE

14

PH3254014 O-RING

3

PH3254003 ROUND NOZZLE

15

PH3254015 CUP COVER

4

PH3254004 ANGLE NOZZLE

16

PH3254016 CUP COVER NUT

5

PH3254005 CUP COVER GASKET

17

PH3254017 FEED TUBE

6

PH3254006 CUP

18

PH3254018 TRIGGER ADJ. SCREW

7

PH3254007 AIR BYPASS VALVE

19

PH3254019 GUN FRAME & TRIGGER ASSY.

8

PH3254008 PLUG

20

PH3254020 NEEDLE PIN ASSY.

9

PH3254009 NEEDLE PIN SPRING

21

PH3254021 PAINT STRAINER

10

PH3254010 FRICTION WASHER

22

PH3254022 SERVICE WRENCH

11

PH3254011 PACKING SCREW

23

PH3254023 HOSE FITTING

12

PH3254012 PACKING

24*

PH3254024 CLEANING BRUSH

*Not shown in parts breakdown
