Model G0705 (Mfg. since 09/09)
-21-
assembly
assembly of the Model g0705 consists of attach-
ing the three handwheel handles to the machine.
to assemble your machine:
1. use one M6-1 x 16 cap screw and 6mm flat
washer to install each handwheel in the loca-
tions shown in
figure 20.

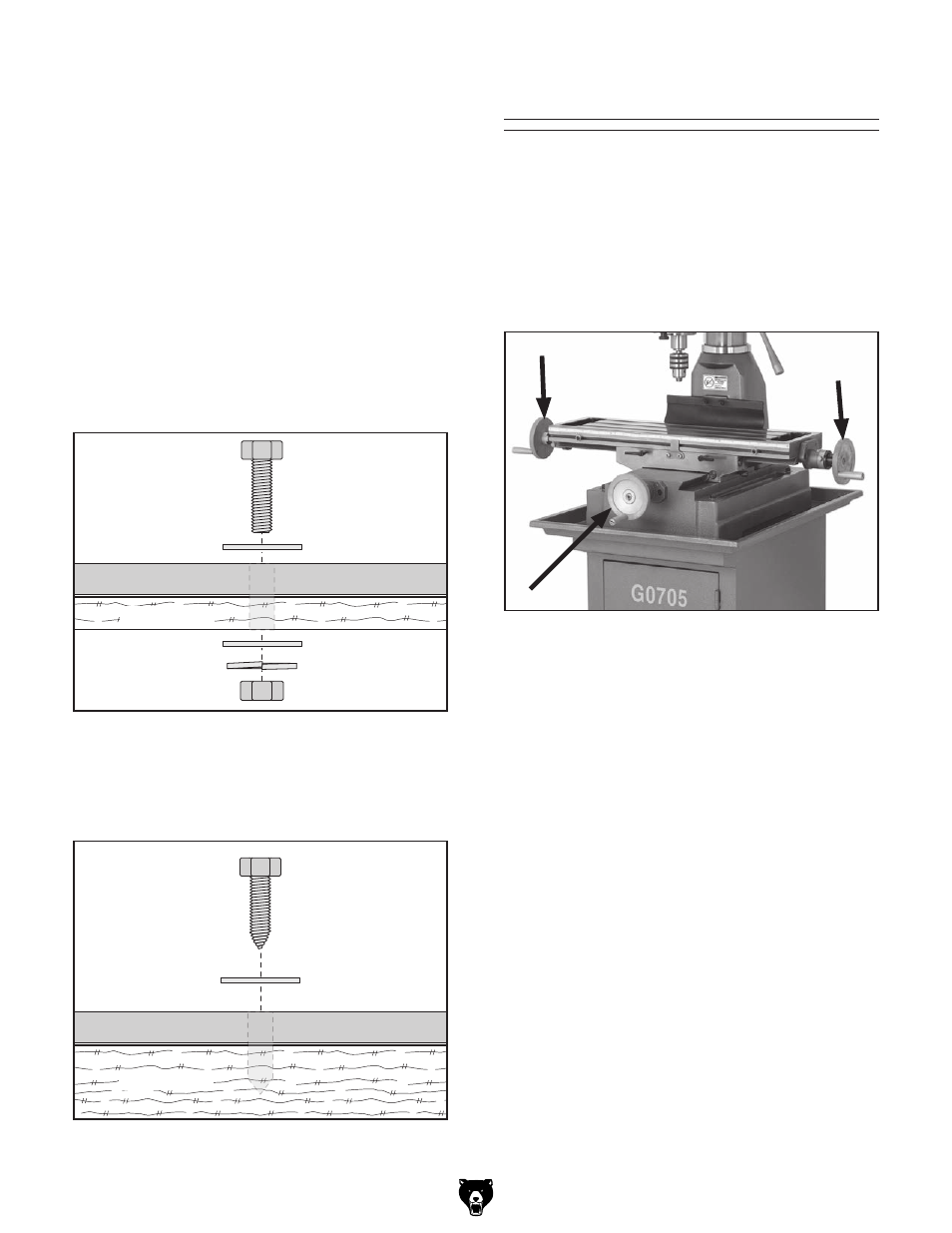

figure 20. Table handwheel handles.
mounting to a Workbench
if you are placing the machine on an existing
workbench, it must be securely attached to the
workbench.
figure 19. example of a "direct Mount" setup.
Machine Base
Workbench
Lag Screw
Flat Washer
another option is a "direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
the base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
the strongest mounting option is a "through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Machine Base
Workbench
Hex
Bolt
Flat Washer
Flat Washer
Lock Washer
Hex Nut
figure 18. example of a "through Mount" setup.
