28

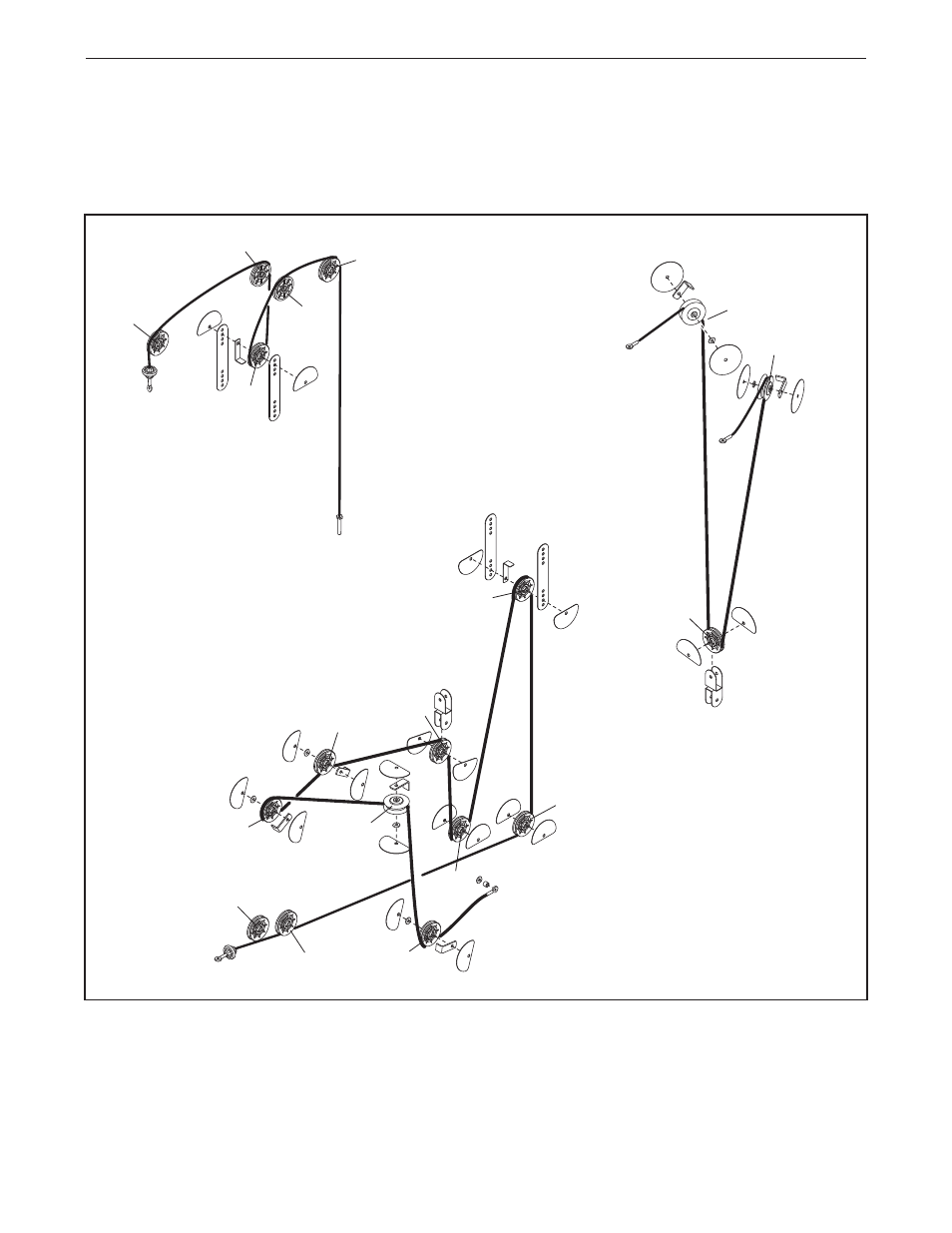

CABLE DIAGRAM
The diagram below shows the proper routing of the cables. The numbers show the proper route for that cable.
Use the diagram to make sure that the cables, cable traps, and finger guards have been assembled correctly. If
the cables are not assembled correctly, the weight system will not function properly and damage may occur.
Make sure that the cable traps do not touch or bind the cables.
10
6
5
7
8
9
1
2
3
4
Lat Cable (49)
Length 147 in. (373 cm)
Butterfly Cable (50)
Length 114 in. (289 cm)
Leg Lever Cable (51)
Length 231 in. (588 cm)
1
1
2
3
2
3
4
5
