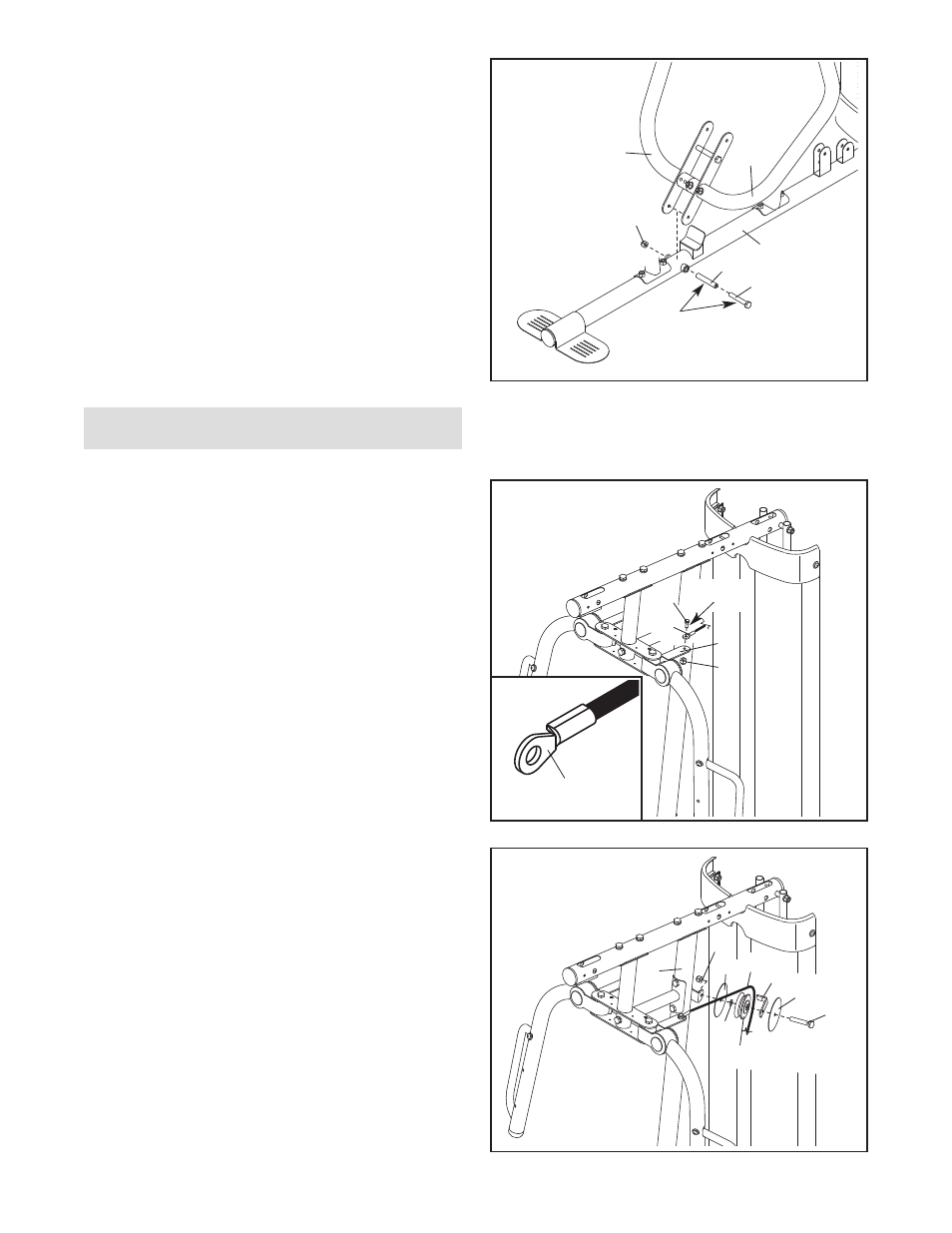

19. See the CABLE DIAGRAMS on page 28 to
identify the cables as you assemble them.
Identify the Butterfly Cable (50). Grease an
M8 x 22mm Shoulder Bolt (90). Attach the Cable
to the Left Butterfly Bracket (28) with the
Shoulder Bolt and an M8 Nylon Locknut (78).
See
the inset drawing. Make sure that the flat edge
of the Cable is against the Left Butterfly Arm.
Do not overtighten the Shoulder Bolt; the
Cable must pivot easily.
20. Wrap the Butterfly Cable (50) over a “V”-pulley
(47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Upright (2) with an M10 x 60mm Bolt (79)
and an M10 Nylon Locknut (77).
19
50
78
90 Grease
28
Cable Assembly
Flat Edge
20
54 50
47
2
80
54
57
79
77
18. Apply grease in the locations shown and attach
the Left and Right Press Arms (15, 16) to the
Base (1) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59), and an M10 Nylon Locknut
(77).
Do not over tighten the Nylon Locknut;
the Press Arms must pivot easily.
See step 17. Tighten the M10 Nylon Locknuts
(77).
18
16
15
77
1
Grease
59
93
15
