Gold's Gym Platinum GGSY3058.0 - Manual (Page 17)

17

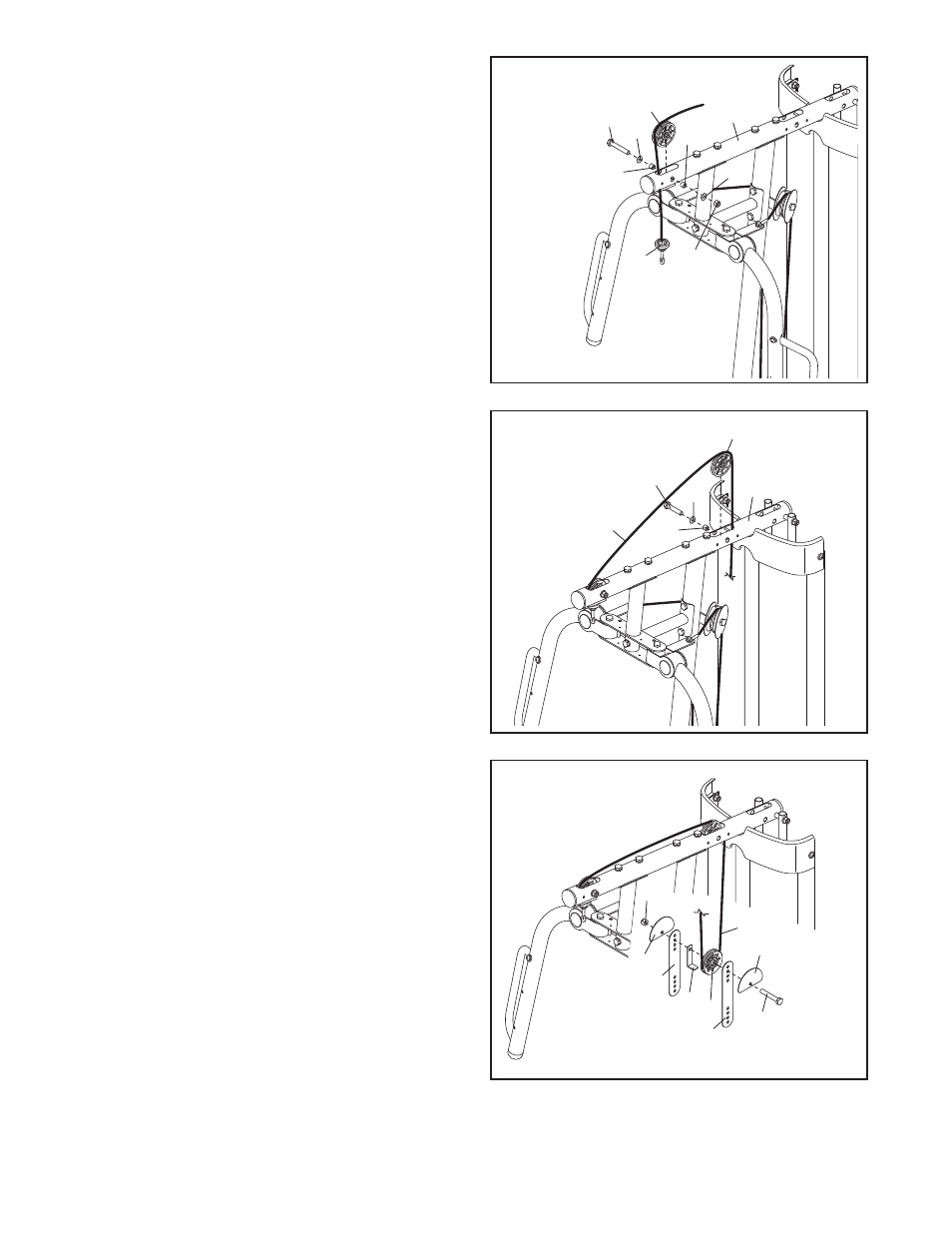

25. Route the Lat Cable (49) over a Thin Pulley (24)
and down through the Top Frame (4). Hold the
Thin Pulley inside the Top Frame. Insert an M10 x
80mm Bolt (84) through an M10 Washer (80), a
19mm Spacer (67), the Top Frame, and the Thin
Pulley.
26. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (56), and
two Half Guards (55) at the second hole from the
top of the two Pulley Plates (60) with an M10 x
50mm Bolt (97) and an M10 Nylon Locknut (77).
Make sure that the Cable Trap and the Half
Guards are oriented as shown.
26
77
55
55
49
97
60
56 48
60
25
4
24
84
80
67
49
24. Identify the Lat Cable (49). Route the Cable up
through the Top Frame (4) and over a 90mm
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 80mm Bolt (84), two M10
Washers (80), two 19mm Spacers (67), and an
M10 Nylon Locknut (77). 24
84
80
80
77
67
67
48
4
49
