11
9. Attach a Shroud Cover (23) to the Left and Right
Shrouds (21, 22) with two M6 x 28mm Bolts (94),
four M6 Washers (114), and two M6 Nylon
Locknuts (107).
Attach the Shroud Cover (23) to the Top Frame
(4) with four M4 x 16mm Self-tapping Screws
(110) and four M4 Washers (104).
See the inset drawing and attach the other
Shroud Cover (23) in the same way.
7
4
2
80
18
103
100
78
78
96
8. Attach the top of the Left Shroud (21) to the Top
Frame (4) with two M4 x 12mm Self-tapping
Screws (102).
Repeat this step for the Right Shroud (22).

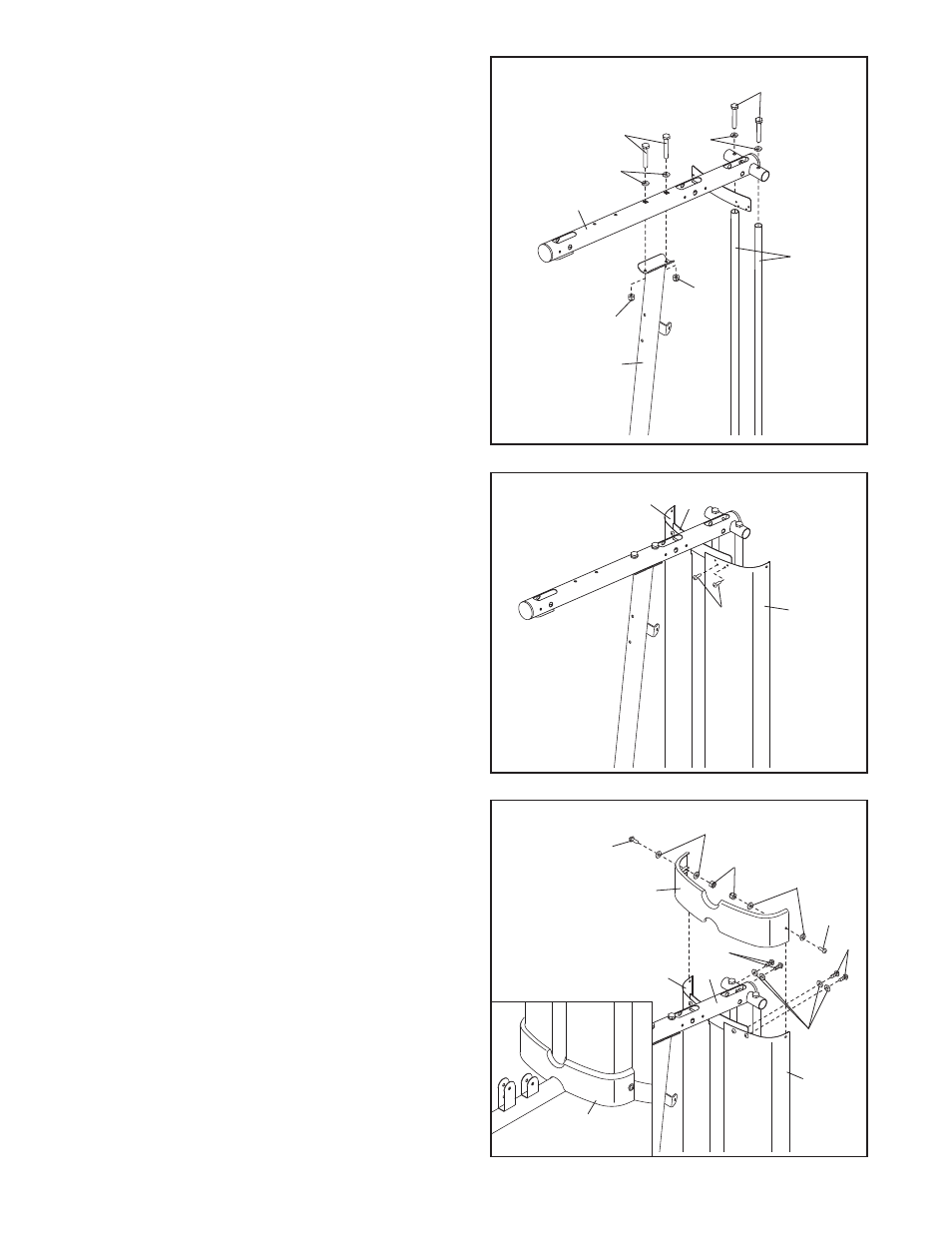

7. Attach the Top Frame (4) to the Upright (2) with
two M8 x 80mm Bolts (100), two M8 Washers
(103), and two M8 Nylon Locknuts (78).
Do not
tighten the Nylon Locknuts yet.
Attach the Weight Guides (18) to the Top Frame
(4) with two M10 x 20mm Button Screws (96) and
two M10 Washers (80).
9
23
23
21
94
94
114
107
110
110
104
114
22 4
8
102
21
22
4
