12
8x8 DVI Matrix DIP Switches
IR CHANNEL CONFIGURATION
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
RMT-848IR REMOTE CONTROL 8x8 DVI Matrix

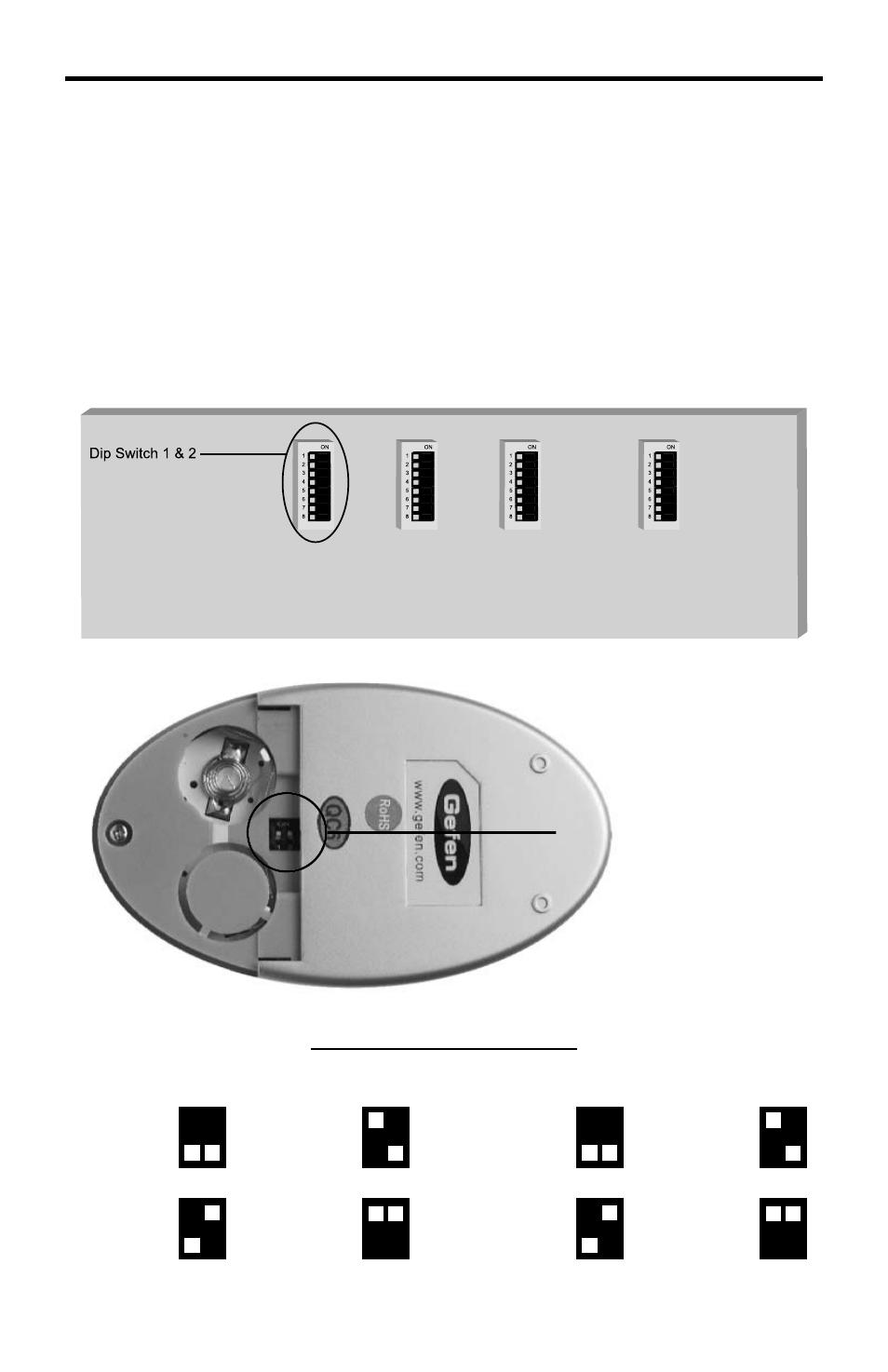

The RMT-848IR remote control has 4 discrete channels for use if the default IR
code set confl icts with other remote control commands in your setup. There are 2
DIP Switches underneath the battery on the RMT-848IR remote control. These DIP
Switches must match the IR channel in use on the 8x8 DVI Matrix. The underside
of the 8x8 DVI has multiple banks of DIP Switches. Please see the diagram of the
8x8 DVI Matrix below for the correct bank and DIP Switches that are used for IR
channel confi guration. Information on the remaining DIP Switch banks can be found
in Appendix A. See below for DIP Switch confi gurations for each of the available
remote channels.
RMT-848IR IR CHANNEL CONFIGURATION
RMT-848IR DIP Switches
