Model g0739 (Mfg. since 2/12)
-13-
Assembly
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

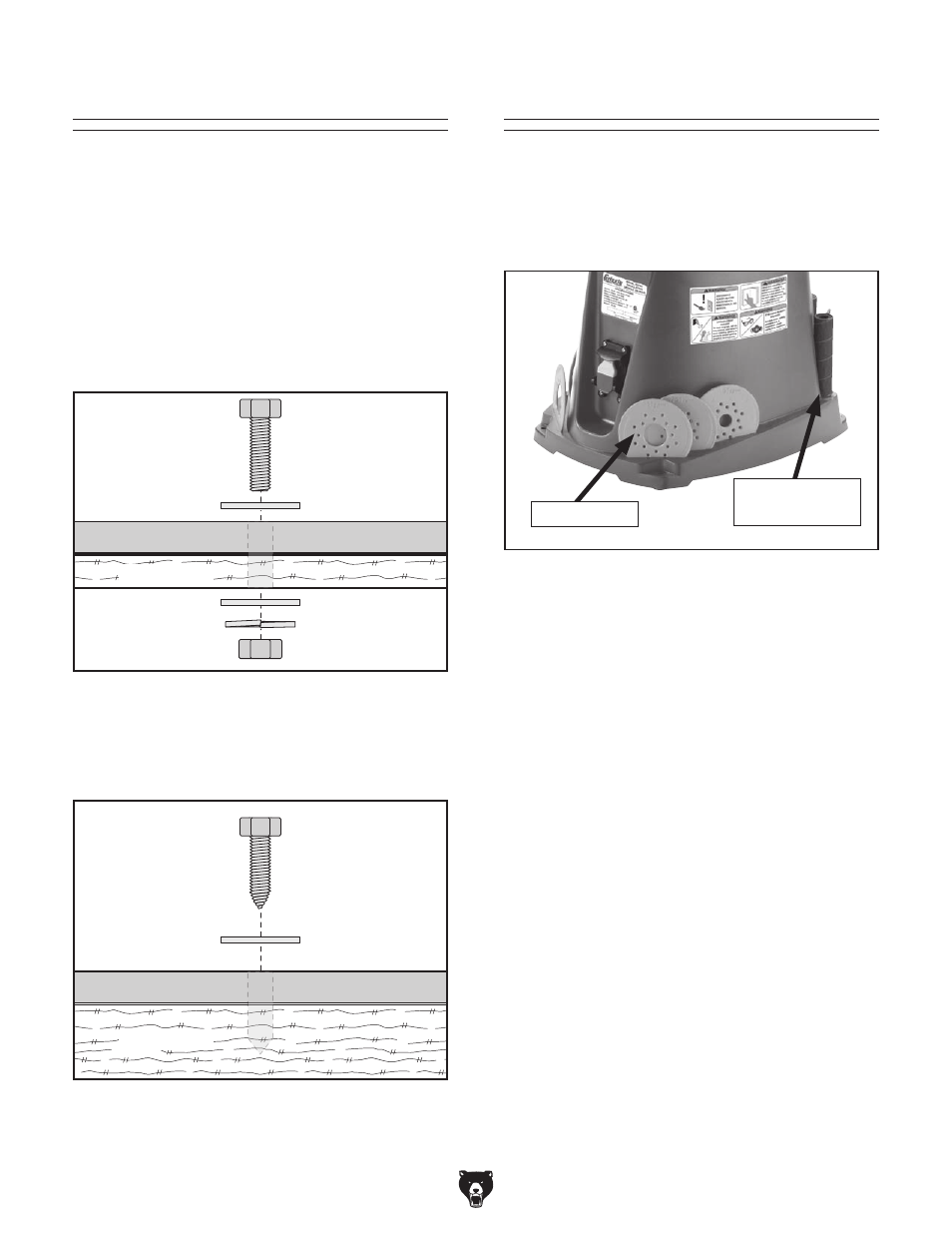

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Machine Base
Workbench
Bolt
Flat Washer
Flat Washer
Lock Washer
Hex Nut
Machine Base
Workbench
Lag Screw
Flat Washer
Another option is a "Direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
Mounting
figure 5. Example of a "through Mount" setup.
figure 6. Example of a "direct Mount" setup.
place the spindle hex nut, table inserts, sand-
ing drums and sleeves, and spindle washers in
the appropriate sized accessory slots beneath
the table. A sanding drum does not need to be
installed until after the test run.
figure 7. Assembled sander.
sanding drums
and sleeves table inserts
