Grizzly 18" x 47" Wood Lathe G0733 - Manual (Page 33)

Model G0733 (Mfg. Since 10/11)
-31-
To outboard turn on the Model G0733:
1. disCoNNeCt lathe From poWer!
2. remove the tailstock and tool base from the
machine by removing the hex nuts and clamp
washers located underneath the assemblies,
then lifting them from the lathe bed.
3. loosen the headstock, then move it all the
way to the tail end of the lathe bed, as shown
in
figure 42.
4. re-tighten the headstock to the bed.
When outboard turning, ALWAyS use a floor
mounted tool rest and keep the tool in con-
tact with the rest during all turning opera-
tions. failure to do so could cause the tool
to be pulled out of the operator's control
and ejected at high speed.

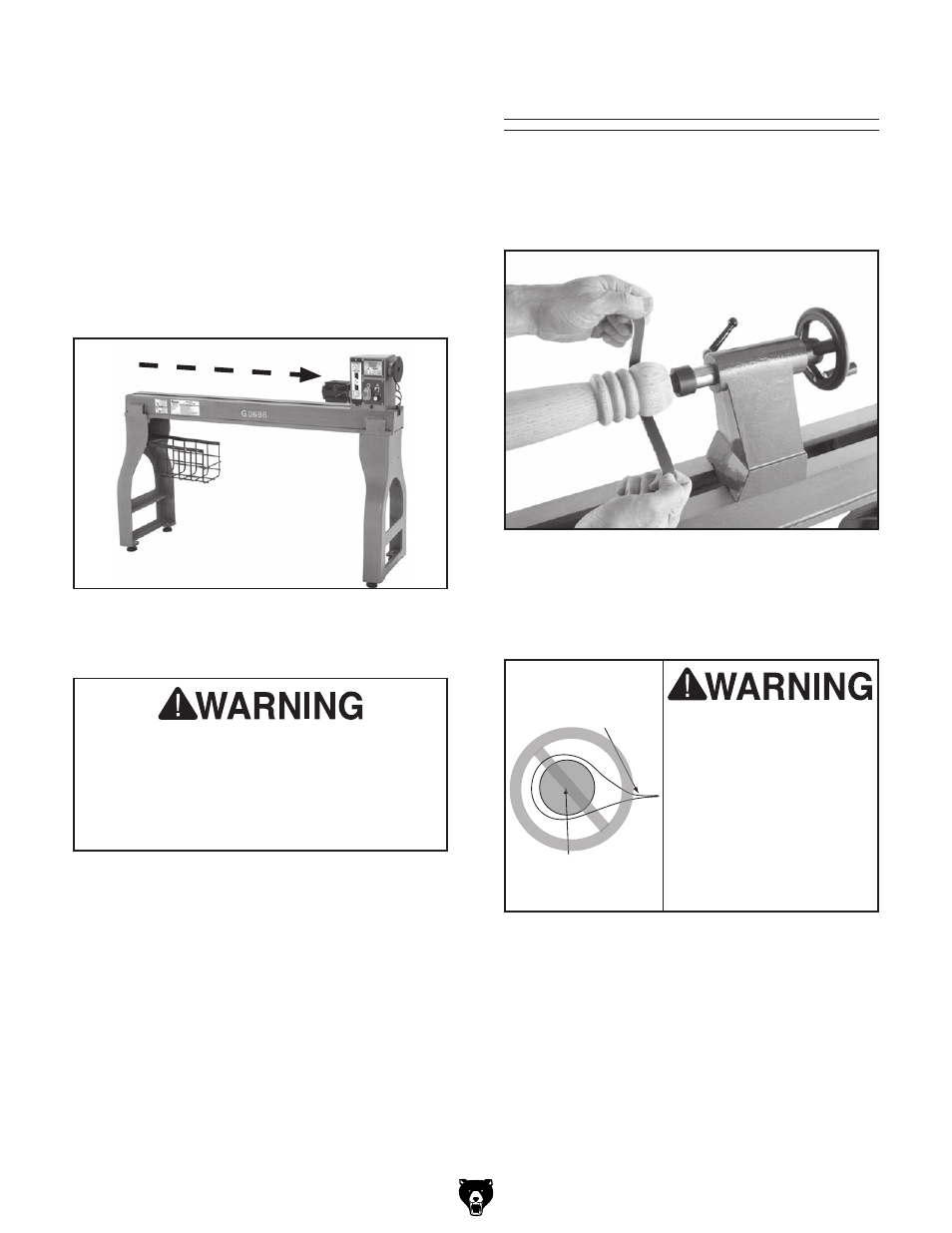

figure 42. Lathe prepared for outboard turning.
Sanding/finishing
after the turning operations are complete,
the workpiece can be sanded and finished
before removing it from the lathe, as shown in
figure 43.
figure 43. typical sanding operation.
Note: Whenever sanding or finishing, move the
tool rest holder out of the way to increase per-
sonal safety and gain adequate working room.
Wrapping the sandpa-
per completely around
the workpiece could pull
your hands into the mov-
ing workpiece and may
cause serious injury.
Never wrap sandpaper
or finishing materials
completely around the
workpiece.
Sandpaper
Workpiece
