Model t23091 1 ⁄
4
" Air die grinder -13 -
section 7: parts
1
2
3
4 5 6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
36
35
37
27

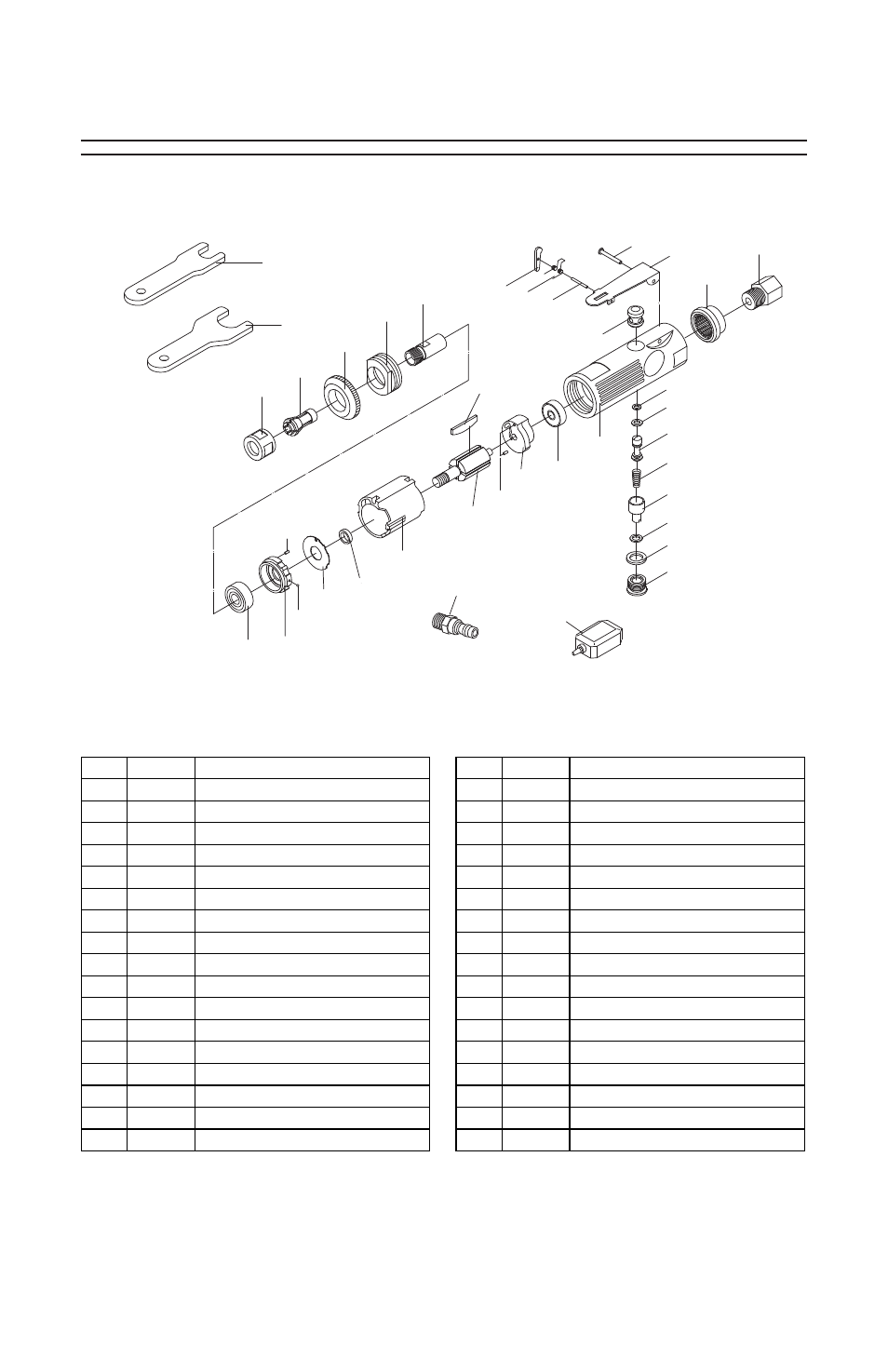

main parts diagram
main parts list
Parts breakdown provided for reference only.
Not all parts shown are available for purchase.
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 N/A HOUSING 20 N/A STEEL BALL 2MM
2 N/A THROTTLE VALVE CYLINDER 21 N/A ROTOR
3 N/A TRIGGER 22 N/A VANE SET
4 N/A TRIGGER LOCK 23 N/A CYLINDER
5 N/A TORSION SPRING 24 N/A THRUST WASHER
6 N/A PIN 1.5 X 20MM 25 N/A BUSHING
7 N/A ROLL PIN 3 X 22MM 26 N/A FRONT COVER
9 N/A O-RING 4.8 X 1.6MM 27 N/A LOCK PIN 2 X 6MM
10 N/A VALVE STEM 28 N/A BALL BEARING 6000Z
11 N/A COMPRESSION SPRING 29 N/A COLLET SEAT
12 N/A REGULATOR 30 N/A LOCK RING
13 N/A O-RING 7 X 2MM 31 N/A RUBBER BUMPER
14 N/A O-RING 12 X 3MM 32 N/A COLLET INSERT 1/4"
15 N/A THREADED RETAINER 33 N/A COLLET NUT
16 N/A EXHAUST MUFFLER 34 N/A SPINDLE WRENCH 1/2"
17 N/A SCREENED FITTING 35 N/A COLLET WRENCH 11/16"
18 N/A BALL BEARING 626Z 36 N/A OIL BOTTLE
19 N/A ENDPLATE 37 N/A QUICK DISCONNECT 1/4" NPT
