English – GIGABYTE GA-K8NS ULTRA-939 User Manual
Page 68
- 68 -
GA-K8NS Ultra-939 Motherboard
English

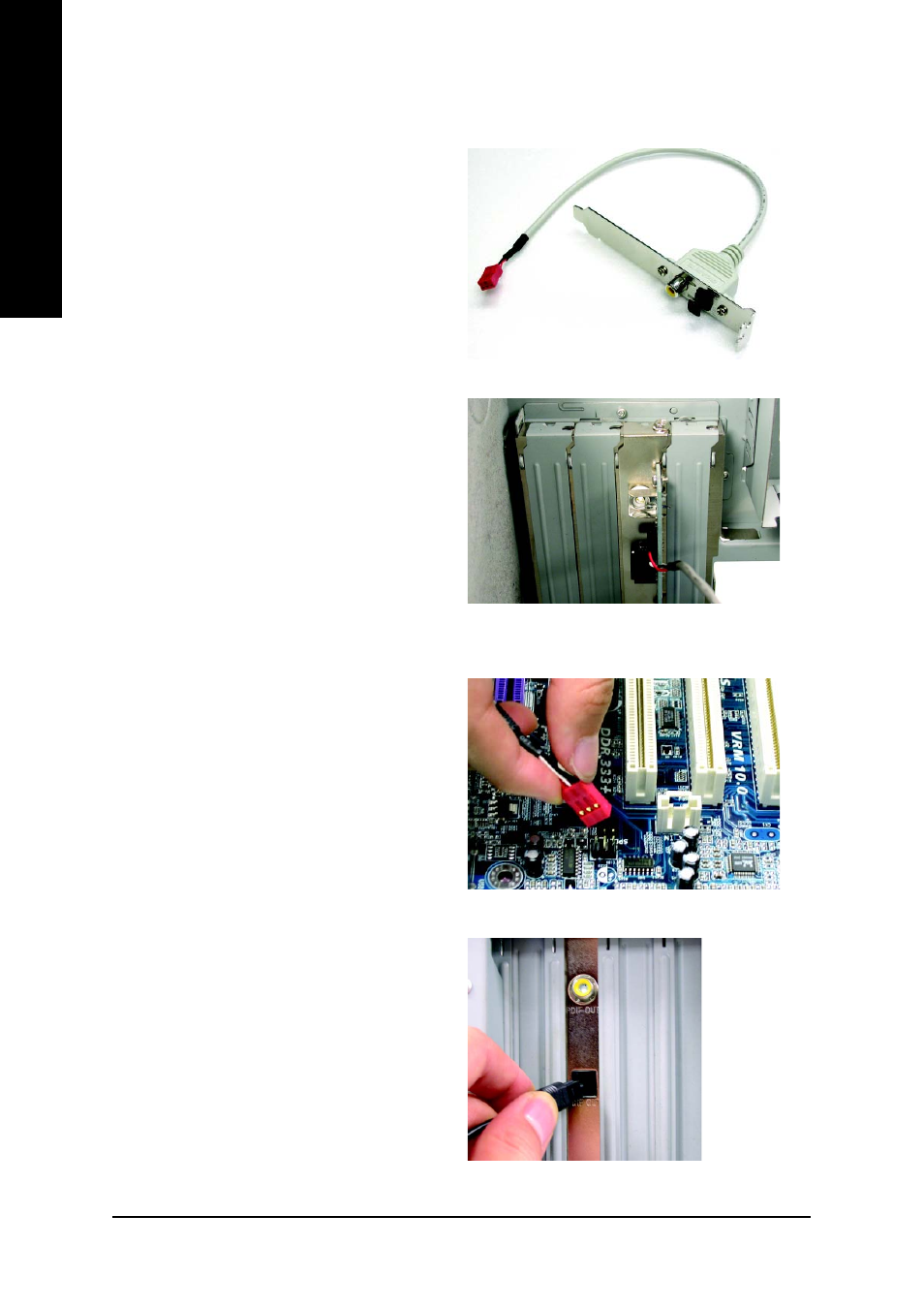

SPDIF Output Device (Optional Device)
3. Connect SPDIF to the SPDIF decoder.
1. Connect the SPDIF output device to the rear
bracket of PC, and fix it with screw.
2. Connect SPDIF device to the motherboard.
A "SPDIF output" device is available on the
motherboard. Cable with rear bracket is provided and
could link to the "SPDIF output" connector (As picture.)
For the further linkage to decoder, rear bracket pro-
vides coaxial cable and Fiber
connecting port.
