GIGABYTE GA-K8NS ULTRA-939 - Manual (Page 25)

Hardware Installation Process
English
- 25 -
1 7
SATA0_SB / SATA1_SB
SATA0_SII / SATA1_SII
11) BATTERY
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer's instructions.
If you want to erase CMOS...
1. Turn OFF the computer and unplug the power cord.
2. Remove the battery, wait for 30 second.
3. Re-install the battery.
4. Plug the power cord and turn ON the computer.

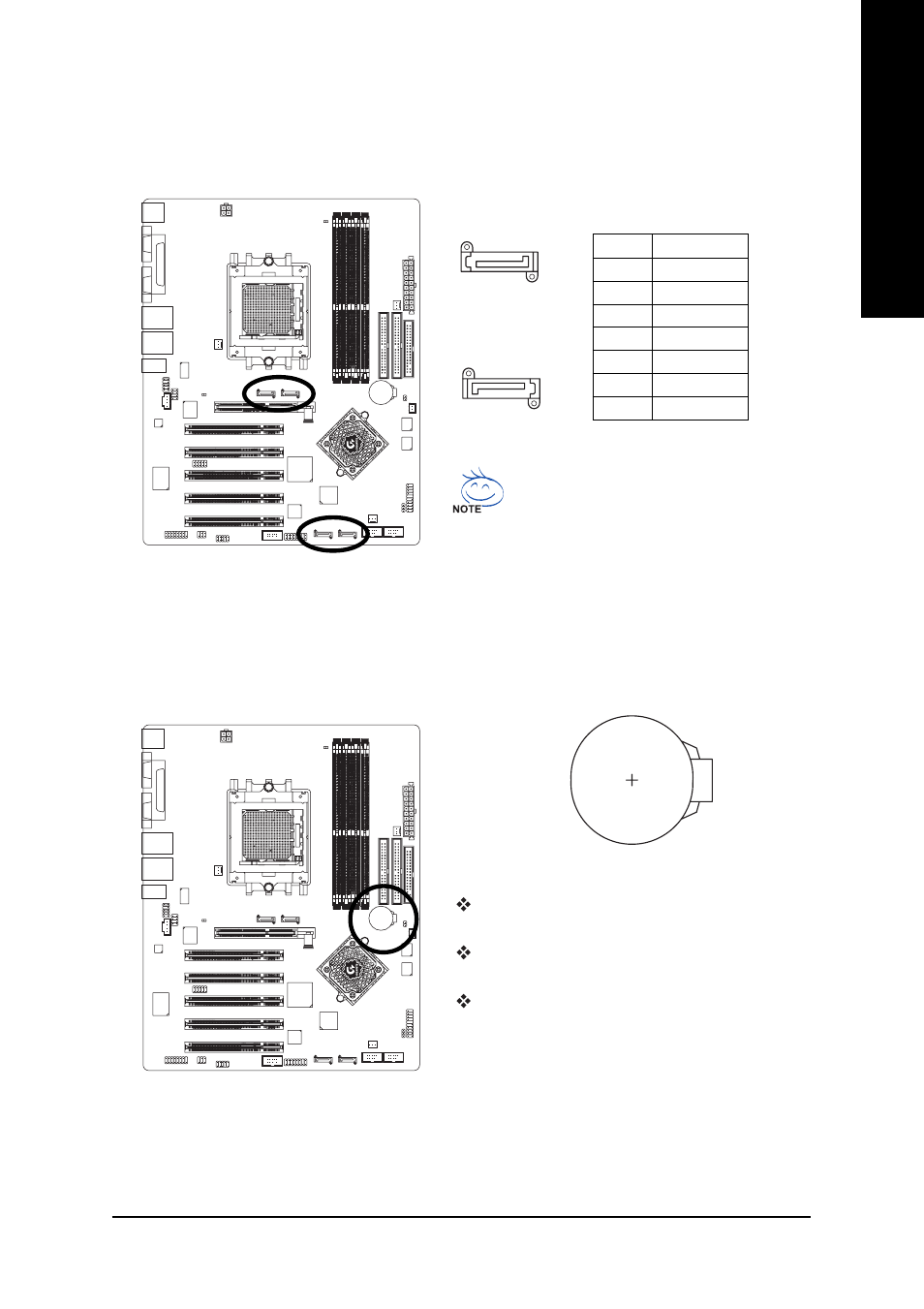

9/10) SATA0_SB / SATA1_SB; SATA0_SII / SATA1_SII (Serial ATA Connector)
Serial ATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and
install the proper driver in order to work properly.
7 1
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
The SATA0_SII / SATA1_SII connectors
support hot plug function.
