- 20 -

GA-K8NS Ultra-939 Motherboard

English

Line In

MIC In

Line Out

After install onboard audio driver, you may
connect speaker to Line Out jack, microphone to
MIC In jack. Devices like CD-ROM, walkman
etc. can be connected to Line-In jack.
Please note:
You are able to use 2-/4-/6-/8-channel audio
feature by S/W selection.
If you want to enable 8-channel function you can
refer to page 30, and contact your nearest dealer
for optional SUR_CEN cable.

If you want the detail information for 2-/4-/6-/8-channel audio setup
installation, please refer to page 66.

Before you connect your device(s) into USB

connector(s), please make sure your device(s)
such as USB keyboard,mouse, scanner, zip,
speaker...etc. Have a standard USB interface.
Also make sure your OS supports USB
controller. If your OS does not support USB
controller, please contact OS vendor for
possible patch or driver upgrade. For more
information please contact your OS or device(s)
vendors.

LAN1 connector is fast Ethernet with 10/100/

1000 Mbps speed.

LAN2 connector is fast Ethernet with 10/100

Mbps speed.

USB 0
USB 1

USB 2
USB 3

LAN2

LAN1

/

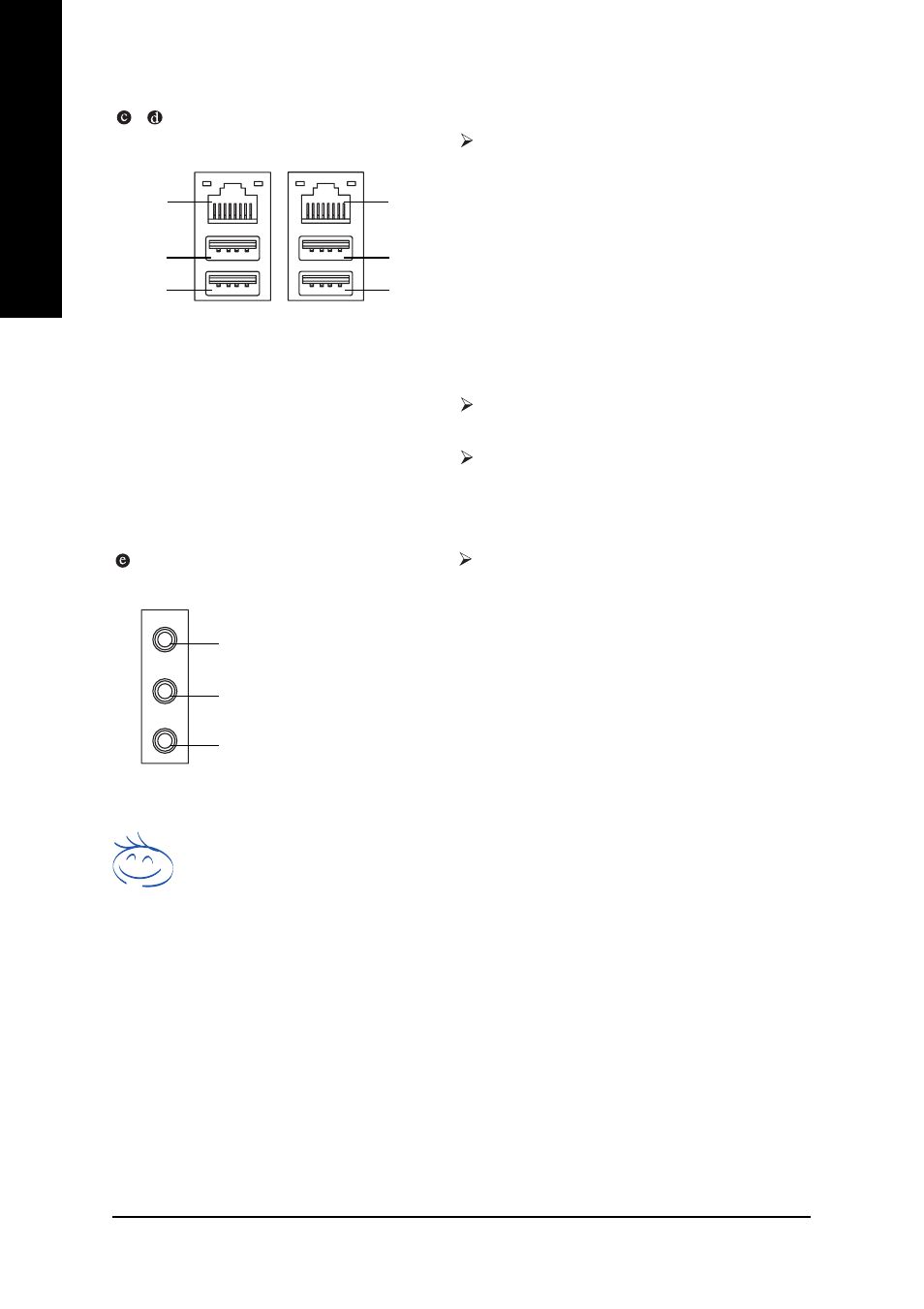

USB/LAN Connector

Audio Connectors
