5. Install the round-slotted handwheel onto the
right shaft with the 4 x 4 x 12 key, and install
the square-slotted handwheel onto the left
shaft, using the cap screws and flat washers
already mounted on the handwheel shafts.

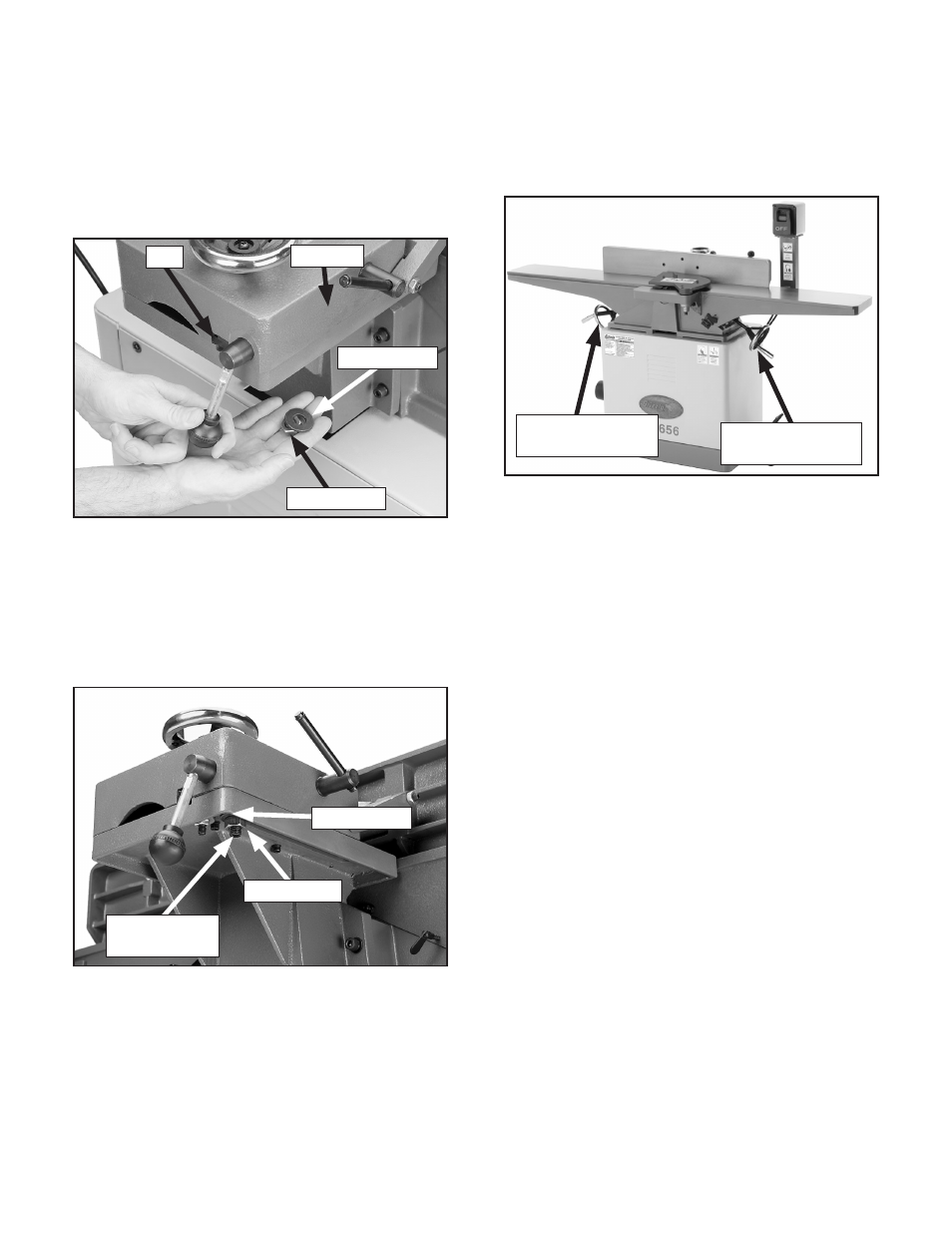

Figure 5. Handwheels installed.
Round Slotted
Handwheel
Square Slotted
Handwheel
Figure 4. Fence installed.
Flat Washer
Fence Lock
Handle Bolt
4. Secure the fence lock handle bolt with the
locking nut and flat washer removed in Step
3, as shown in Figure 4, and final tighten the
fence bracket.
3. Remove the locking nut and flat washer
( Figure 3) from the fence lock handle bolt
( Figure 4), place the fence assembly over
the jointer tables and fence bracket, and
insert the bolt through the fence bracket slot,
making sure the carriage fits over the key
(
Figure 3).
Figure 3. Fence locking nut and washer
removed.
Flat Washer
Locking Nut
Key Carriage
6. Perform Steps 18-26 on Pages 15 & 16.
Locking Nut
