7

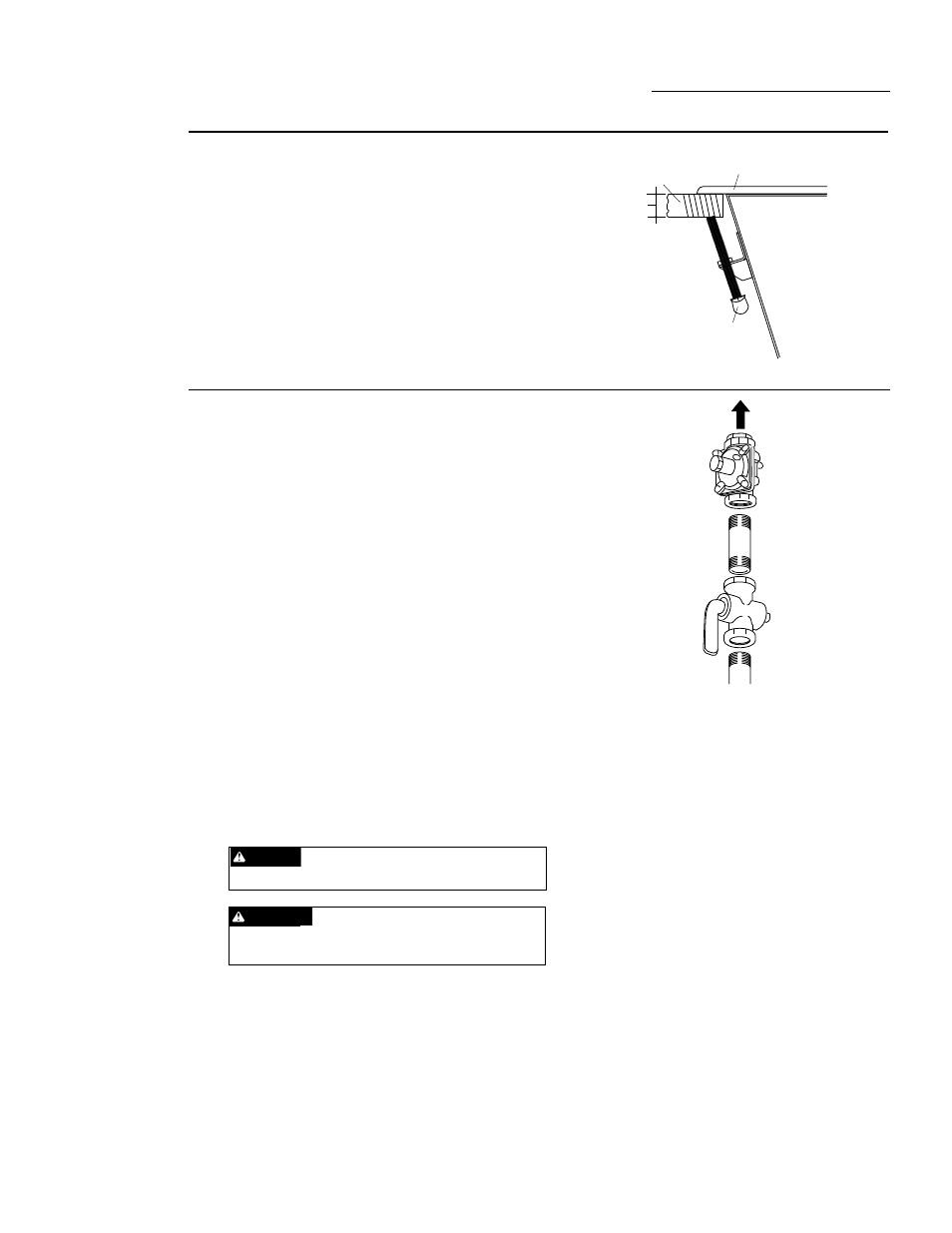

Installation
Stainless Steel G a s Cooktop
• Remove packaging from the cooktop.
• Position the cooktop over the opening,
making sure that the power cord is dropped
into the cabinet.
• Lower the cooktop into the cutout, pressing
gently and evenly to seat.
• Thumbscrew brackets are located on the
right and left sides of the cooktop.
• Turn thumbscrews to touch the underside of
the countertop until just finger tight. Do not
overtighten.
1
Install
Cooktop
Step
• Install the supplied pressure regulator and
nipple in the gas line as close to the cooktop
inlet as possible.
–Make sure the regulator is installed in the
right direction. See arrow on underside of
regulator.
• Install a manual shut-off valve in the gas line
in an easily accessible location.
NOTE: Instead of using solid piping to
connect to pressure regulator, an approved
flexible metal appliance connector may be
used between the pipe stub and the shut-off
valve to the pressure regulator, if local codes
permit.
– Appropriate flare nuts and adapters are
required at each end of the flexible
connector.
• Turn on the gas. Check for leaks using a
liquid leak detector at all joints in the system
(the pressure test fitting is on the side of the
regulator).
Do not use a flame to check for
gas leaks.
IMPORTANT: Disconnect the cooktop and
the individual shut-off valve from the gas
supply piping system during any pressure
testing of that system at test pressures greater
than 1/2 psig. Isolate the cooktop from the
gas supply piping system by closing the
individual manual shut-off valve to the
cooktop during any pressure testing of the
gas supply piping system at test pressures
equal to or less than 1/2 psig.
CAUTION
IL NE FAUT PAS UTILISER
DE FLAMME POUR VÉRIFIER S’IL Y A
DES FUITES.
CAUTION PRUDENCE
2
Install
Pressure
Regulator
Step
NOTE: Refer to flow
direction arrow on
underside of regulator.
Countertop
Cooktop
Thumbscrew
1" Min.
Regulator
Solid Piping
or Flexible
Connector
Shut-Off
Valve
Pipe Stub From
House Gas Supply
To Cooktop
NOTE: Countertop
must be a minimum
of 1" thick at the
thumbscrew locations.
