10
Installation Options
Stainless Steel G a s Cooktop
Cooktop Installation Over a 30" Monogram
Warming Drawer, models ZTD910.
These cooktops may be installed over a 30"
Warming Drawer. Both the cooktop and the
warming drawer must be installed according
to each specific installation instruction. For
accurate planning, review the Warming
Drawer Installation Instructions in advance,
order Pub. No. 49-8937. – Allow 2" clearance between the cooktop
bottom and the top of the cutout, or 7-1/2"
from the top of the countertop as illustrated.
Power Supply:
If local codes permit, the cooktop and warm-
ing drawer may operate from the same 120V
duplex outlet. See page 6.
IMPORTANT: Base Cabinet Requirements
for Combined Installation
A 42" wide base cabinet should be used.
Narrow custom doors or decorative stiles can
be used to fill the 6" gap on each side of the
warming drawer.
• 30" or 36" base cabinets are not
recommended.
NOTE: The support must be level, rigidly
mounted and capable of supporting 150 lbs.

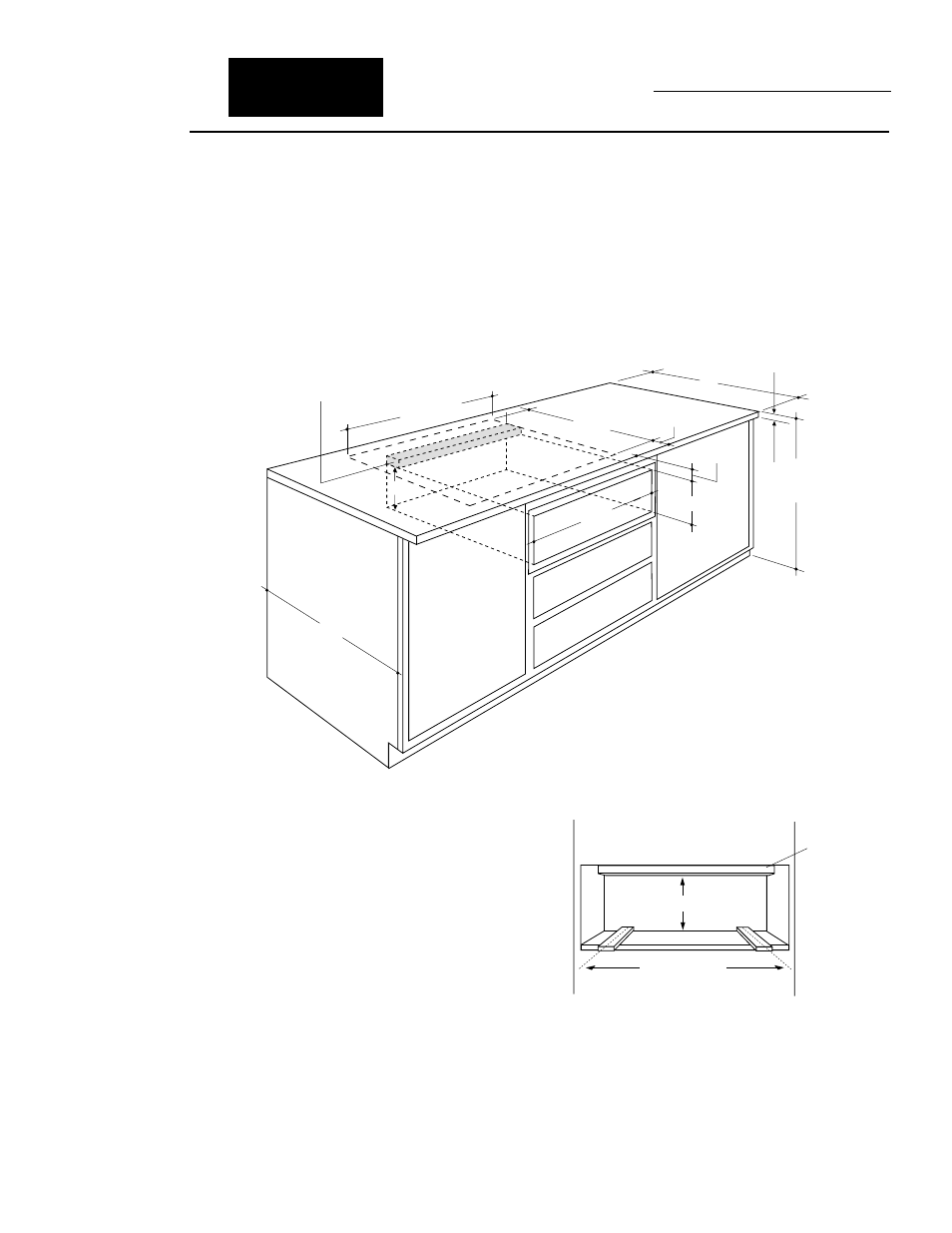

Installation With
Warming Drawer
9"
2x4 or 2x2
Runners or Solid
Bottom, 25" on Center
Install
2x4 or 2x2
Anti-Tip Block
Against Rear
Cabinet Wall
9" From Floor
to Bottom
of Block
Install 2x4 or 2x2 Anti-Tip Block
Against Rear Cabinet Wall 9" From
Cutout Floor to Bottom of Block
23-1/2" Min.
7-1/2" Min.
25"
36"
Countertop
Height
1-1/2" Cabinet Top
Cooktop 35-5/16"
18-7/8"
2-3/4" Min.
9-1/4"
9"
28-1/2"
NOTE: When installing a Monogram Warming Drawer below
a cooktop, a solid barrier must be installed at least 1" from
the lowest point of the bottom of cooktop burner box to the
top of cutout. See Warming Drawer Installation Instructions
for details.
