t20568 1 1 ⁄
4
" brad nailer -8 -
operations
loading
When replacing nails in your model
t20568, follow these guidelines:
gauge: 18
length:
3 /
8
" – 1 1 ⁄
4
"
Capacity: 100
to load your nailer:
1. diSConneCt nailer From the
air Supply!

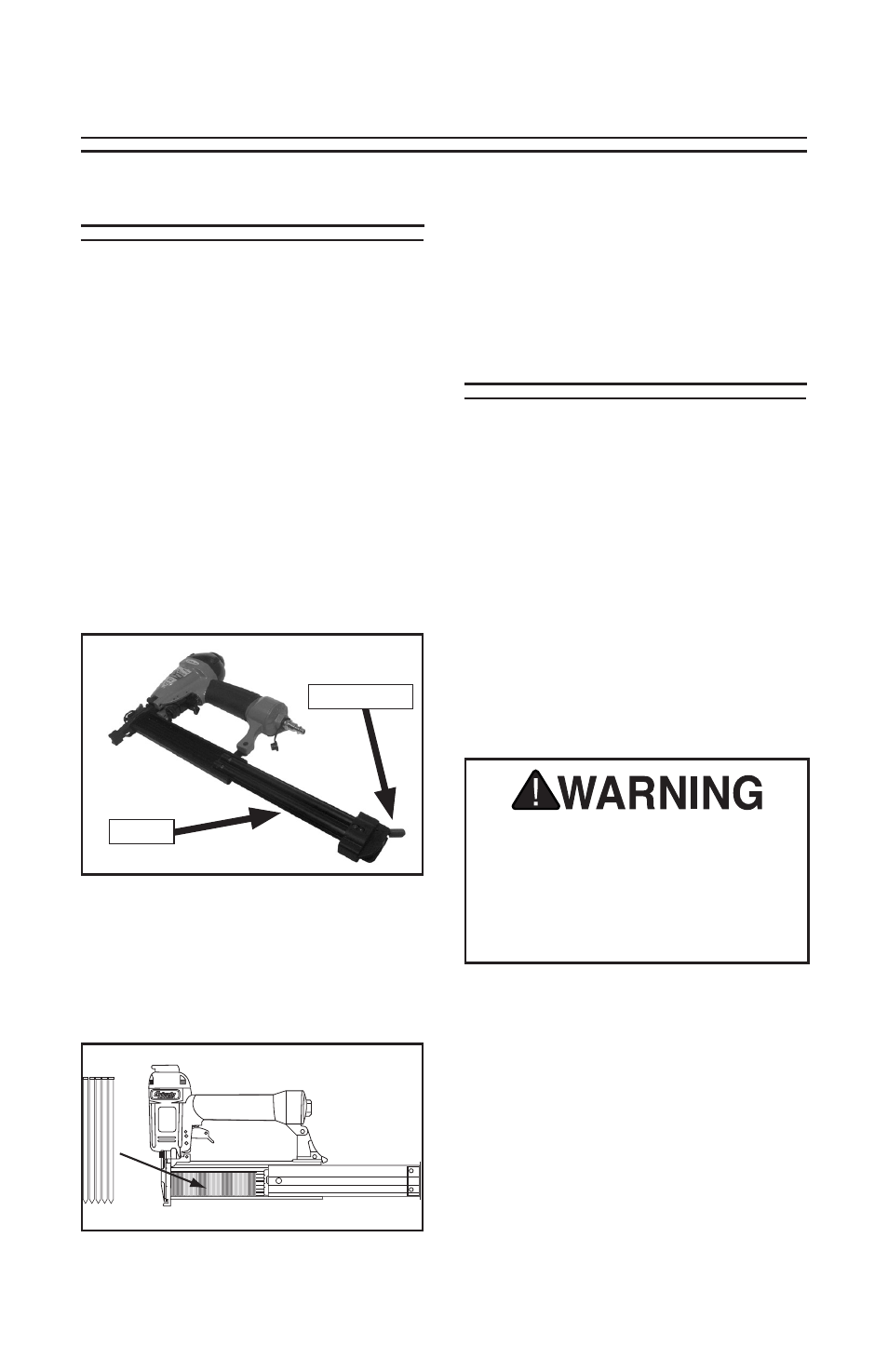

2. grip the nailer firmly, release the catch
lever and slide the magazine pusher
open, as shown in
figure 3.
figure 4. loading nails into magazine.
3. insert a strip of nails, pointed-end
down, into the magazine as shown in
figure 4.
operating
if you have not read the safety instruc-
tions in this manual, do not operate the
nailer.
before you operate your nailer, place two
to six drops of the included oil into the
quick connect fitting where the nailer con-
nects to the air supply.
to operate your nailer:
1. Connect the air supply to the quick con-
nect fitting.
4. Slide the nails all the way down to the
nose of the nailer.
5. Slide the pusher back until the catch
lever locks.
figure 3. releasing catch lever and
sliding magazine pusher back.
pusher
Catch lever
2. to test for proper nail penetration, hold
the nailer perpendicular to the surface
of a piece of clean scrap wood that is
thick enough for the length of nails you
have loaded.
point the nailer away from you and
others when connecting the air supply.
the nailer can cycle and discharge a
nail when the air supply is connected.
ignoring this warning may result in
serious personal injury.
