INSTALLATION INSTRUCTIONS
5. REMOVAL OF THE GRATE
5.1 To remove the Grate:
• Remove the ashpan from under the grate
• Remove the log retainer
• Remove the firebricks from above the grate
• Lift and rotate the centre grate
• As you lift the grate, disengage the operating rod
• Remove the main grate from the steel runners.
• Replace in reverse order

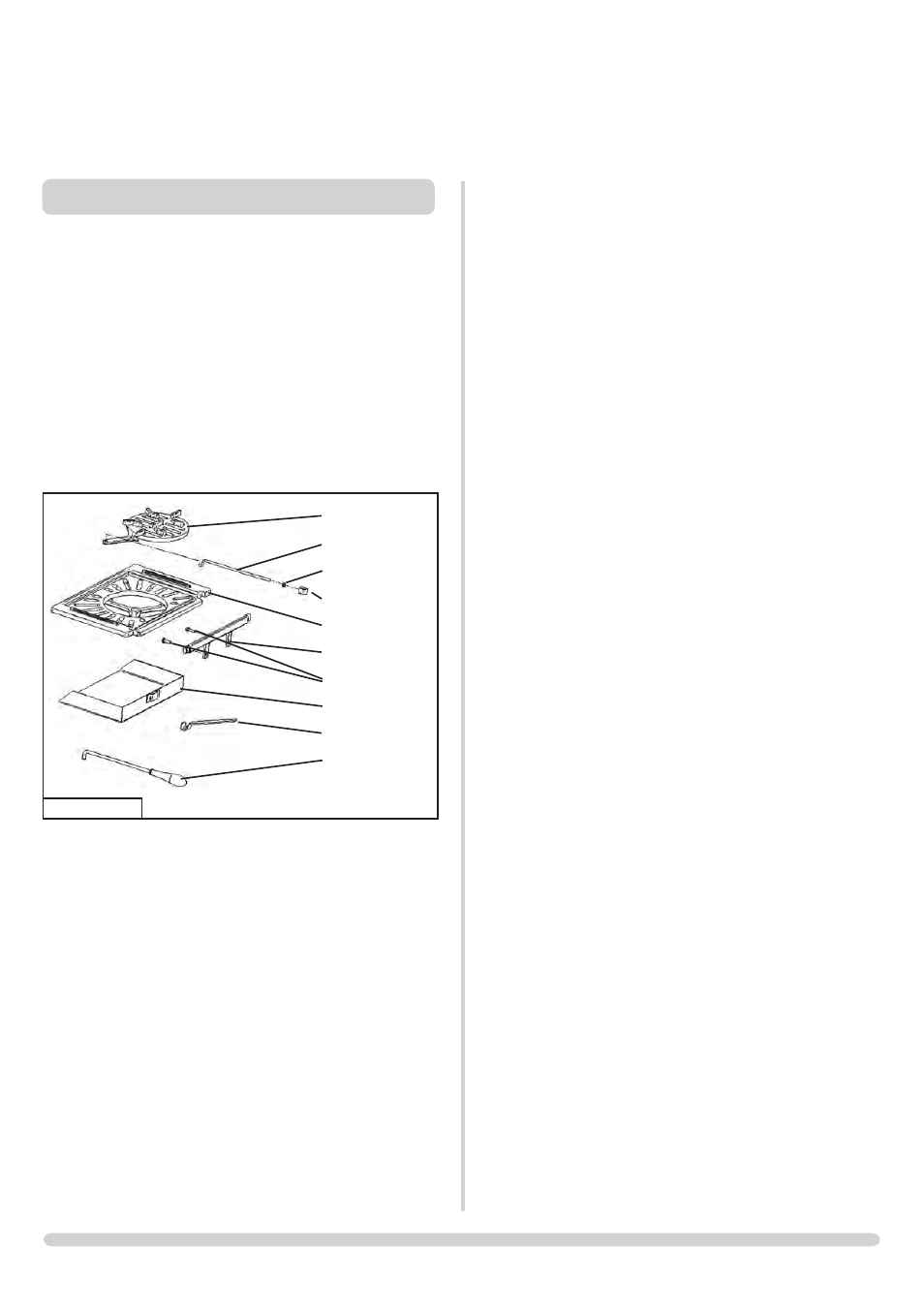

Centre Grate
Operating Rod
Lock Nut
Operating Knob
Main Grate
Door Seal
Fixing Bolts
Ashpan
Ashpan Tool
Operating Tool
