Magnum 700X Mini-Concentrators Installation and User Guide (05/98)

GARRETT

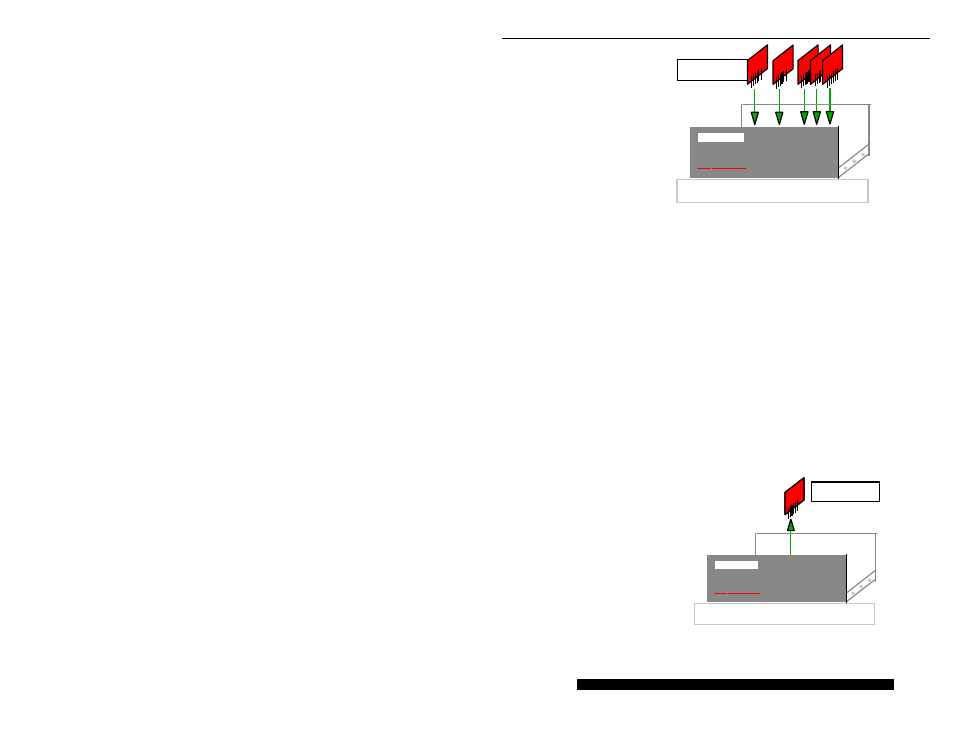

Slowly and firmly push the

PM into position. Once

inserted, secure the PM card

using the two screws on the

front panel of the unit. Once all

PM cards needed have been

installed (including face plates

for empty slots), replace the

chassis cover.

NOTE: All PM slots need not be filled in order for the unit to be operational. When

leaving PM slots empty, always use a face plate (Magnum PM-FP) to cover the

opening in the front panel to keep the unit clean, and for safety.

3.5

Removing PM Cards

To properly remove a PM card from the Magnum 700X Mini-Concentrator, follow the

steps below.

Removing 700X Chassis Cover and PM Retaining Screws

Follow the procedure described for Face Plates in Section 3.3, Steps 1 and 2, above.

Removing PM Card

Gently pull the PM card up and out of the connector socket. If the slot from which the

PM card has been removed is to remain open be sure to install an PM face plate. If another

PM card is replacing the one that

has been removed, follow the steps

as described for installing an PM

card discussed on the preceding

pages.

NOTE: Use a face plate

(Magnum PM-FP) to cover the opening

in the front panel if you are leaving any

700X Mini-Concentrator slots empty.

PM Cards

Magnum 700X

Magnum 700X Mini-Concentrator

PM Card

Magnum 700X

Magnum 700X Mini-Concentrator
