GarrettCom Mini-Concentrator Magnum 700X User Manual

Page 17

Magnum 700X Mini-Concentrators Installation and User Guide (05/98)

GARRETT

Note: Be sure to use single-mode fiber optic cable with this module.

Single-mode fiber has a smaller diameter than multi-mode fiber

(2/15 - 8/60 microns for single-mode, 50/125 or 62.5/125 microns

for multi-mode, where xx/xx are the diameters of the core and the

core plus the cladding respectively).

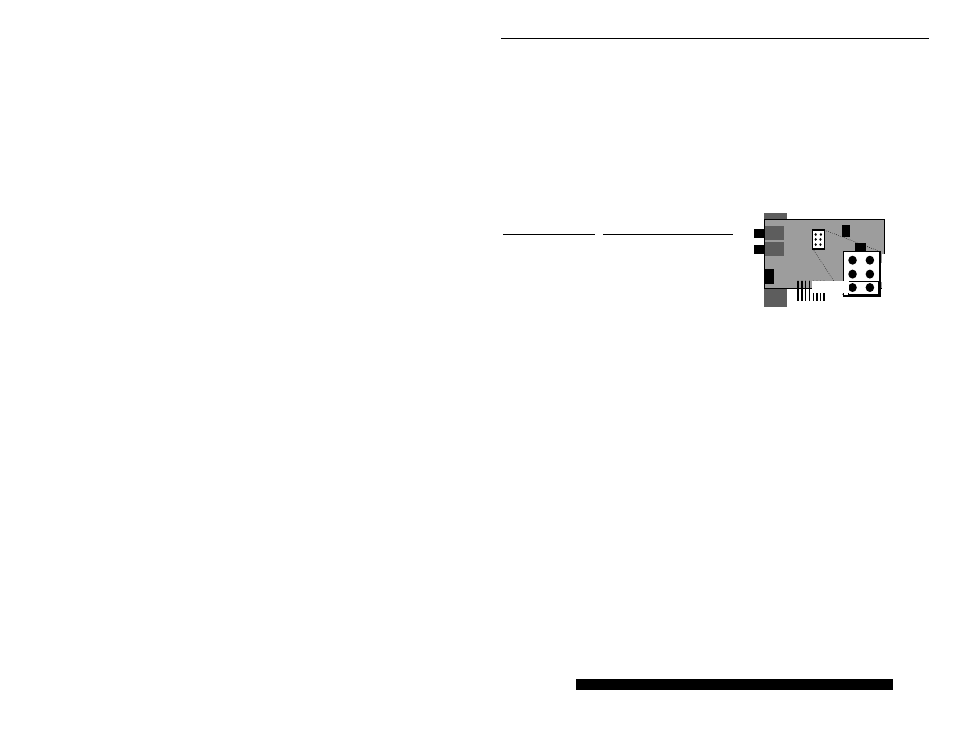

NOTE: The RPM-SMF circuit board contains a six pin jumpers, but the jumper is

only to be placed across pins 5 & 6. (Chg. 11/98) Others are not used.

JUMPER ACROSS DISTANCES SUPPORTED

1 - 2

not used

3 - 4

not used

5 - 6

0 - 10 km

1 2

3 4

5 6

DEFAULT
