Grizzly H7762 User Manual
Page 22
-20-
H7762
Heavy Duty Tool Grinder

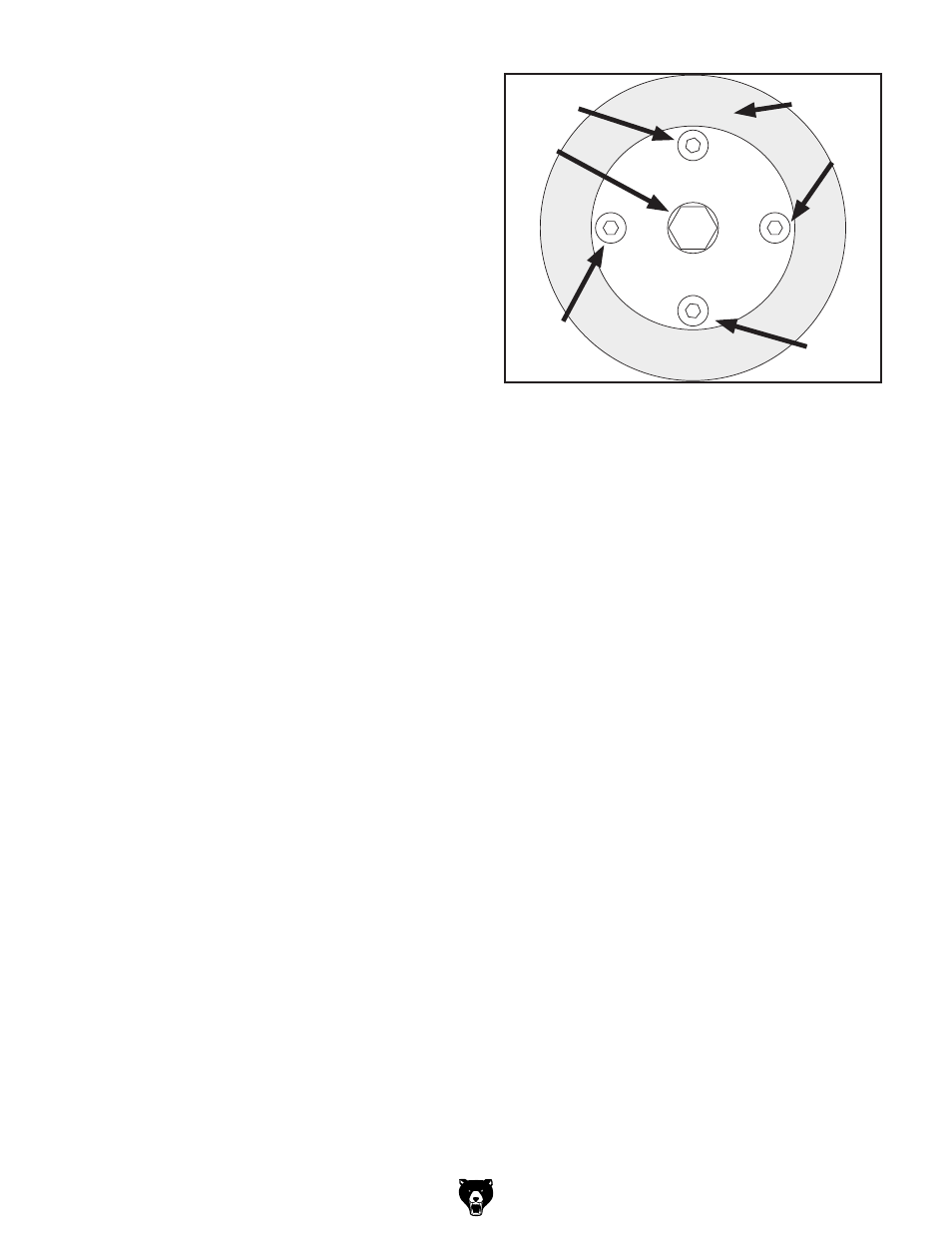

Figure 9. Wheel bolt mounting order.
Arbor
Grinding
Wheel
1st
Bolt
2nd
Bolt
4th
Bolt
3rd
Bolt
5. Slide the new grinding wheel onto the arbor.
Be sure not to bump or scratch the wheel as
it may dent, crack or otherwise damage the
wheel.
6. Align the large holes in the grinding wheel
with the screw holes in the connection plate
of the grinder.
7. Fasten the wheel to the connector plate with
the four bolts. In order to properly balance the
wheel, tighten the bolts in the order shown in
Figure 9.
8. Run a new wheel for at least one minute while
standing clear of the line of rotation. If a wheel
does have defects it will generally fail as soon
as it gets up to full speed.
