H7762 Heavy Duty Tool Grinder -15-
2. Align the angle gauge so that the pointer at
the bottom of the gauge is pointing at 0º.
3. Tighten the lock handle further so that the
angle gauge does not move.
4. Repeat Steps 1-3 for the other three angle
gauges.
5. Place a work table on a pair of angle gauges-
so that the bolts on the underside of the table
fit through the slots in the angle gauges.
6. Align the work table so the gap between the
table and the grinding wheel is approximately
1 /
8
".
7. Fasten the table to the support dials using an
8mm flat washer and a hex nut on each bolt,
as shown in
Figure 7.
Note: The fastening process can affect the
gap between the work table and the grinding
wheel. Always recheck the gap width after
fastening and adjust as necessary.
8. Repeat Steps 5-7 for the other work table.

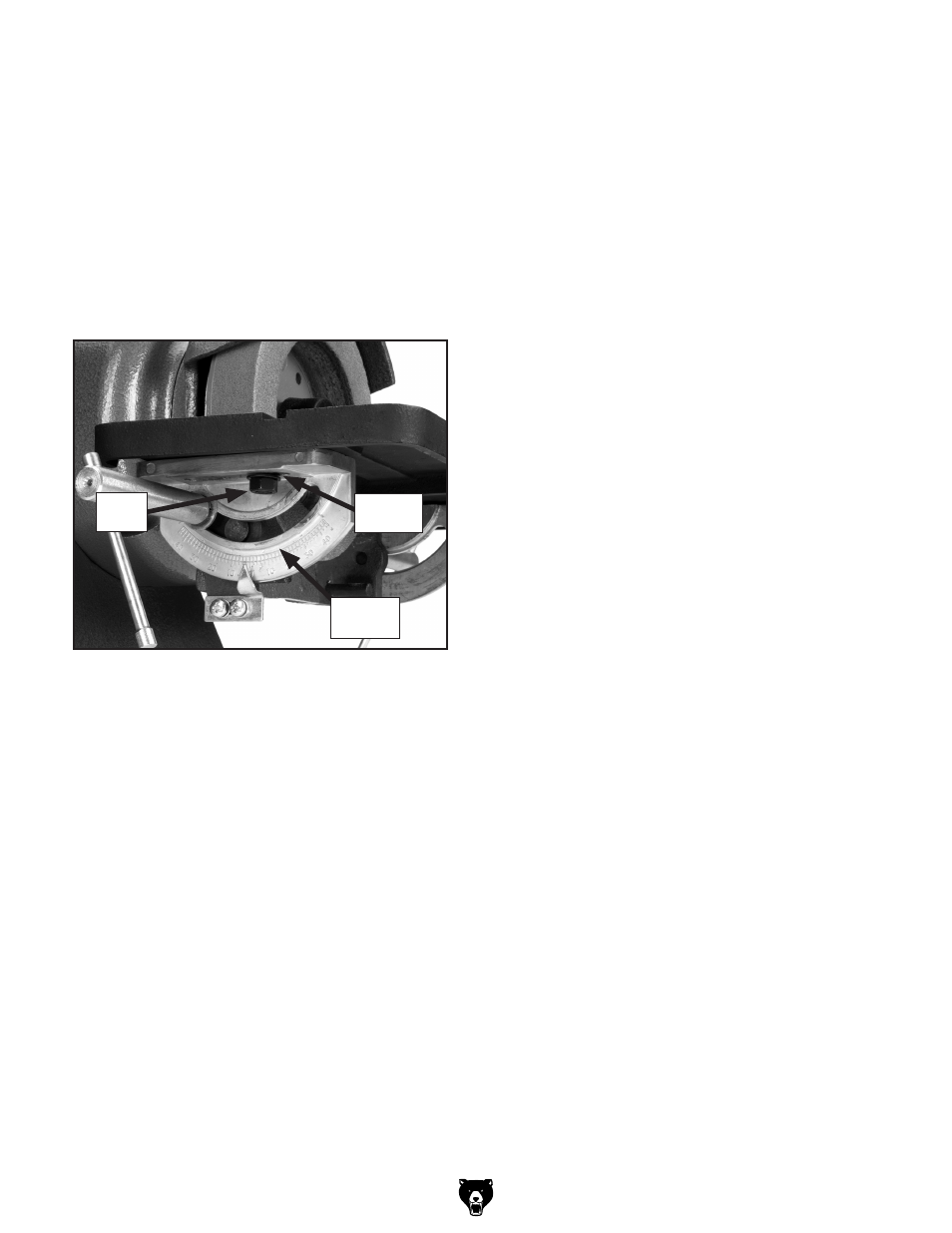

Figure 7. Work table attachment.
Angle
Gauge
Hex
Nut
Flat
Washer
