-4-
model h7724 (mfg. since 7/08)

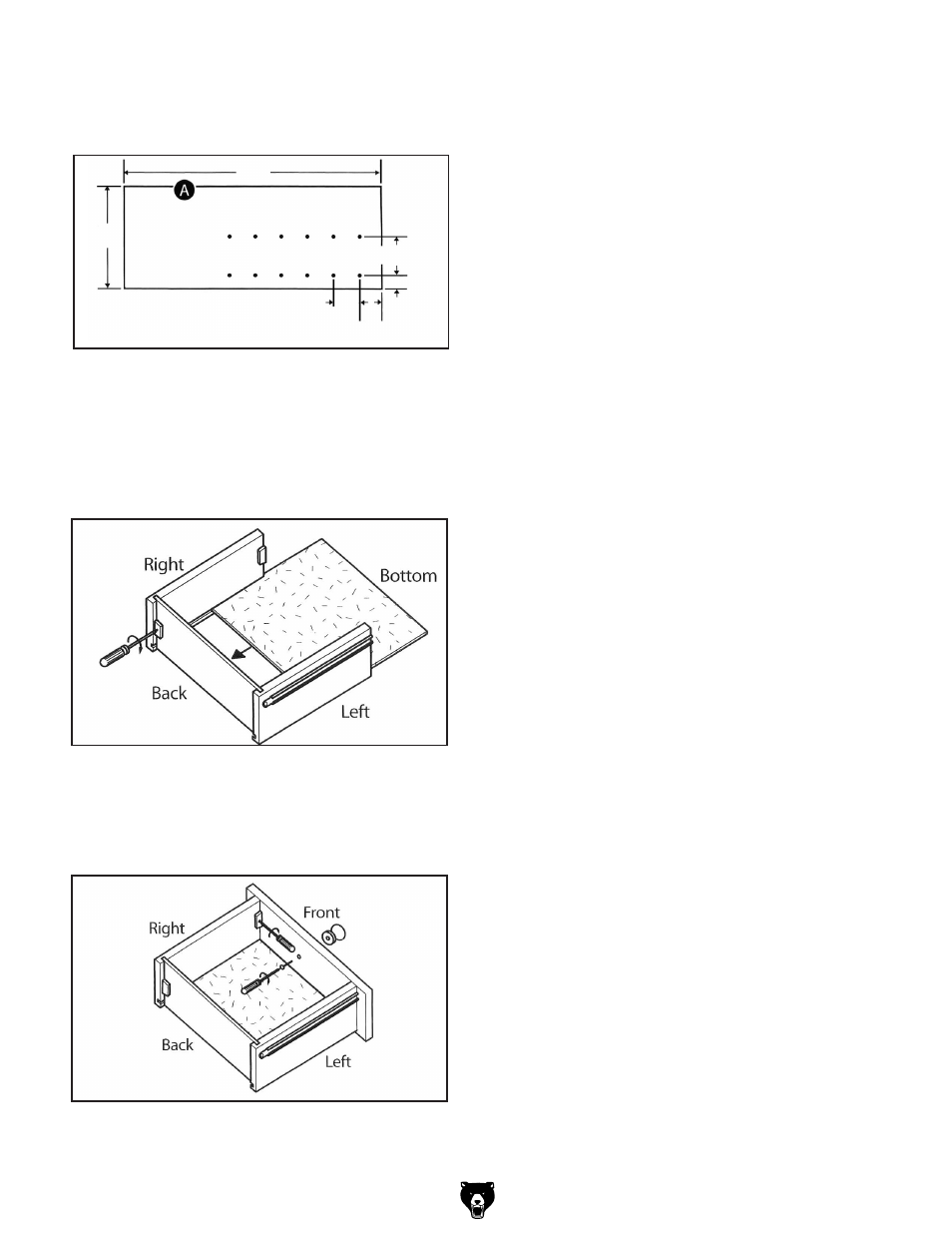

figure 11. drawer assembly.
figure 12. Final assembly.
22. using a standard screwdriver, assemble the
right and left drawer sides to the drawer back.
then slide the drawer bottom into the drawer
side grooves (
figure 11) until it is fully seated
in the back groove.
23. install the drawer fronts (figure 12), the
(y1) knobs, and insert the drawers into their
respective drawer slides.
24. Lubricate drawer slides with light grease peri-
odically for smooth operation.
Maintenance
to avoid damaging it, do not store the workbench
outside, or in an overly damp or extremely dry
location.
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
figure 10. optional bench dog drilling locations.
4 1 ⁄
4
"
20"
60"
5"
2 5 ⁄
8
"
7 1 ⁄
2
"
21. should you choose to use the (z4) bench
dogs, drill twelve 5 ⁄
8
" (16mm) holes at the
shown locations in figure 10 in the table
top.
