section 4: operations
loading

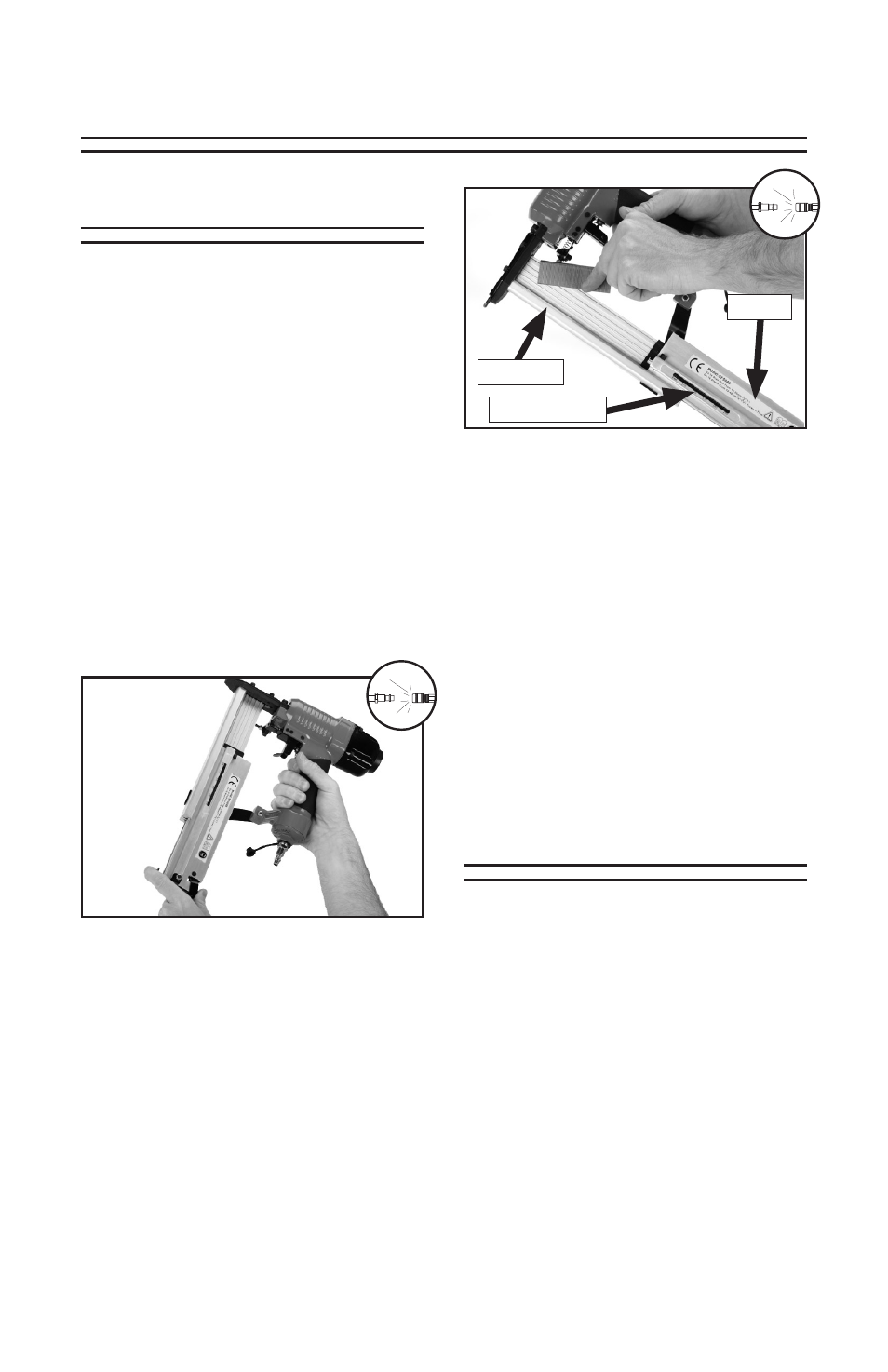

figure 3. Catch lever engaged and
magazine pusher retracted.
When replacing brads or staples in your
model h7664, follow these guidelines:
gauge: 18
Brad Length:
5 ⁄
8
"-2"
staple Length: 5 ⁄
8
"-1 5 ⁄
8
" (crown 1 ⁄
4
")
Capacity: 100
to load your nailer/stapler:
1. disconnect nailer/stapler
from the air supply!
2. grip the nailer/stapler firmly, unlatch
the catch lever ( figure 3), and pull the
magazine pusher back completely.
figure 4. Loading nails into magazine.
3. insert a strip of brads or staples, point-
ed-end down, into the magazine as
shown in
figure 4.
operating
if you have not read the safety instruc-
tions in this manual, do not operate the
nailer/stapler.
Before you operate your nailer/stapler,
place two to three drops of the included
oil into the quick connect fitting where the
nailer/stapler connects to the air supply.
to operate your nailer/stapler:
1. Connect the air supply to the quick
connect fitting.
4. slide the staples or brads all the way
down to the nose of the nailer/stapler.
5. push the magazine toward the nose of
the nailer/stapler until the catch lever
locks.
6. reload the nailer when the magazine
sight window ( figure 4) shows the nail
or staple level is low. the sight window
shows up to approximately 50 nails or
staples loaded.
Catch Lever
pusher
pusher
sight Window
Magazine
