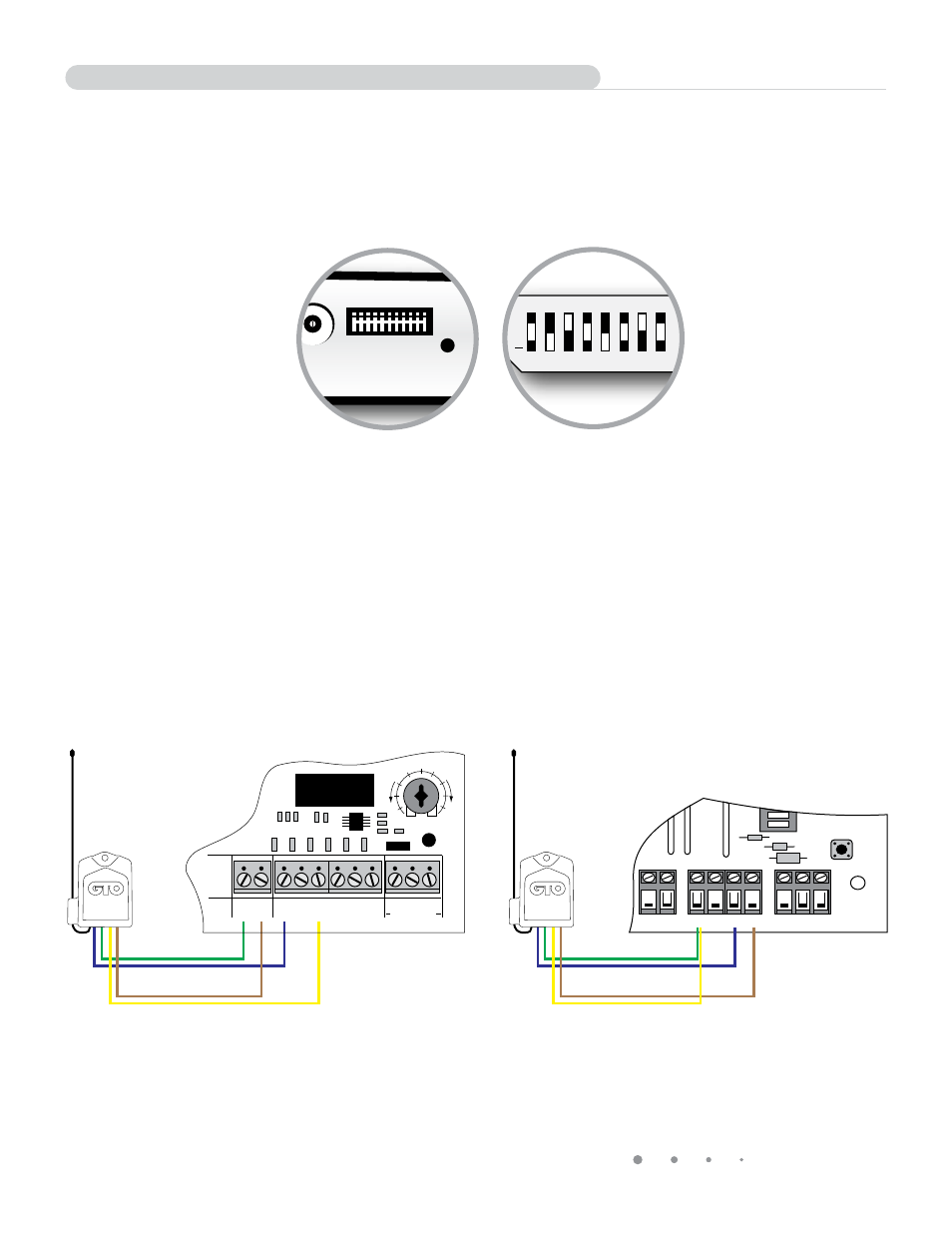

Programming the Exit Sensor’s Transmitter Code
Before use, the receiver needs to “learn” the code transmitted by the wireless exit sensor. This simple procedure
takes only a few minutes.
• Gen 3 (blue board) instructions
Set the 9 Dip Switches in the Transmitter Module to the same settings as the 9 Dip Switches in the
GTO Remote Transmitter. The Gen 3 (blue board) will automatically respond to the wireless exit sensor’s
transmission as a free exit or open only command.
• For operators WITHOUT the Gen 3 (blue board)
Disconnect the red, black and green wires from the original receiver at the receiver terminals on the gate
opener’s circuit board. It will no longer be needed.
Wire Channel 1 (green and blue wires) on the RB709U-NB to the Cycle and COM accessory terminals on the
gate opener. Hold down the gate opener’s remote transmitter button and the Channel 1 button on the RB709U-
NB at the same time. The red light on the RB709U-NB should blink once in 1 to 2 seconds to indicate that the
receiver has learned the code from the exit sensor.
Wire Channel 2 (yellow and brown wires) on the RB709U-NB to the Exit and COM terminals on the gate opener.
Install the two AA batteries in the wireless exit sensor’s transmitter module. This will immediately start 30 seconds
of transmissions from the wireless exit sensor. While the exit sensor is transmitting, hold down the Channel 2
button on the RB709U-NB. The red light on the RB709U-NB should blink once in 1 to 2 seconds to indicate that
the receiver has learned the code from the exit sensor.
