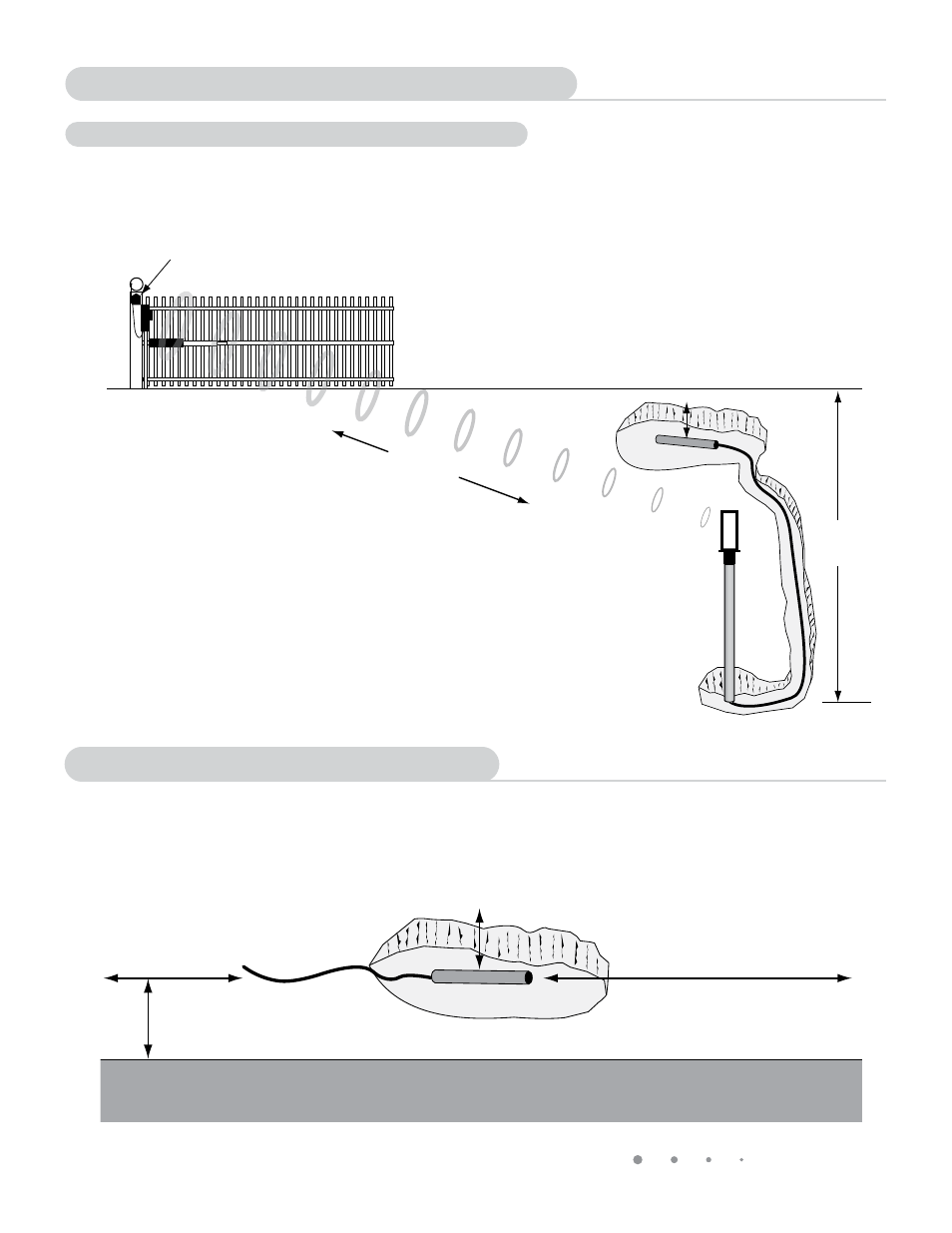

Install the Vehicle Sensor
DO NOT fill the hole until final testing is complete.
• Dig a small pit about 10 - 12 inches deep close to the edge of your driveway. The hole should allow you to lay
the Vehicle Sensor flat in the bottom with the length of the Vehicle Sensor parallel to the direction of the driveway.
•
NOTE: For GTO Receiver #AQ201-NB (Grey
in Color) R4500 Wireless Wand is “plug and
play” and will work. For GTO Receiver #A2Q201
(Black) and all other model receivers, enclosed
RB709U-NB is required.
• After laying the vehicle sensor in the hole adjacent
to the driveway. Run the signal cable to the
transmitter module in the narrow trench.
Do not fill the hole or trench until satisfactory
operation is verified.
Vehicle Sensor
10-12 inch
deep pit
Placed 2 ft maximum
from edge of driveway
Vehicle Sensor should
lay parallel to driveway
D
R
I
V
E
W
A
Y
Transmitter Module Placement
Determining Transmitter Module Location
• Choose a location for the transmitter module that is far enough from the driveway edge that vehicles are
unlikely to hit it. Fifteen feet of wire is included to allow the transmitter to be 12 to 15 feet from the driveway.
To test the chosen location to be sure it is free from obstructions or other interference, you can use your
remote control transmitter at the same height as the transmitter module to activate the gate.
