Front-panel components – Gateway Unmanaged Ethernet Switch User Manual
Page 7
4
Chapter 1: Introduction
www.gateway.com
■
Supports 2M bits data buffer per device.
■
Front-panel indicator LEDs.
Front-panel components
The front panels of the switches consist of LED indicators and fast Ethernet or
gigabit Ethernet ports. The number of LEDs, and the number and speed of the
ports, depends on the switch model selected.
Comprehensive LED indicators display the status of the switches and the
network.

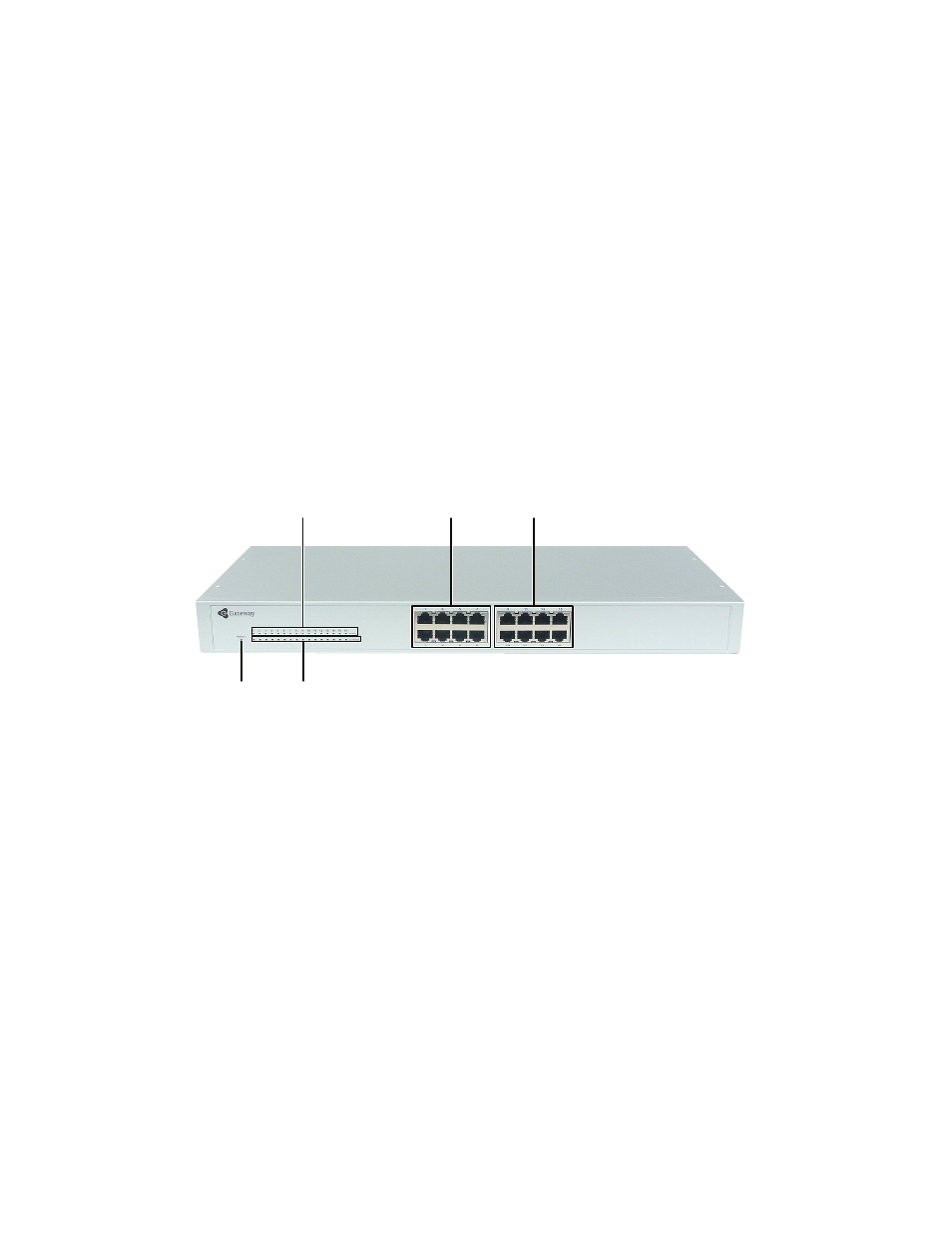

Gateway 7201-16 (shown) and 7201-24 fast Ethernet switches
Speed LEDs
Link/Act
LEDs
Power
LED
Ports 1-8
Ports 9-16
Fast Ethernet
