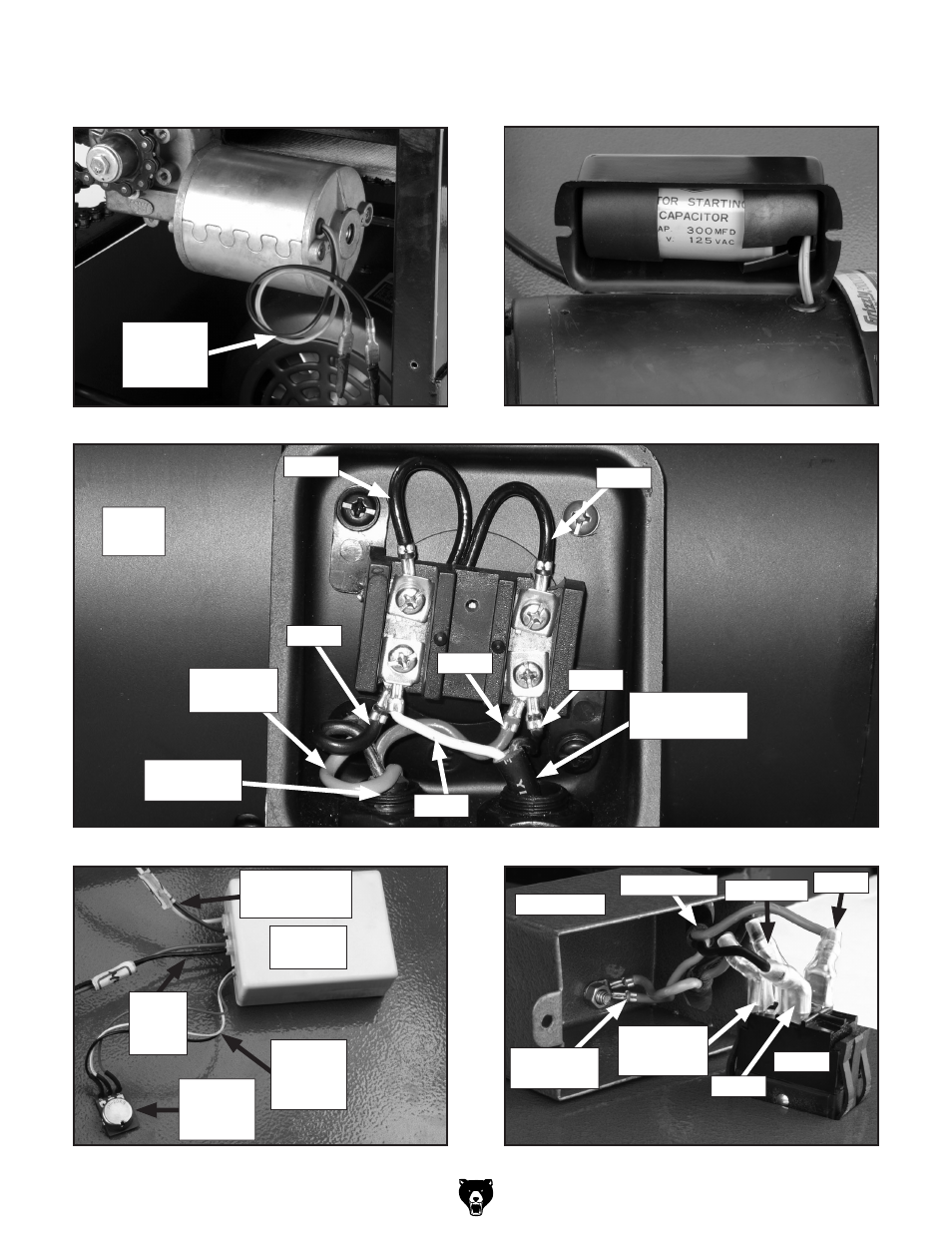

Electrical Components
Variable Speed Control, Circuit Board
Feed Motor
Switch Box Wiring
Motor Wiring
Capacitor
Variable
Speed
Wires
Circuit
Board
Feed
Motor
Wires
Drum Motor
Wires
Feed
Motor
Wires
Switch Box
Switch
Red
(Neutral)
Red
Drum
Motor
Red
Black (L1)
Variable
Speed
Control
Black
Ground
(Green)
Black
Power Cord
Black
White
Black
Wires from
Switch
Ground
(Green)
Wires from
Circuit Board
Black
