1 Product Specifications

1.1 Intended use

The Glow-worm Flurocyl 00 l, Flurocyl 50 l and Flurocyl 300

l are unvented, indirectly heated hot water cylinders for use

with solar systems and boilers for the provision of domestic

hot water.
IMPORTANT: Risk of damage! The appliances may only

be used to heat up potable water. Damage to the appliance

due to corrosion cannot be excluded if the water does not

correspond to the specifications of the water ordinance.
Any other use or extended use is considered to be improper.

The manufacturer/supplier is not liable for any resulting

damage.
Intended use includes the observance of the instructions and

the adherence to the servicing requirements.

1.2 Data badge

The data badge has been applied to the top of the solar

cylinder by the manufacturer.

1.3 Safety devices

The Flurocyl solar cylinder has been provided with all safety

and control devices suitable for operation as part of an

unvented domestic hot water supply system.
Temperature and pressure relief valve (95°C, 7 bar)
Pressure limiting valve (3.5 bar) with line strainer
Expansion relief valve (one port valve, 6.0 bar)
Thermal cut out set to 90°C, connected to the solar pump in

order to isolate this heat source in the event of failure of the

solar control.
Thermal cut out of the immersion heater
Thermal cut out set to 90°C, connected to the motorised

port valve, in order to isolate the primary heat source in the

event of failure of the domestic water thermostat.

1.4 Safety regulations

This product has been checked for adherence to the building

regulations for unvented hot water cylinder systems. It may

not be changed or modified in any way whatsoever.
It should be installed by a qualified specialist, who should

observe the applicable regulations of the local authorities, the

building regulations, the building regulations for Scotland, the

building regulations for Northern Ireland and the directives of

the local water supply companies. Only original spare parts

may be used for the replacement of parts.

1.5 Contents

Check the contents of the pack, see diagram ..
Make sure the cylinder is stored in an upright position in a dry

environment prior to its installation.

1.6 Transport

A cylinder carrying handle is supplied to make the transport to

the installation site easier.
Fasten the carrying handle to the hot water outlet connection

of the solar cylinder.

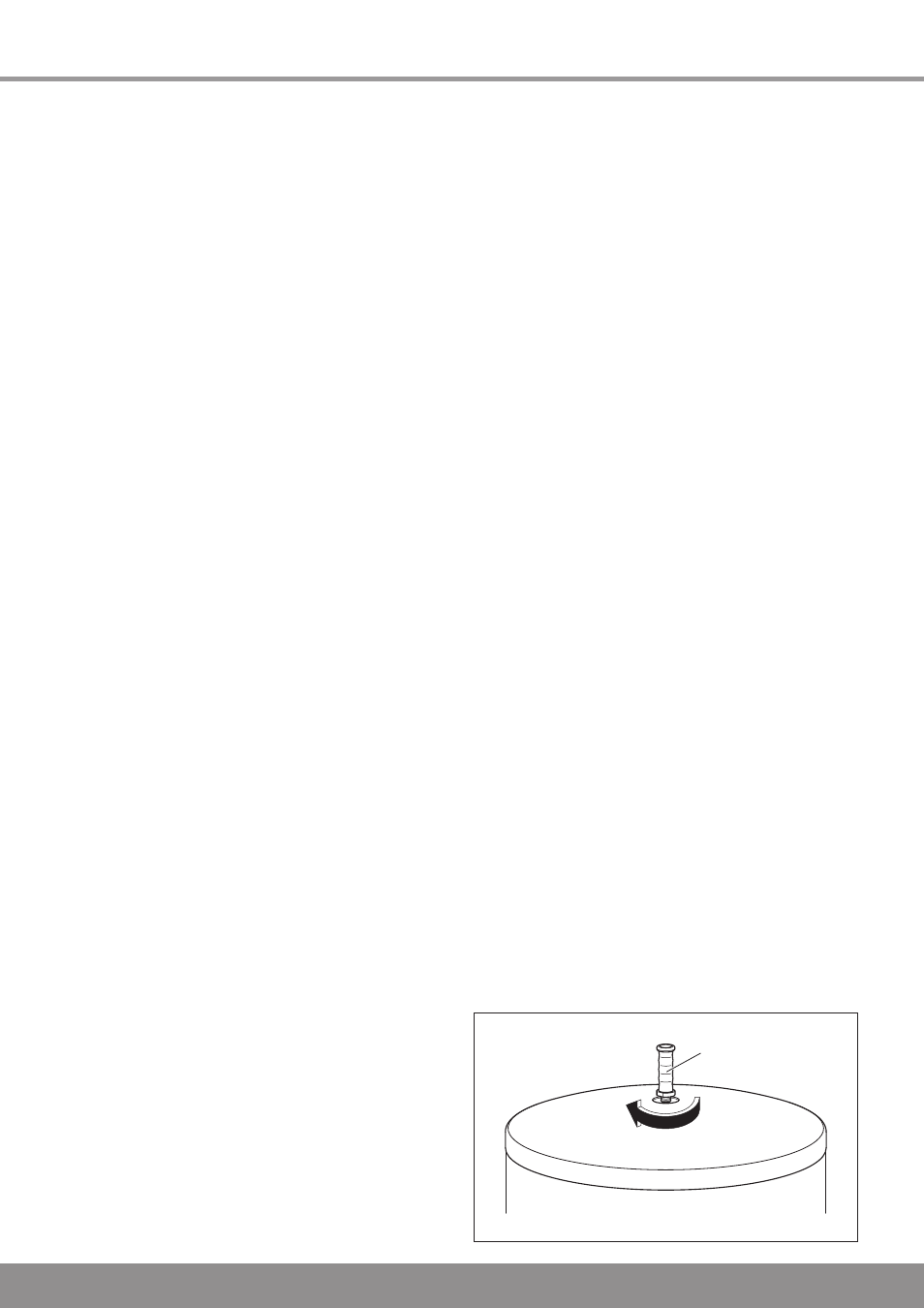

CARRYING

HANDLE

4

80

Diagram .4

Carrier handle

1.7 Solar Cylinder Charicteristics

Flurocyl solar cylinders are available in three sizes: 00, 50

and 300 litres. The containers are made of stainless steel

and insulated with EPS.The cylinders are equipped with all

necessary cold and hot water control devices and a motorised

port valve.
The Flurocyl cylinders are operated at the pressure of the

water supply pipe and do not need a cold water tank for their

supply. They have hot and cold water connections of mm

diameter. A cold water supply of appropriate pressure and

flow rate is required to operate the solar cylinder ideally, refer

to section .6.

Temperature control

The solar water heating control thermostat is part of the solar

control with sensor attached to the Flurocyl solar cylinder.
The cylinder includes the boiler and imersion heater control

thermostats that are factory fitted and set.
A themostatic mixing valve must be fitted to the outlet of the

cylinder and must be adjusted to the desired domestic hot

water temperature.
The cylinder also includes the solar, boiler and immersion

heater thermal cut outs that are factory fitted and set.
The solar pump must be connected to the solar control via

the solar thermal cut out (TCO), It ensures the solar pump is

switched off if the hot water temperature in the cylinder rises

above 90°C.

Immersion heater

The Flurocyl solar cylinders are equipped with an additional

immersion heater of 3 kW, including the control thermostat

and thermal cut out. The immersion heater is situated behind

the front plate.
NOTE: In the event of a replacement, only the right immersion

heater equipped with a thermal cut out fur overheating

protection may be used.
