20

4.1 FUSES

The 15-amp fuse on the generator panel protects the
DC control circuit against overload (Figure 4.1). This
fuse is wired in series with the battery output lead
to the panel. If this fuse element has melted open,
the engine will not be able to crank or start. Replace
this fuse using only an identical 15-amp replacement
fuse. To replace the fuse, push the fuse holder cap
down and rotate it counterclockwise. Whenever the
fuse is removed or replaced, the exercise timer needs
to be reset.

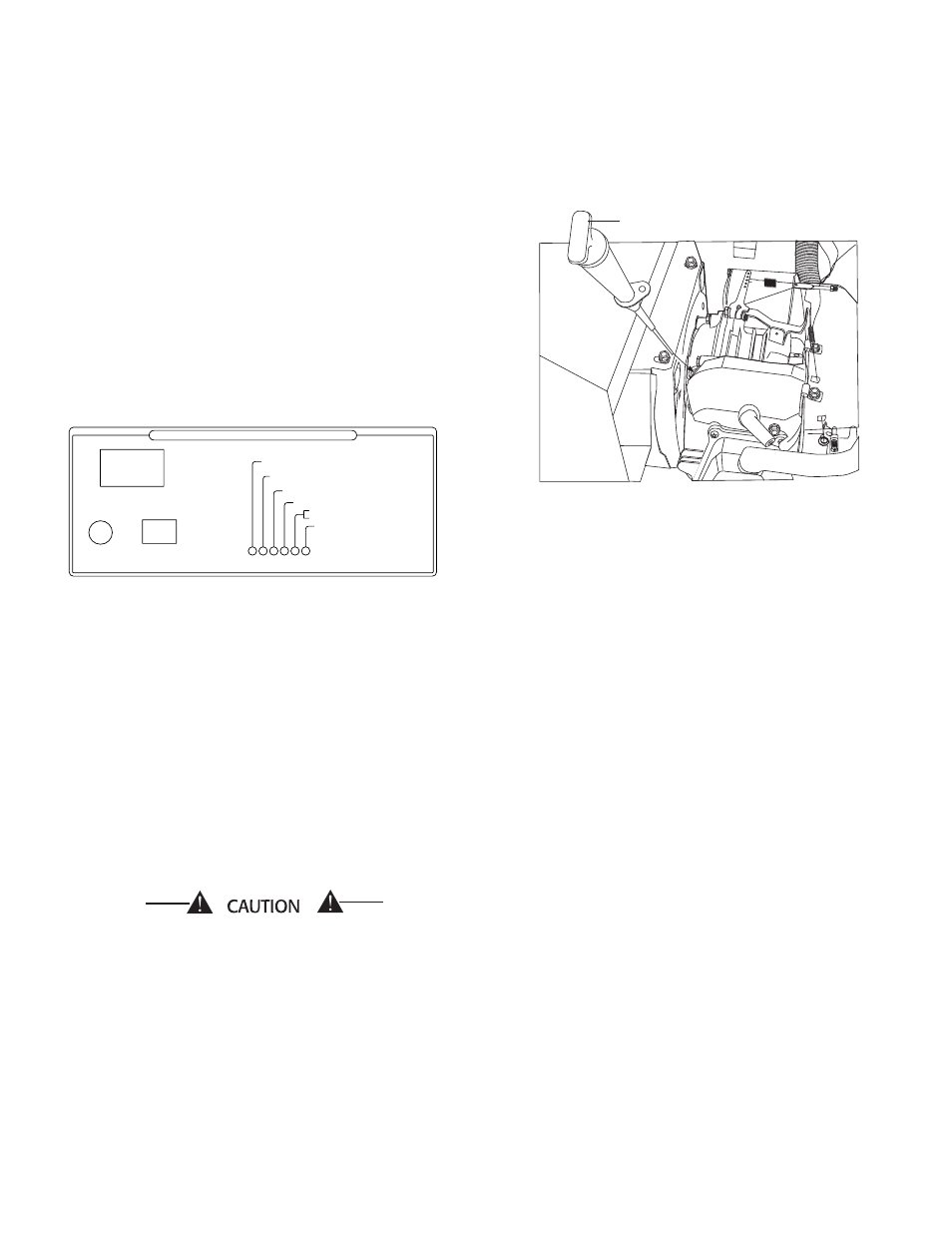

Figure 4.1 – Generator Control Panel

OFF

EXERCISE

SYSTEM FUSE

15A

ASSY: 0F8418/0F8419

SET

TIME

AUTO.

MAN.

NO UTILITY SENSE
5 FLASHING RED LEDS=
EXERCISER NOT SET

FLASHING GREEN LED=

SYSTEM SET

NO RPM SENSE IF FLASHING

OVER SPEED

CONTROL AND INFORMATION CENTER

LOW BATTERY

LOW OIL

HIGH TEMP

OVER CRANK

4.2

CHECKING THE ENGINE
OIL LEVEL

For oil capacities, see the Specifications section.
For engine oil recommendations, see the Engine Oil
Recommendations section. To check the engine oil
level, proceed as follows (Figures 4.2, 4.3 and 4.4):

1. Move the AUTO/OFF/ MANUAL switch to the OFF

position.

2. Remove the dipstick and wipe it dry with a clean

cloth.

3. Completely insert the dipstick; then, remove it

again. The oil level should be at the dipstick “Full”
mark. If necessary, add oil to the “Full” mark
only. DO NOT FILL ABOVE THE “FULL” MARK.

Never operate the engine with the oil level

below the “Add” mark on the dipstick. Doing
this could damage the engine.

4. Install

the

dipstick.

5. Reset the AUTO/OFF/MANUAL switch to its origi-

nal position.

Figure 4.2 — Oil Dipstick and Fill, 7kW

Oil Dipstick and Fill

Figure 4.3 — Oil Dipstick and Fill, 10kW
