Frymaster BK1814 Series Gas Fryers

Chapter 5: Filtration Operation

5-4

5.3.2 Assembling the Filter

1. Place the support grid in the bottom of

filter pan.

2. Put one filter paper sheet on top of the

support grid. Be sure the paper covers the
filter pan bottom and laps two inches onto
the pan wall.

3. Position the hold-down ring on top of the

filter paper. Ensure the hold-down ring
seals around the support grid. This
prevents sediment from getting into the
system.

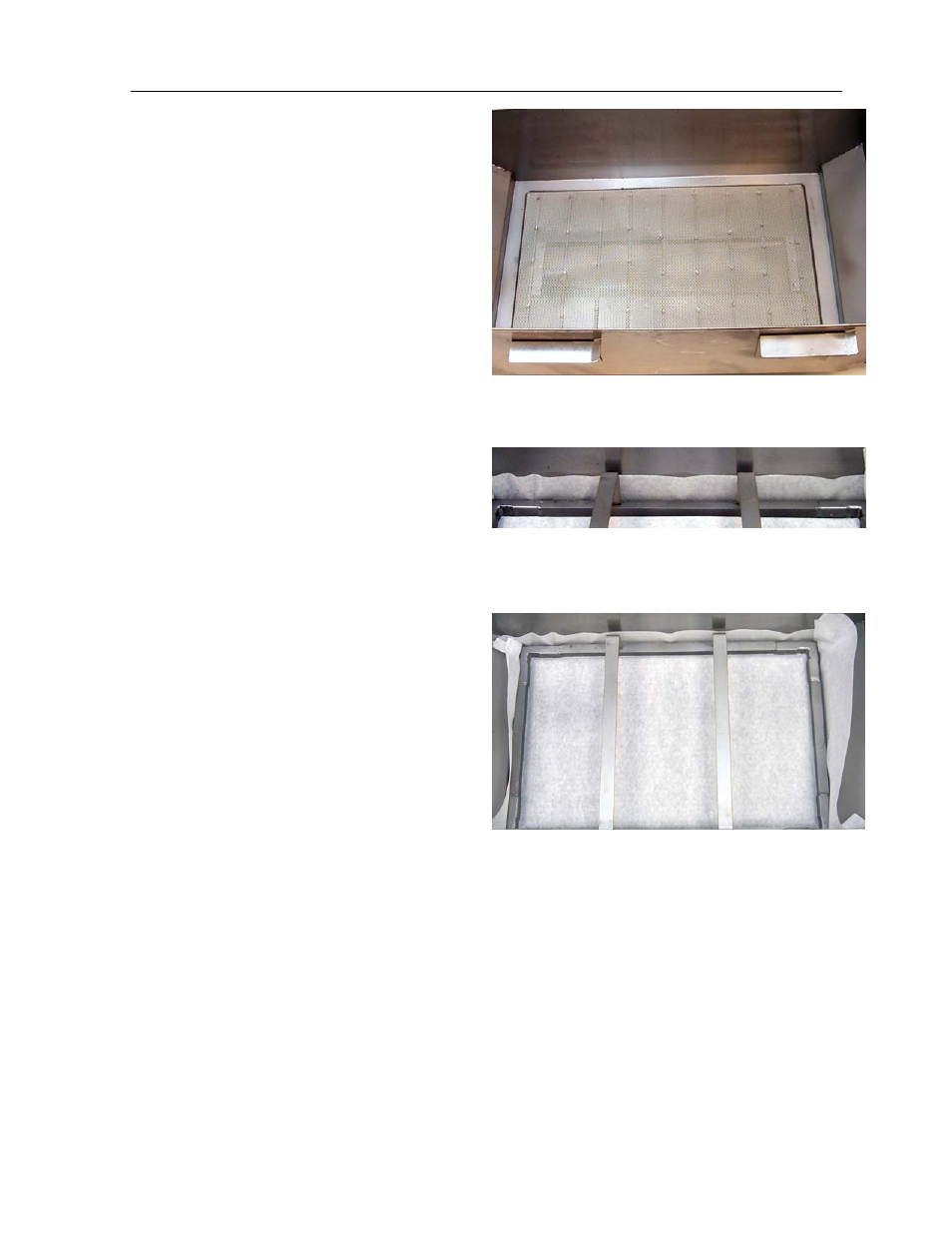

Support grid properly placed in filter pan.

Ensure filter paper overlaps two inches on all
sides and is evenly distributed under the hold-
down ring.

Hold-down ring positioned correctly over filter
paper in filter pan.
