Cable connection requirements

The requirements for cable connection between the IDD, host system, and power supply unit are
given in Figure 4.20. Recommended components for connection are listed in Table 4.2.

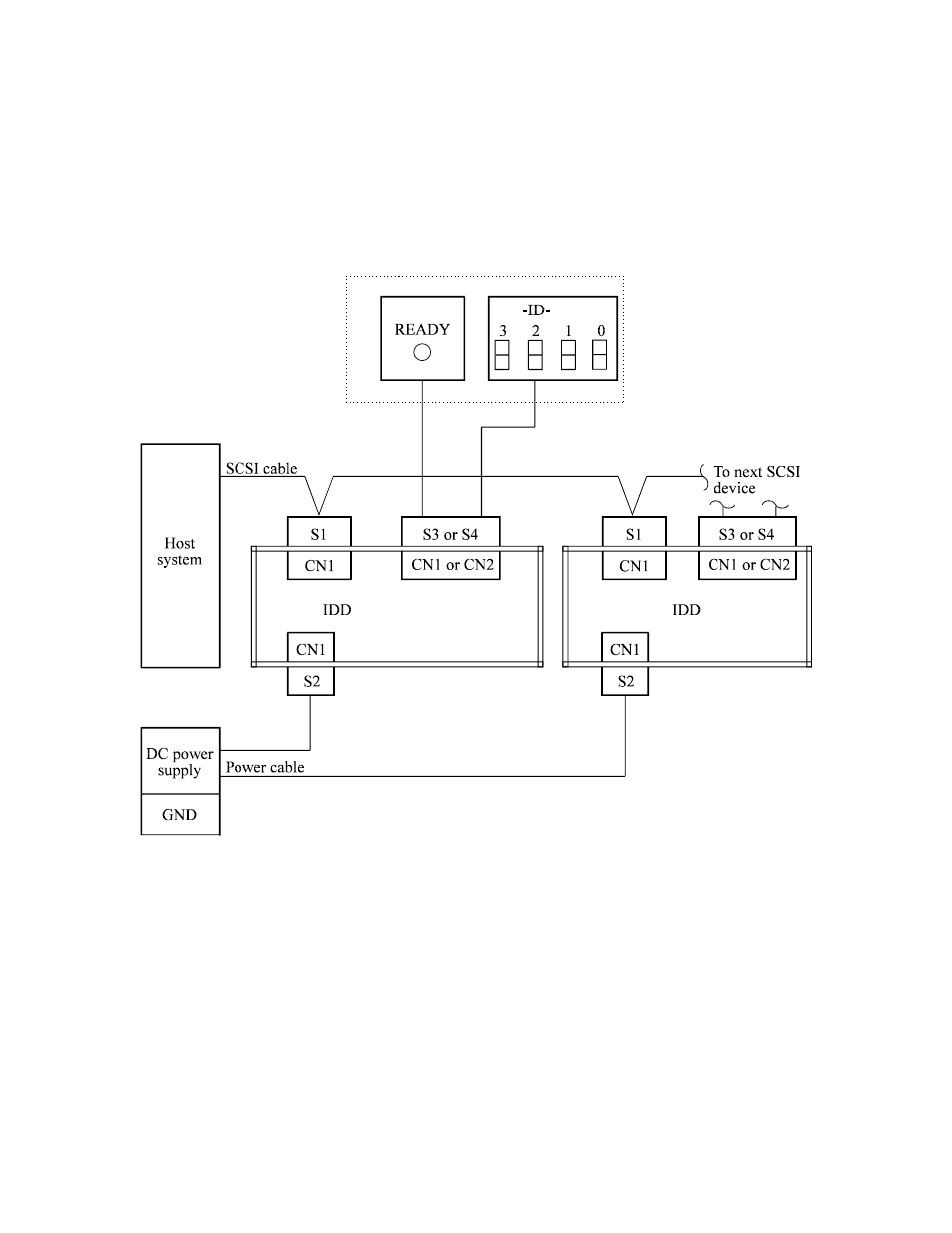

Figure 4.20 SCSI cables connection

External operator panel

(example)
