716 & 634 XTERRA
WATCH INSTRUCTIONS
FEATURES:
• CURRENT TIME (HR., MIN., &
SEC.) DAY AND DATE
• CHRONOGRAPH WITH SPLIT
AND LAP TIMER
• 100-LAPS CHRONOGRAPH
RECALL • TWO DAILY ALARMS,
TWO WEEKDAY ALARMS, TWO
DATE ALARMS & HOURLY
CHIME
• COUNTDOWN INTERVAL TIMER
WITH FIVE PROGRAMMABLE
SEGMENTS, AND COUNTDOWN
STOP TIMER.
• DUAL TIME
• OPTIONAL 24-HR. TIME
(MILITARY TIME)
• WATER RESISTANT TO 300 FT.
• NIGHT VISION™
ELECTROLUMINESCENT
BACKLIGHTING

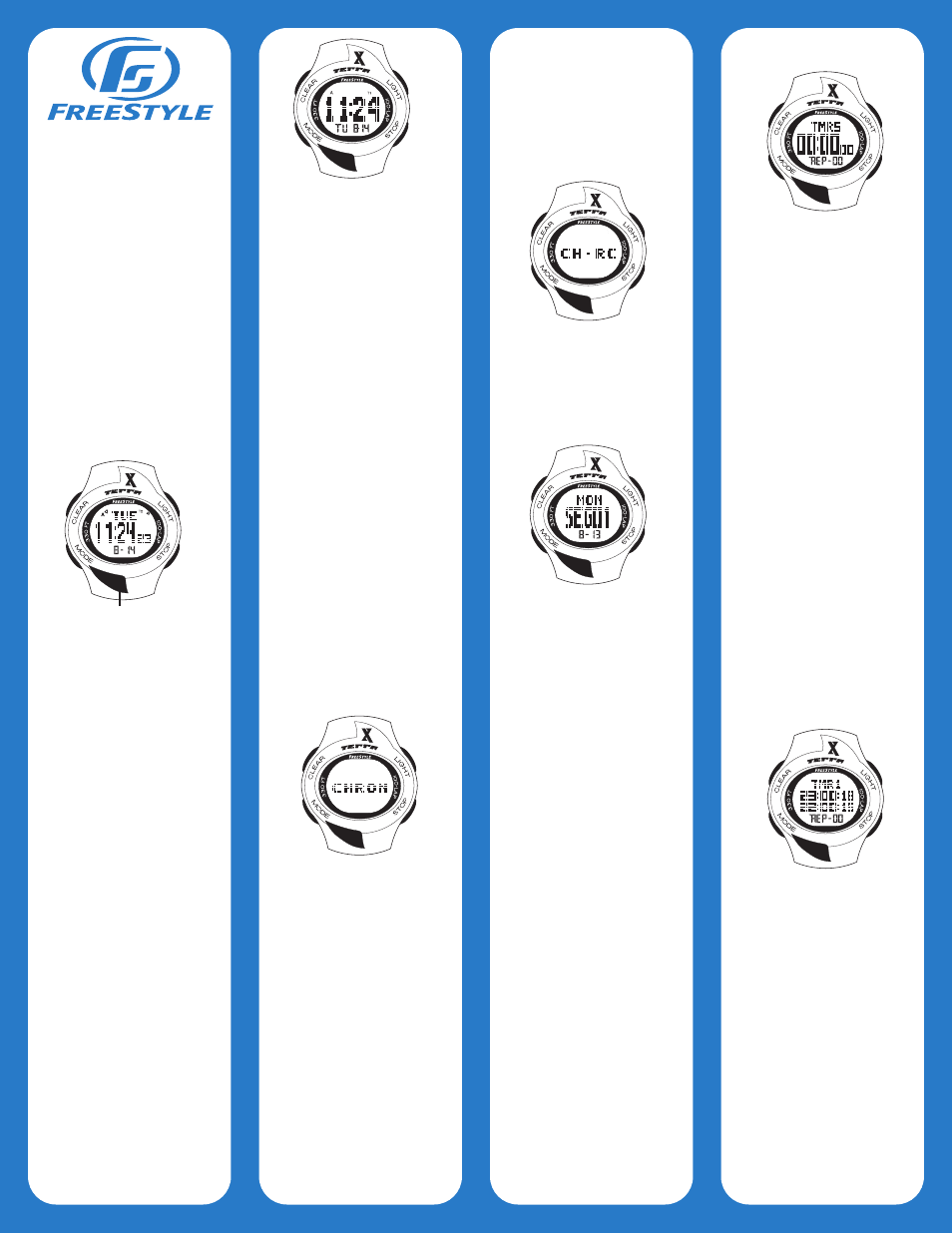

KEY REFERENCES
D - Clear B - Light
A - Stop C - Mode
E - Lap
NORMAL TIME MODE
(The term “mode” means the function
status of the watch.) “Normal time
mode” shows hours, minutes,
seconds, day, date. To set time, see
operating instructions on “How to
Set Normal Time.”
HOW TO SET NORMAL TIME,
DATE AND 24-HOUR FORMAT
Before setting time, you must be in
“normal time mode.” Press and hold
CLEAR button D while in “normal
time mode” to enter the “set time”
mode. Seconds digits will flash.
Press LAP button E to reset the
seconds digits to zero. If seconds
are greater than 30, the minutes
display will increase by one.
Press MODE button C to cycle
through the remaining digits to be
set. Advance flashing digits by
pressing LAP button E; hold for rapid
advance. Retard digits by pressing
STOP button A. The setting
sequence is: seconds, hours,
minutes, year, month, date, day,
12/24-hour format, and month-date
or date-month.
(Note: In the 12H mode, the “A” flag
indicates time is in a.m.; “P” flag
indicates time is in p.m.)
Press CLEAR button D to complete
setting at any time.
Press LAP button E to change
digits to larger format.
message “FULL” will be displayed,
and no additional lap times can be
recorded.
HOW TO RECALL LAP TIMES
From “normal time mode”, enter the
“recall mode” by pressing MODE
button C twice. Mode prompt
“CH-RC” will be displayed for one
second.
Segment one, and the day and date
of segment one will flash
momentarily, and then the first lap
time of segment one will be
displayed.
Press STOP button A to select
recorded segment of choice.
Once a segment is selected, press
LAP button E to view the contents
of that specific segment. The display
will show the lap number on the top
row, the lap time on the middle row
and the total elapsed time will
appear on the bottom row.
Press LAP button E to advance
through the individual laps of that
segment. After viewing the last lap
of that segment, press STOP button
A to view the next segment.
TO CLEAR THE MEMORY
While in the “recall mode”, press
and hold CLEAR button D, (CLR-
HOLD will be displayed), to clear
the segment that was last viewed.
To clear all stored segments, press
and hold CLEAR button D for six
seconds; (CLR-HOLD-ALL will be
displayed), and then “NO DATA” will
be displayed.
HOW TO SET AND OPERATE THE
COUNTDOWN TIMER
From “normal time mode”, press the
MODE button C three times to enter
the “timer mode”. Mode prompt
“TIMER” will appear for one second.
The timer has two different timing
modes, and a range from one
second to 23 hours, 59 minutes, 59
seconds.
a. Countdown interval timer with five
programmable segments
(TMR1-5)
b. Countdown stop (TMR) - will
countdown from preset time and
stop.
Press STOP button A to select
countdown timer choice.
Press and hold CLEAR button D to
enter the setting mode; seconds
digits will flash. Press LAP button
E to increase the flashing digit, press
STOP button A to retard the flashing
digit. Press MODE button C to
advance from seconds, to minutes,
to hours. Once the hours digits are
set, interval timer 1-5 digit will flash.
Press LAP button E to select the
specific interval timer.
Press CLEAR button D to complete
setting of each individual interval
timer. Continue with this procedure
until all five interval timers are set.
NOTE: It is not necessary to set all
five interval timers. For example, if
interval timer #3 is set to all zeroes,
then the timer will skip to interval
timer #4. The countdown-stop timer
is set the same way as the
interval timer.
Once all desired timers are set,
press CLEAR button D to exit the
setting mode. The timer is now ready
to use.
Press LAP button E to start the
timer. Press LAP button E again to
change display format to indicate
preset countdown time on the upper
middle row, and time counting down
on the lower middle row. Press
STOP button A to stop the
countdown timer. Press CLEAR
button D to reset timer to preset
time.
NOTE: While using the interval
timer, the number of completed
interval cycles will be indicated on
the lower row of the display
(REP-00).
HOW TO OPERATE THE ALARM
The Xterra™ has an hourly chime
and six different alarms: two daily
alarms (AL-1 & AL-2), two weekday
alarms (AL-3 & AL-4); and two date
alarms (AL-5 & AL-6), which can be
set in either normal time or dual
time.
Press MODE button C four times
while in normal time mode to enter
the alarm mode. Mode prompt
“ALARM” will be displayed for one
second.
HOW TO SET AND VIEW
DUAL TIME
From “normal time mode”, press
and hold STOP button A for three
seconds. “T2 “ will appear in the
upper right corner of the display. To
set dual time, follow the same
procedure used to set normal time,
as indicated above. To return to
normal time mode, press and hold
STOP button A for three seconds.
“T1” will appear on the upper right
corner of the display. To view dual
time from normal time mode, simply
press STOP button A momentarily.
HOW TO OPERATE THE
CHRONOGRAPH/STOPWATCH
The chronograph stores lap times
in segment form. A segment is a
group of laps (up to 100) recorded
during a single run. Every time the
chronograph is used, the lap times
for that particular segment are
automatically recorded into memory
(unless memory is full), along with
a segment number and the date.
The chronograph will record a
maximum interval of 23 hours, 59
minutes and 59 seconds, and has
a resolution of 1/100 second for
intervals less than one hour.
To enter the “chronograph mode,”
press MODE button C once from
“normal time mode.”
Mode prompt “CHRON” will be
displayed for one second.
To start the chronograph, press LAP
button E. To use the lap time feature,
press LAP button E while the
chronograph is running. The display
will pause for a few seconds, then
momentarily show the lap number
on the top row, the current lap time
on the middle row, and the total
elapsed time on the bottom row.
The chronograph will continue
counting.
When the timing session is
complete, press STOP button A to
stop the chronograph. Press and
hold STOP button A again, and the
number of available laps will appear
on the display (CHR-FREE 1-100).
Press and hold CLEAR button D
for four seconds to reset the
chronograph to zero. The lap times
of this session are automatically
stored in memory (unless memory
is full). When memory is full, the
D B
C A
E
