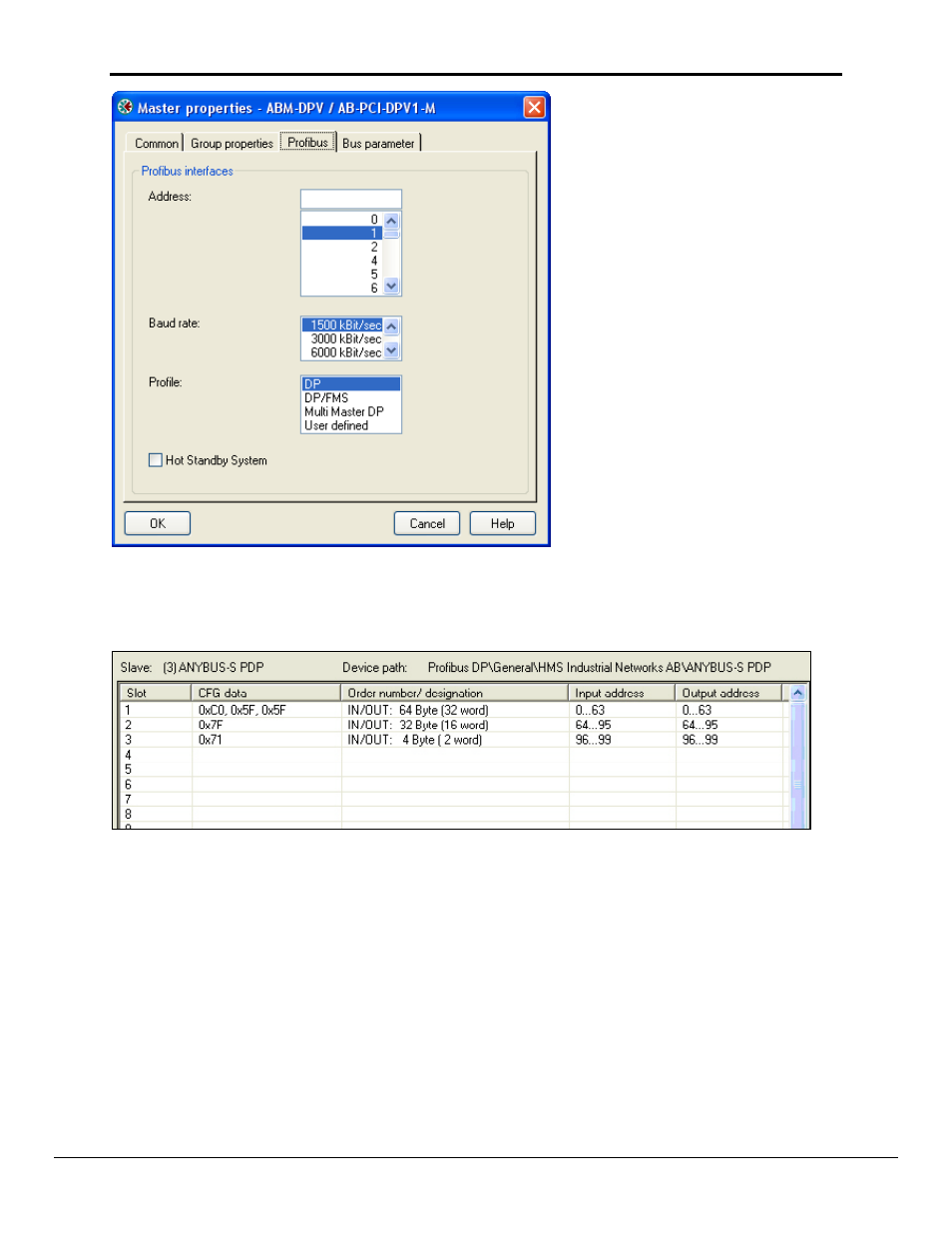

Select the first slave device, right-click on the Slot 1 line and choose Module selection. Now add I/O modules up to
the total number of bytes or words that will be transferred with this Slave as set up in the config.csv file. For
Example, for the Map Descriptor for Slave1 using 50 Words In and Out, you would choose the following modules:
Continue selecting other Slaves and adding modules for them as well.
Important Note: Changing of Input and Output Addresses are not allowed. All addresses must be contiguous for
the Profibus to work correctly.
Select Online-> Driver selection and on the serial Tab, choose the serial port on the PC connected to the X30 by
clicking on Configure-> Configure path.
