93
Changing the Initial setting (SETUP mode)
SETUP
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
SETUP
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
SETUP
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI
SETUP
DRIVE
AUTO A.PUNCH
SYNC OUT
CLK SCSI

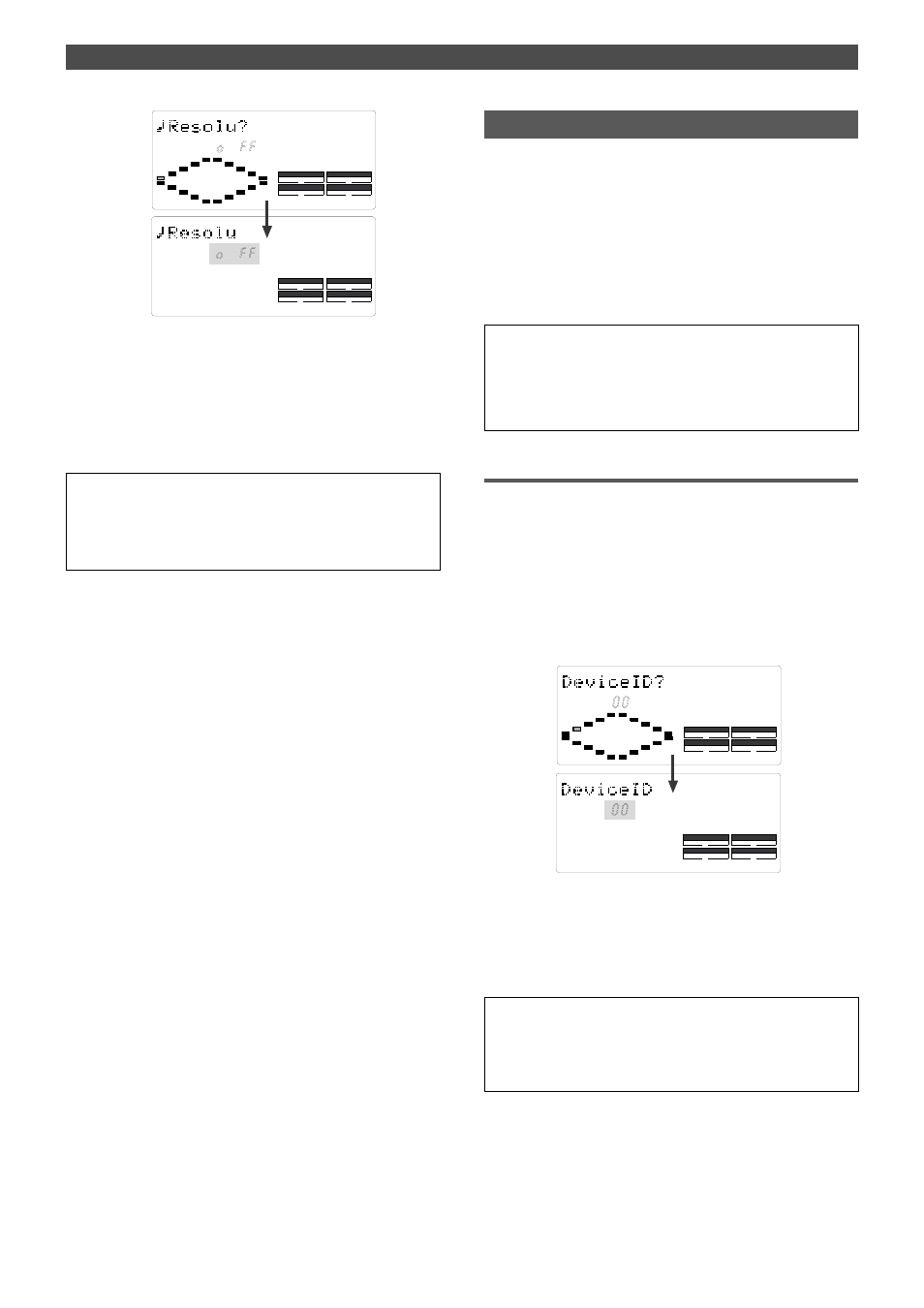

3. Use the JOG dial to turn the mode on or off.
When you turn the JOG dial clockwise and counter-clock
wise, [on] and [oFF] flash alternately.
Selecting [on] turns BAR/BEAT resolution mode on, and
selecting [oFF] turns BAR/BEAT resolution mode off.
4. Press the EXECUTE/YES key.
The selected mode setting is stored, and “?” flashes.
To cancel the operation, or to restore the setting obtained prior to
the EXECUTE/YES key press, press the STOP button or the EXIT/
NO key. Each time you press one of these keys, the FD-4 returns to
the previous hierarchy level of the menu, and finally exits SETUP
mode and displays the previous Time Base.
Setting the MIDI device number
The “Setting the MIDI device number” menu enables you
to set the FD-4 device ID number required to control the
unit from a sequence software using MMC (MIDI Machine
Control) or FEX (Fostex System Exclusive Message).
The transmit device ID links to this setting.
You can set the device ID from 00 to 99.
However, if the device ID number of the message the FD-4
receives is [7F], the FD-4 will recognizes it to perform the
corresponding operation, regardless of its device ID set-
ting.
• Initial setting: 00
• Device ID: 00–99
* This setting is shared by all Programs in the same disk.
* The settings cannot be saved and loaded as part of the song data.
* The settings are maintained after you turn off the power to the unit.
Setting the MIDI device ID
1. While the FD-4 is stopped, press the SETUP key to enter
SETUP mode.
2. Turn the JOG dial to select [Device ID?] (“?” flashes), then
press the EXECUTE/YES key.
The current MIDI device ID number appears on the
display.
Pressing the EXECUTE/YES key turns off the flashing [?]
character, and the MIDI device ID number flashes.
With the initial setting, [00] flashes as shown below.
3. Use the JOG dial to set the desired MIDI device ID number.
Turning the JOG dial clockwise increments the value, and
turning it counter-clockwise decrements the value.
4. Press the EXECUTE/YES key.
The MIDI device ID number is stored, and “?” flashes.
To cancel the operation, or to restore the setting obtained prior to
the EXECUTE/YES key press, press the STOP button or the EXIT/
NO key. Each time you press one of these keys, the FD-4 returns to
the previous hierarchy level of the menu, and finally exits SETUP
mode and displays the previous Time Base.
