6
TABLE OF CONTENTS
A
H3427pr-0922
6

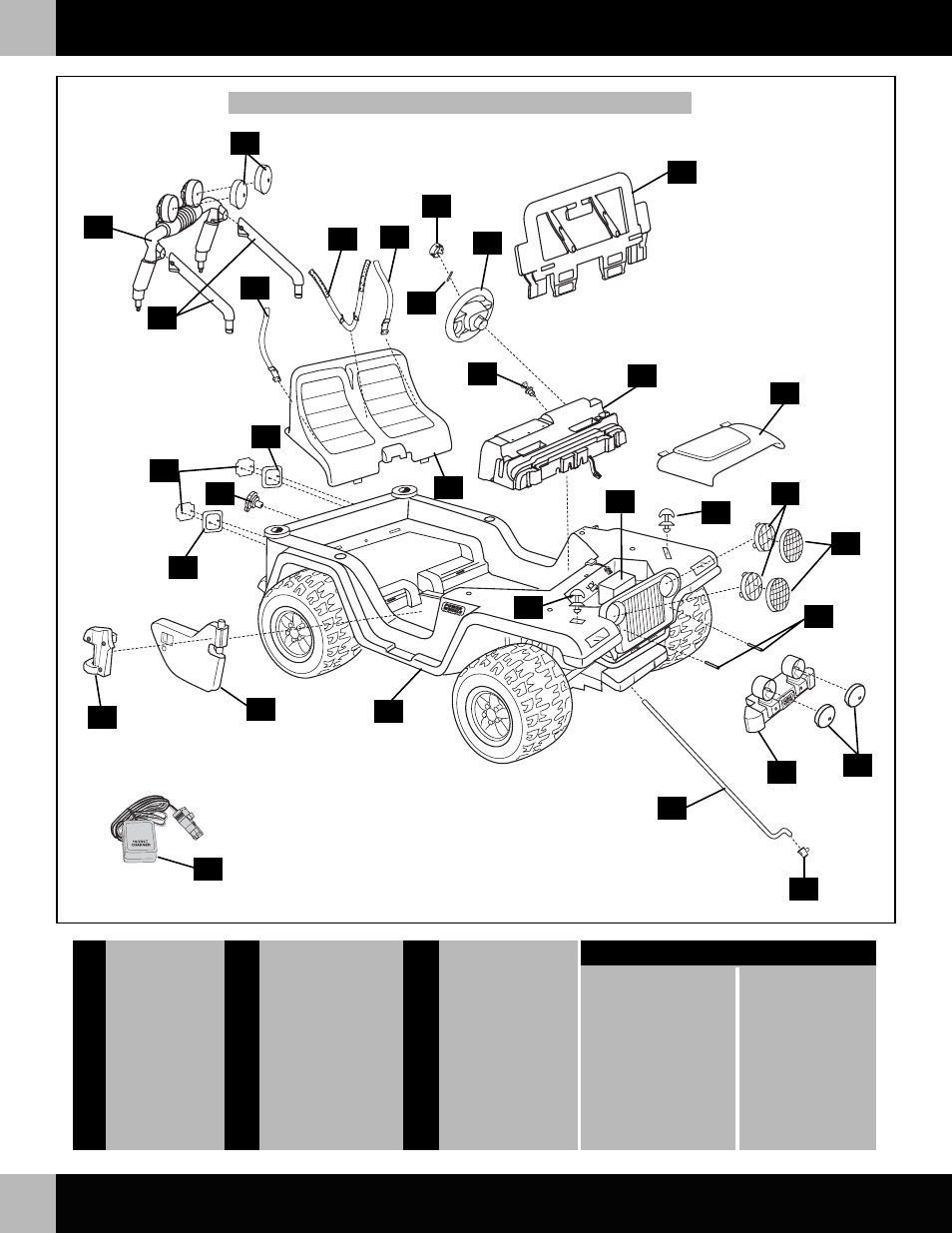

PARTS PICTURE
D
5
21
23
19
22
18
8
7
8
14
6 11
15
17
14
9
1 24
25
2
20
12
13
3
4
3
Note: Some parts shown are assembled on both sides of the vehicle.
16
23
10
1 Vehicle
2
Steering Column
3
Hood Latch - 2
4
12 Volt Battery
5 12 Volt Charger
6
Key Assembly
7
Taillight Lens - 2
8 Taillight Housing - 2
9 Hood
10 Cap
11 Dash
12
Headlight Lens - 2
13
Lens Guard - 2
14
Short Seat Belt Strap - 2
15 Windshield
16
Brush Guard
17
Steering Wheel
18 Seat
19 Long Seat Belt Strap
20
Spacer - 2
#8 x 1" Screw - 4
#10 x
3 /
4
" Screw - 22
#8 x 3" Screw - 2
#8-32 x 1
5 /
8
" Screw - 2
21 Sport Bar
22
Sport Bar Support
23
Light Cover - 4
24
Door - 2
25 Door Hinge - 2
26 5 /
32
" x 1 1 /
2
" Pin
27
Steering Wheel Cap
28 Steering Column Cap
#8 x 3 /
4
" Screw - 1
#8 Acorn Lock Nut - 2
Label Sheet
Parts Not Shown
26
27
28
