ASSEMBLY
F
H3427pr-0922
8

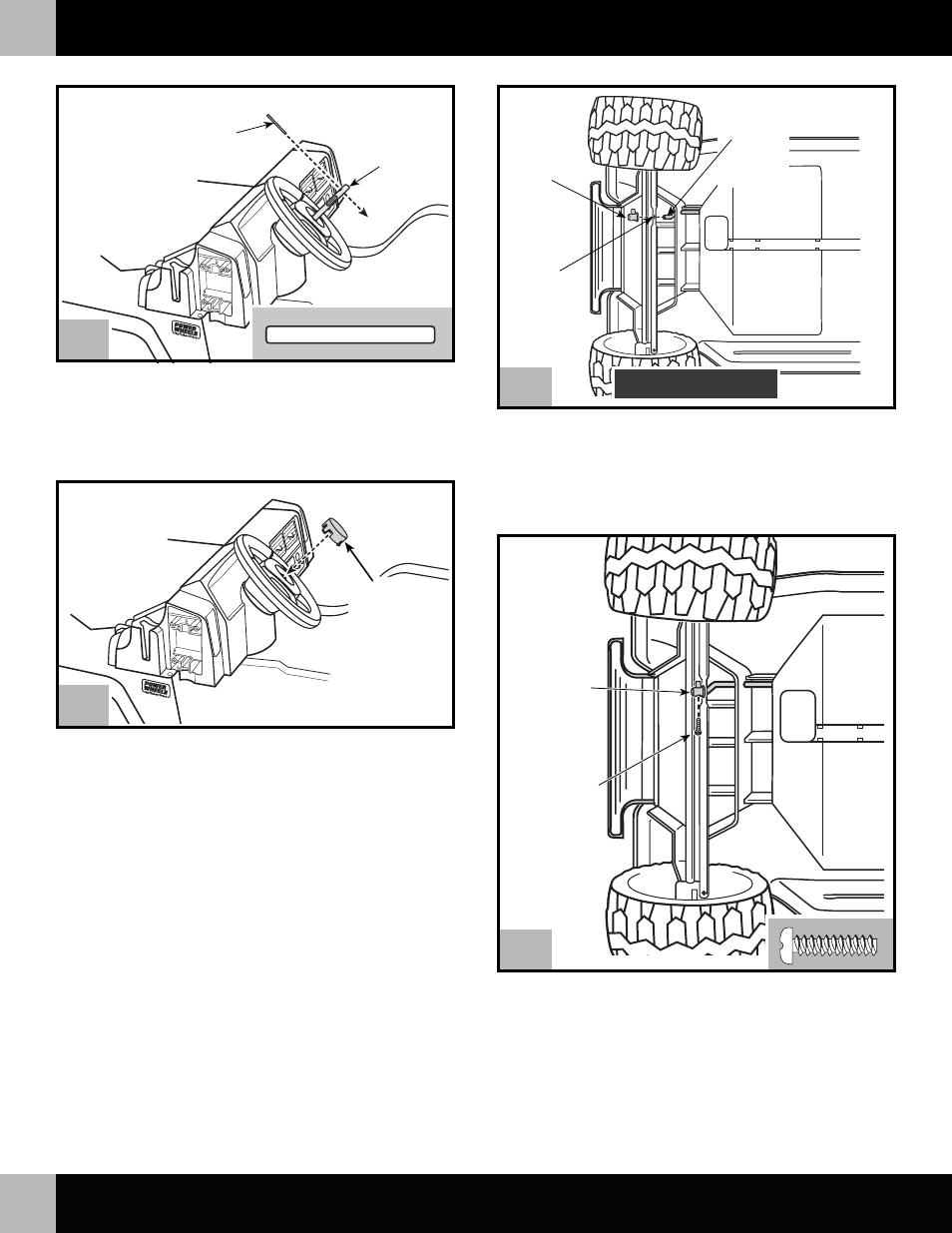

• Turn the vehicle on its side.
• Insert the end of the steering column through the hole in the
steering rod.
• Fit the steering column cap onto the end of the steering column.
End of
Steering
Column
Steering
Rod Hole
Steering
Column Cap
9
• Insert a #8 x 3 /
4
" screw through the large opening in the steering
column cap and into the hole in the steering column. Tighten
the screw.
• Turn the vehicle upright.
Steering
Column Cap
#8 x 3 /
4
" Screw
• Insert and "snap" the steering wheel cap into the center of the
steering wheel.
• Insert the 5 /
32
" x 1 1 /
2
" pin through the hole in the end of the
steering column.
• Lower the steering column so that the pin fits inside the center of
the steering wheel.
6
End of
Steering
Column
5 /
32
" x 1 1 /
2
" Pin
7
Steering
Wheel
Cap
BOTTOM VIEW
